Elements

View:

UPW-Flow Series

UPW-Flow series filter cartridges utilize proprietary highly asymmetric polyethersulfone membrane to deliver a combination of high flow rate and high dirt holding capacity.

Absolute rated at > 99.9% efficiency with retention.

Manufactured in a class 1,000 clean room.

RoHS, FDA, Halal Certificated

Puris-Fine Series

PRS series filter cartridge
With 3 layers graded pore structure for general particle reduction applications

・ Type: Melt Blown Depth Filter
・ Media: Polypropylene Resin
・ Length: 10”~50”
・ Retention Rate: 0.5~100 μm
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated

Carbon-Clean-B Series

Carbon-Clean-B series filter cartridge
Activated carbon in rigid structure provides better strength and longer usage

・ Type: Activated Carbon Filter
・ Media: Bonded porous activated carbon with polypropylene binders
・ Length: 10”~40”
・ Retention Rate: 5 μm
・ Double Open End
・ RoHS, NSF42, NSF61, FDA, Halal Certificated

Superior-Fine Series

PCB series filter cartridge
High dirt holding capacity and consistent performance
Filtration efficiency > PRS series filter cartridge

・ Type: Melt Blown Depth Filter
・ Media: Advanced Polypropylene Resin
・ Length: 10”~50”
・ Retention Rate: 0.5~100 μm
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated

POLY-ADCT Series

PAT series filter cartridge
With 3 layers graded pore structure and polypropylene center core which enhances mechanical strength

・ Type: Melt Blown Depth Filter
・ Media Polypropylene Resin
・ Length: 10”~50”
・ Retention Rate: 0.5~100 μm
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated

Pleated-Flow C Series

Each PLTC series filter cartridge is produced with a continuous rigid center core which enhances structural strength of cartridge.

The cartridges are all polypropylene construction which provides wide chemical compatibility.

PLTC series filters utilize proprietary filter media with fixed pore construction to deliver highly consistent performance and resist dirt unloading at maximum differential pressure.

RoHS, FDA, Halal Certificated

Carbon-Clean-WS Series

Carbon-Clean-WS series filter cartridge
Combines the advantages of String Wound filter cartridge and Activated Carbon, and provides lower pressure drop

・ Type: Activated Carbon Filter
・ Media: carbon impregnated fibers protected by polypropylene string wound fiber
・ Length: 10”~40”
・ Retention Rate: 5 μm
・ Double Open End
・ Center Core in 304 Stainless Steel for high heat and viscosity resistant
・ RoHS, NSF42, NSF61, FDA, Halal Certificated

Pleated-Flow CA Series

Each PLTCA series filter cartridge is produced with a continuous rigid center core which enhances structural strength of cartridge.

The cartridges are all polypropylene construction which provides wide chemical compatibility.

PLTCA series filters utilize proprietary filter media with fixed pore construction to deliver highly consistent performance and resist dirt unloading at maximum differential pressure.

RoHS, FDA, Halal Certificated

Carbon-Clean-RC Series

Carbon-Clean-RC series filter cartridge
All materials are FDA listed for Food and Beverage contact

・ Type: Activated Carbon Filter
・ Media: powder activated carbon impregnated polyester
・ Length: 10”~40”
・ Retention Rate: 5 μm
・ Double Open End with elastic gaskets
・ Center Core in Polypropylene provides enhanced mechanical strength
・ RoHS, NSF42, NSF61, FDA, Halal Certificated

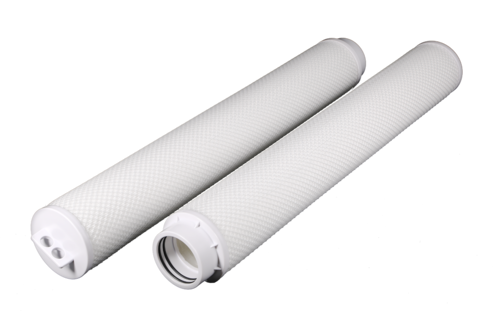

NHF High Flow Series

NHF series filter cartridge's high surface area and large diameter provides higher flow rate, service life, dirt holding capacity and lower maintenance/ disposal cost.

Its center core can resist higher differential pressure, and its double o-rings provide better sealing effect.

In addition, it provides optional polypropylene and micro glass fiber media, which can be applied to wide chemical compatibility.

RoHS, FDA, Halal Certificated

LHF High Flow Series

LHF series filter cartridge's high surface area and large diameter provide higher flow rate, service life, dirt holding capacity and lower maintenance/ disposal cost.

It has center core to resist higher differential pressure, and has twist-to-lock mechanism to provide easy and quick change out.

In addition, LHF series high flow filters provide a wide chemical compatibility and can be applied to various industrial applications.

RoHS, FDA, Halal Certificated

Bag-Flow F Series

Filtrafine Bag-Flow F series filter bag has high contaminant holding capacity.

Its broad range of proprietary media provides excellent filtration performance and great consistency.

It also offers plastic and metal rings for wide temperature compatibility.

Silicone oil free finish prevents craters to provide a better surface results.
