Advance Laboratory for Filtration

Filtration systems are a critical process in precision industries such as semiconductors, electronics manufacturing, petrochemicals, biotechnology and healthcare, as well as the food and beverage sector. These industries require highly advanced filtration systems to meet stringent purity standards. Our laboratory, established in accordance with ASTM and ISO testing standards, offers comprehensive filtration material and water quality analysis services. Additionally, we provide customized solutions for the development of filtration materials, tailored to international standards, ensuring enhanced product performance and service.

Inquiry & Contact
Email: yuchun.lin@filtrafine.com.tw

Filtration Media Testing

Equipment	Analysis & Measurem	Description
Scanning Electron Microscope (SEM)	Surface Image & Constructure Analysis of Solid Material	Obtain the surface inage of solid materails, and analyze the micro-construction, morphological patten, and dimension  Max Magnification: 20,000X  Only available for Dry & Solid samples Not available for samples with Low Volatility or Low Pyrolysis Temperature

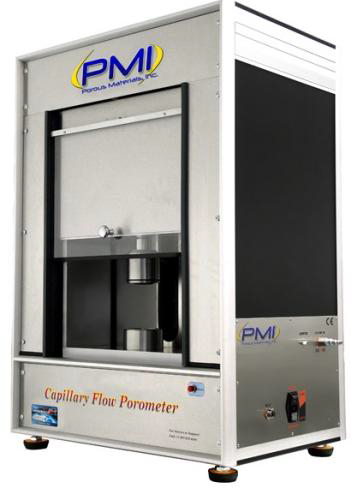

Capillary Flow Porometer, PMI	Pore Size Measurement of Filtration Media	Pore Size measurement of porous materials Maxizmum Pore Size, Average Pore Size, and Distribution Measurement Range: 0.02 um~400um Sample Size: at least 5 x 5 cm Measurement Aavailable on Film, Filter, Nonwoven Felt, Nano-Fiber, PES membrane, Hollow Fiber, and PTFE membrane Please contact with Sales Person for other materials.
FTIR-ATR	Comparison and Identification for unknown materials	Use infrared spectroscopy to analyze the characteristic peaks of solid samples, and compare the database data to identify the possible compound components of unknown materials and the content of a specific functional group. Wave Number: 4000 cm-1 ~ 600 cm-1 Only available on Solid Samples

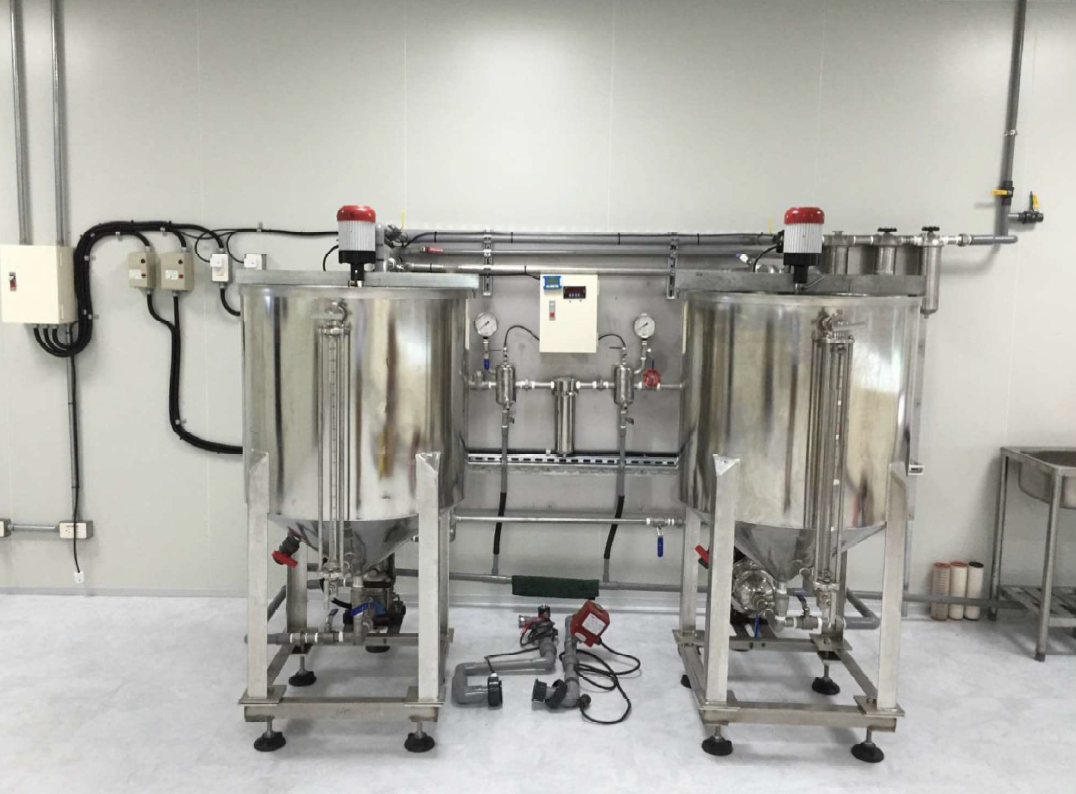

Filter Efficiency Testing Equipment	Flow Rate & Differential Pressure Measurement of Filter Cartridges	Refer to ISO 16889, this Filtration Function measurement helps to identify and chhose correct cartridges on various applications.   Flow Rate & Differential Pressure Measurement, Flow Rate: 2~10 GPM Filtration Effifiency Measurement, Particle Size: 0.5~20um Dirt Capacity Holding Measurement, Retention Rate: 0.5~10um
	Filtration Effifiency Measurement
	Dirt Capacity Holding Measurement

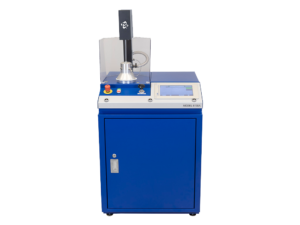

Automated Filter Tester	Filtration Efficiency and Differential Pressure Measurement on Melt Blown Media	Filtration Efficiency and Differential Pressure Measurement on Melt Blown Media Measurement based on NIOSH NaCl CMD Standard

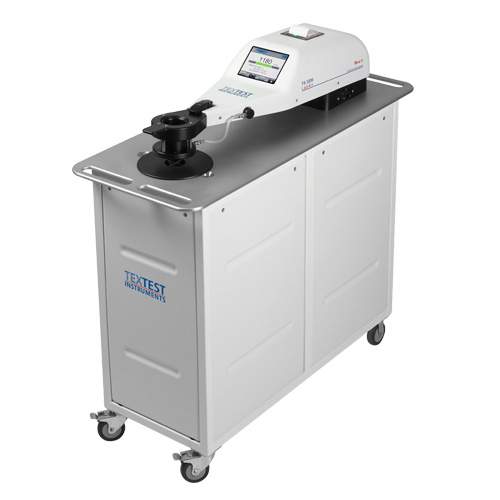

Air Permeability Tester	Measurement of Air Permeability on Nonwoven Felt	Detective Pressure Range：20-2500 pa Detective Area：20 / 38 cm²
Video-based Optical Contact Angle Mete	Hydrophobic Surface Contact Angle Measurement	Using optical imaging to measure the contact angle between water droplets and material surfaces The contact angle is proportional to the degree of hydrophobicity of the material The tested area of the sample must be kept clean

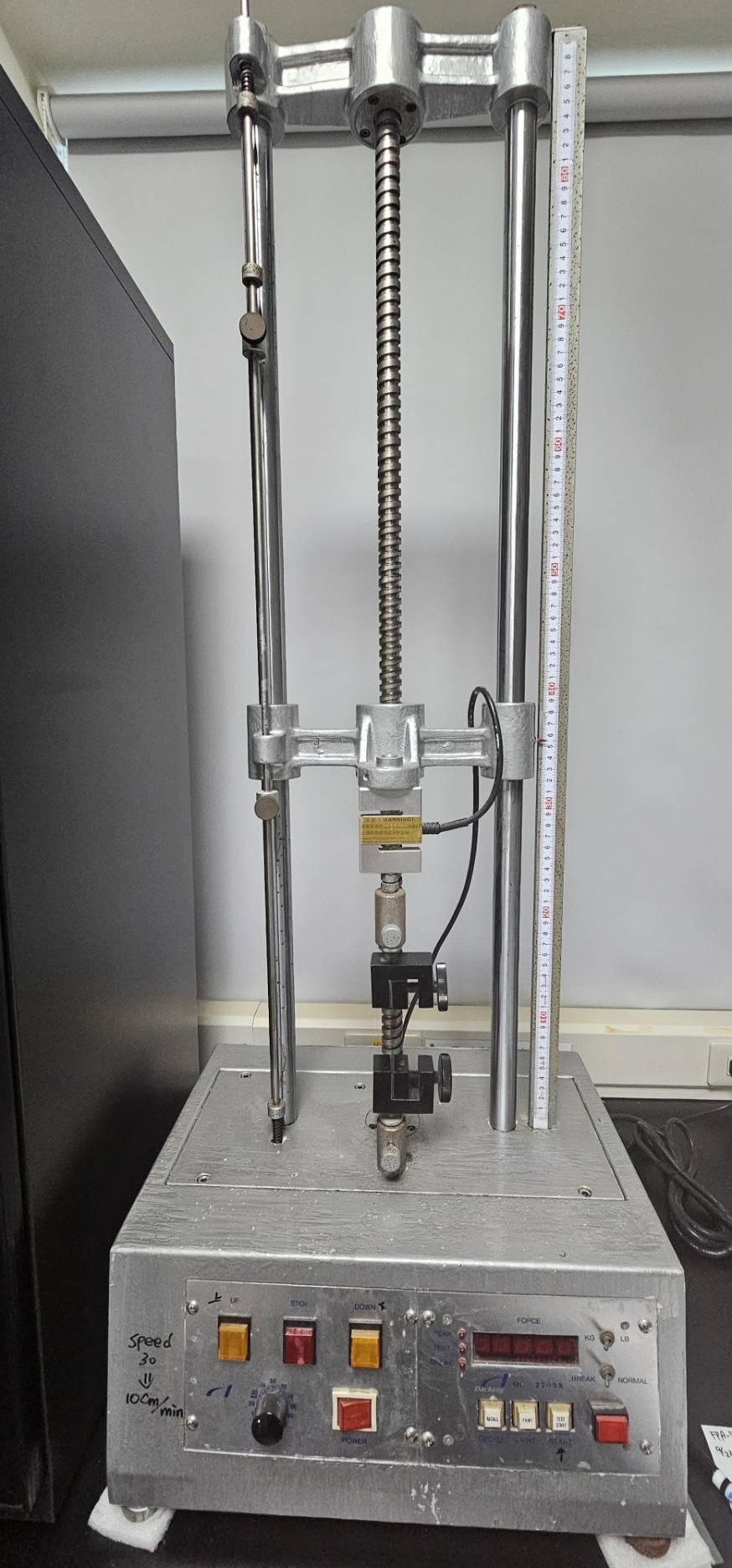

Tension Tester	Tenacity Measurement of Film Materials	Maximum breaking strength test of film materials The test process refers to relevant specifications of CNS 5610

Liquid & Water Quality Testing

Equipment	Analysis & Measurem	Description

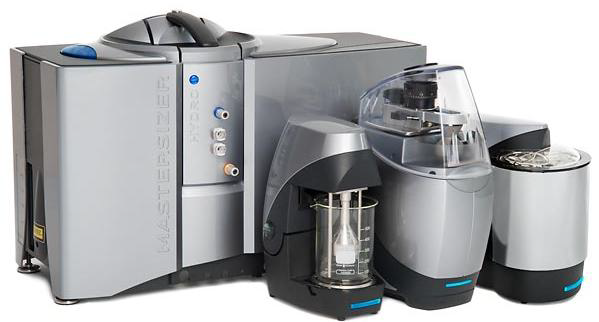

Laser Particle Size Analyzer	Measurement of Particle Size in Liquid Samples	Liquid sample particle size range and average particle size testing Particle size detection range: 0.01um~3500um Highly toxic and corrosive samples will not be tested

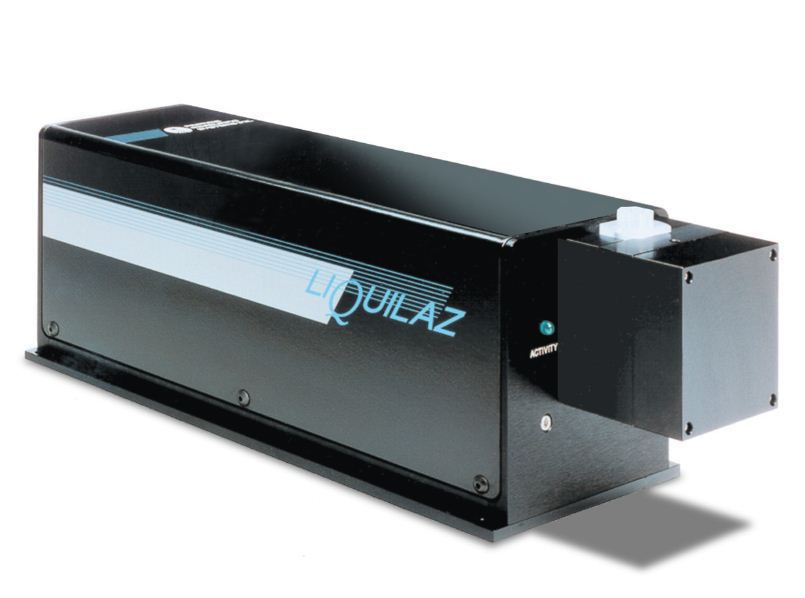

Liquid Particle Counter	Particle Counting for Liquid Samples	Calculate the number of microparticles in liquid samples, which can be applied to filter efficiency analysis Particle size detection range: 0.5 um~20 um Highly toxic and corrosive samples will not be tested

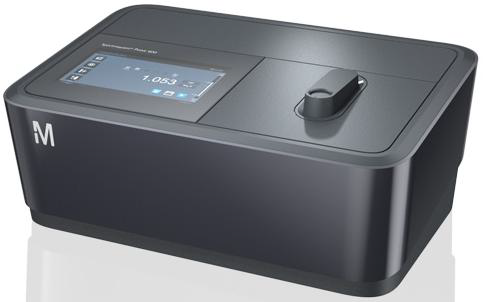

Spectrophotometric Analysis For Water Quality	Transparency Measurement of Liquid Samples	Extensive analysis of water quality of water samples, such as residual chlorine, heavy metal content, COD, TOC and other tests in water. Wavelength range: 190-1100 nm
	Chloride Residue Measurement of Liquid Samples
	Measurement of other Water Quality Analysis
Turbidimeter	Media Measurement of Liquid Turbidity	Measuring the turbidity of liquid samples can obtain the quality or quality control of water samples. Turbidity Range: 0-4000 NTU

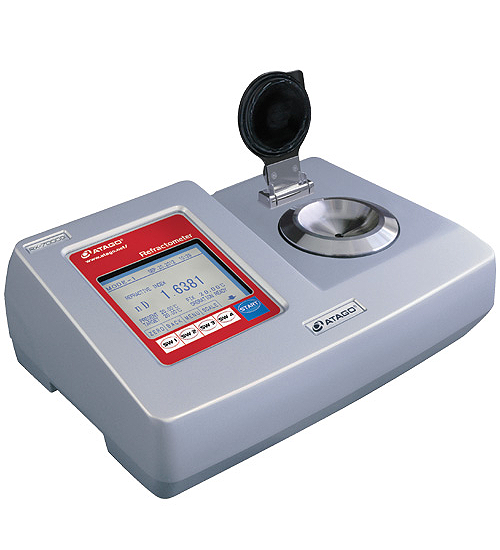

Automatic Digital Refractometer	Refraction Measurement for Liquid Samples	Suitable for refractive index and Brix measurements of a variety of liquid samples.

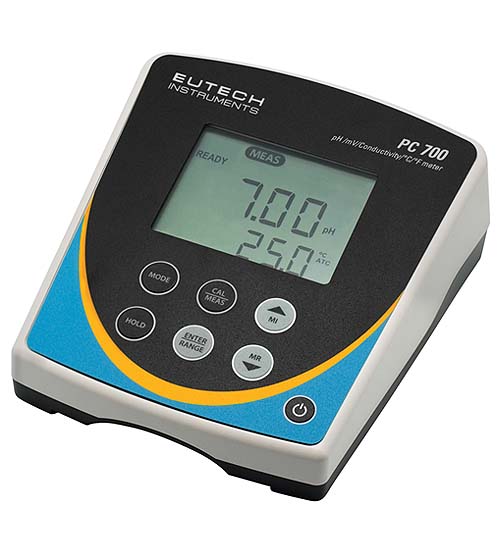

Water Quality Tester	pH Value Measurement of Liquid Samples	Highly toxic or corrosive samples will not be tested PH range: 1~14
	Conductivity Measuremnt of Liquid Samples	Highly toxic or corrosive samples will not be tested Conductivity range: 0 μs/cm ~ 2000 μs/cm
