Bag-Flow F Series

Filtrafine Bag-Flow F series filter bag has high contaminant holding capacity.

Its broad range of proprietary media provides excellent filtration performance and great consistency.

It also offers plastic and metal rings for wide temperature compatibility.

Silicone oil free finish prevents craters to provide a better surface results.
Model : PP, PE

Used PP or PE material is easily to disposed or incinerated. Contaminants are trapped inside the bag for cleaner change out.

Optional all welded construction can provide higher efficiency and eliminate the chance of fluid bypass.


FDA, Halal Certificated









Materials of Construction
Filter Media: Needle Felt Polypropylene, Needle Felt Polyester
Ring: Polypropylene, Polyester
Sealing: Welding Type, Sewn Type, Welding with Sewn Type

Retention Ratings

Retention Rating: PP: 1, 5, 10, 25, 50, 100 um

                             PE: 1, 5, 10, 25, 50, 100 um

Dimensions

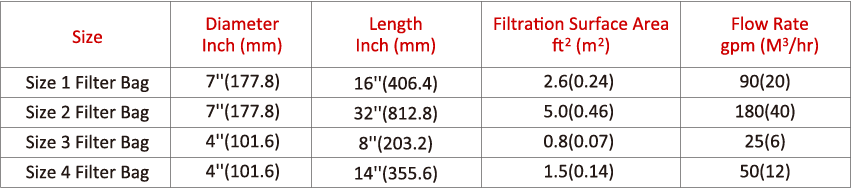

See table: Filter bag dimensions and typical liquid flow rate for sizing recommendation
