POLY-ADCT Series

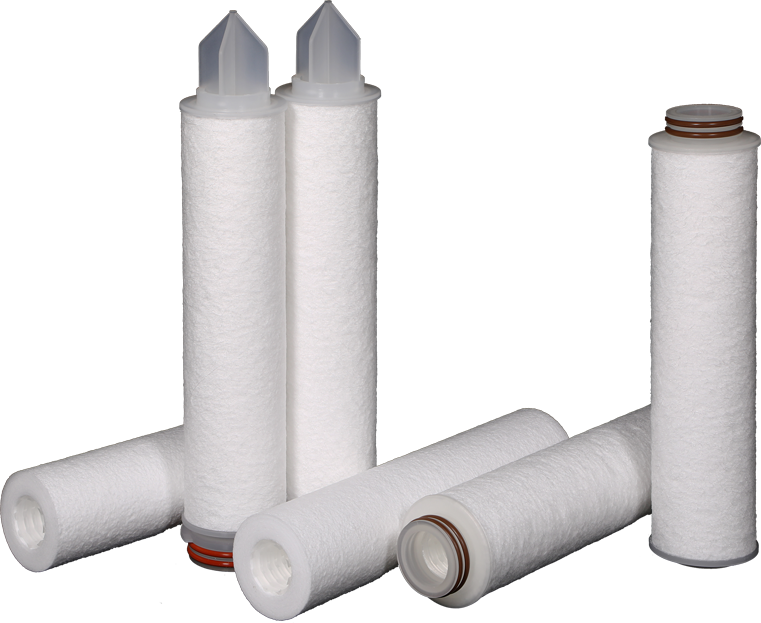

PAT series filter cartridge
With 3 layers graded pore structure and polypropylene center core which enhances mechanical strength

・ Type: Melt Blown Depth Filter
・ Media Polypropylene Resin
・ Length: 10”~50”
・ Retention Rate: 0.5~100 μm
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
Model : PAT

Materials of Construction
Filter Media: FDA graded Melt Blown Polypropylene
End Caps: Polypropylene
Gaskets/O-Rings: PE Gaskets, Silicone, Buna-N, EPDM, Viton

Operating Conditions
Maximum Differential Pressure:
50 psid (3.45 bar) @ ambient
25 psid (1.72 bar) @ 140°F (60°C)
Recommended Change Out Differential Pressure: 35 psid (2.4 bar)

RoHS, NSF42, NSF61, FDA, Halal Certificated


Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.

Dimensions

Outside Diameter: 2.5" (63 mm)

Inside Diameter: 1.1" (28 mm)

Lengths: 10", 20", 30", 40", 50"

End Configuration
PE = PE Gasket
No Symbol = DOE without end cap
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet

Retention Ratings

0.5, 1, 3, 5, 10, 20, 30, 50, 75, 100 µm
