Elements

WF series filter cartridge
- Graded pore structure provides efficient removal of a wide range of particle sizes
- Wrapped center core helps to minimize fiber migration

・ Type: String Wound Filter
・ Material: PP / Cotton / Glass Fiber
・ Length: 10”~70”
・ Retention Rate: 0.5~100 μm
・ End cap and extended core configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated

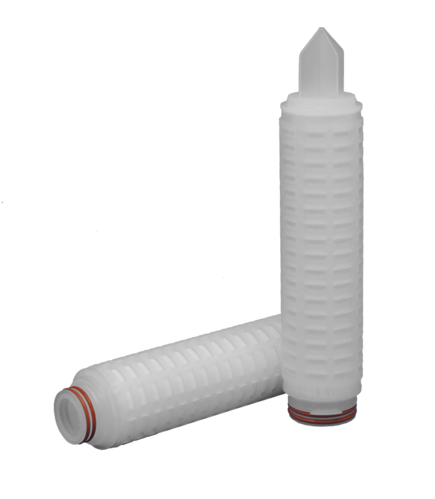

BGPF series utilizes micro fiber glass media, which increases dirt holding capacity and provides consistent filtration efficiency.

The reinforced outer cage and center core make BGPF provide secure operation through numerous cycles of hot water sanitization, which is typically used in food and beverage industry.

BGPF are especially designed for removal of contaminants like yeasts or other spoilage organisms and work well at pre-filtration stage in wine bottling process.

PATA series filter cartridge
With polypropylene center core which enhances mechanical strength
Absolute rated 99.98% efficiency with retention

・ Type: Melt Blown Depth Filter
・ Media: Polypropylene Resin
・ Length: 10”~50”
・ Retention Rate: 0.5~100 μm (Absolute)
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated

VSF series filter cartridges utilize highly Asymmetric Polyethersulfone (PES) Membrane

which can handle high flow rate and provide high dirt holding capacity.

This series offers excellent retention efficiency and extended on-stream life

for water system of the pharmaceutical industry as well as the food and beverage industry.

In addition, the thickness of center core is enhanced to withstand hot water sanitation or steam sterilization for multiple cycles.

Absolute rated > 99.9% efficiency with retention.

Manufactured in a class 1,000 clean room.

BPPF series utilizes melt blown polypropylene sheet as filter media which delivers consistent performance.

The reinforced outer cage and center core enable to withstand harsh operating conditions, for example, hot water sanitization, which is typically used in food and beverage industry.

BPPF can significantly reduce numbers of yeasts and spoilage organisms from beverage products to provide microbial stabilization.

RoHS, FDA, Halal Certificated

VSF-BEER series utilizes polyethersulfone membrane to provide consistent removal of spoilage organisms and inorganic particles.

This series offers excellent retention efficiency and extended on-stream life making it an ideal product for final beer bottling filtration.

Each cartridge is individually tested to ensure integrity before releasing.

Imprinted model number, lot number and serial number allow for easy identification and traceability.

Manufactured in a class 1,000 clean room.

Manufactured under a certified ISO 9001 quality system.

Flushed with 18 megohm-cm DI water (optional).

Integrity Test：bubble point test,difusin flow test.

VSF-WINE series utilizes polyethersulfone membrane to provide consistent removal of spoilage organisms and inorganic particles.

This series offers excellent retention efficiency and extended on-stream life making it an ideal product for final wine bottling filtration.

Each cartridge is individually tested to ensure integrity before releasing.

Imprinted model number, lot number and serial number allow for easy identification and traceability.

Manufactured in a class 1,000 clean room.

Flushed with 18 megohm-cm DI water (optional).

Integrity Test：bubble point test,difusin flow test.
Manufactured in a class 1,000 clean room.

Flushed with 18 megohm-cm DI water (optional).

Integrity Test：bubble point test,difusin flow test.

HIE series features advanced Filtrafine pleat technology which enables to maximum the surface area, increase the dirt holding capacity and provide extended service life.

HIE can be applied to wine or beer production as trap filters. HIE can trap released D.E. fines and reduce the amount of micro-organisms to make sure the cleanness of downstream piping and equipment.

It can also be applied to general water application in wine and brewery industries.
