Carbon-Clean-WS Series

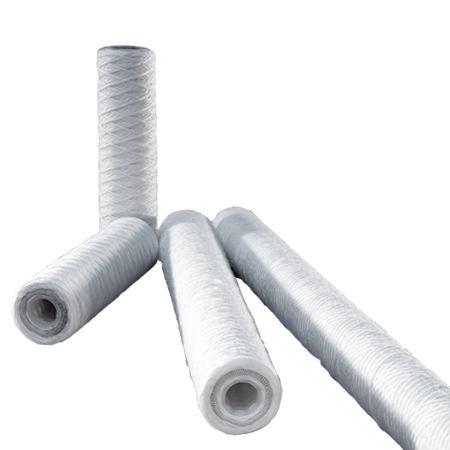

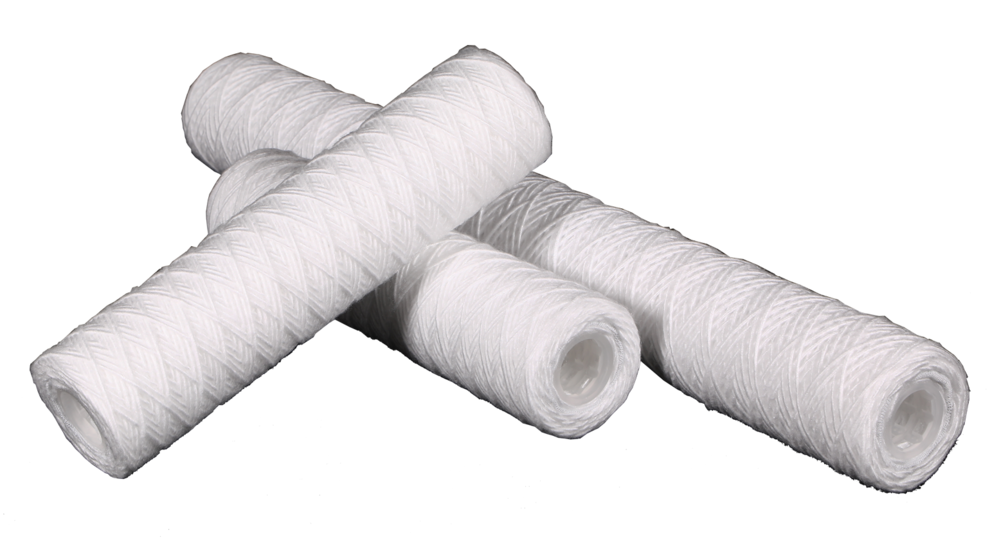

Carbon-Clean-WS series filter cartridge
Combines the advantages of String Wound filter cartridge and Activated Carbon, and provides lower pressure drop
・ Type: Activated Carbon Filter
・ Media: carbon impregnated fibers protected by polypropylene string wound fiber
・ Length: 10”~40”
・ Retention Rate: 5 μm
・ Double Open End
・ Center Core in 304 Stainless Steel for high heat and viscosity resistant
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
Combines the advantages of String Wound filter cartridge and Activated Carbon, and provides lower pressure drop
・ Type: Activated Carbon Filter
・ Media: carbon impregnated fibers protected by polypropylene string wound fiber
・ Length: 10”~40”
・ Retention Rate: 5 μm
・ Double Open End
・ Center Core in 304 Stainless Steel for high heat and viscosity resistant
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
Model :
CB-WS
Materials of Construction
Filter Media: Carbon impregnated fibers protected by upstream and downstream polypropylene string wound fibers
Outer Netting: None
End Cap: None
Inner/ Outer Wrap: Polypropylene string wound fibers
Operating Conditions
Maximum Operating Temperature: 40°F-140°F (5°C-60°C)
Notes
- The drinking water of unknown quality may require proper disinfection or pre-treatment in addition to carbon filtration.
- Steps should be taken to prevent the filter cartridge from freezing. This may affect cartridge performance.
- Carbon-Clean-WS series contain a very small amount of carbon fines. After installation, please flush the cartridge for a minimum of 5 minutes to remove all trace of carbon prior to using them in the process. Use the tap water to flush the cartridge for at least 20 seconds prior using for drinking water or cooking purpose.
Dimensions
Outside Diameter: 2.56" (65mm)
Lengths: 10", 20", 30", 40"
Retention Ratings
5 µm
