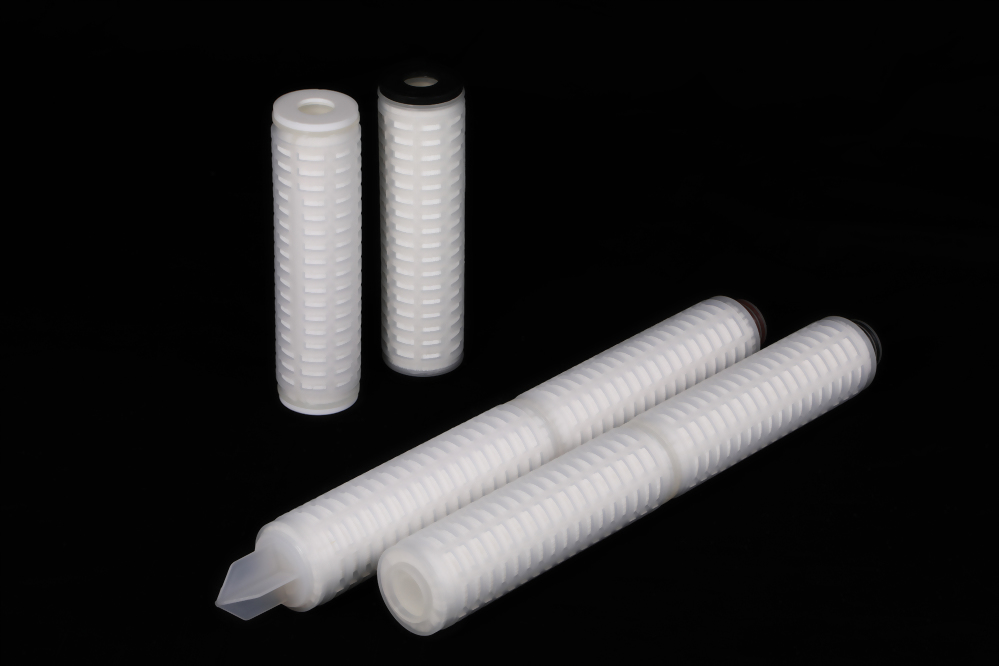

UPW-Flow Series

UPW-Flow series filter cartridges utilize proprietary highly asymmetric polyethersulfone membrane to deliver a combination of high flow rate and high dirt holding capacity.

Absolute rated at > 99.9% efficiency with retention.

Manufactured in a class 1,000 clean room.

RoHS, FDA, Halal Certificated
Model : UPW

Materials of Construction

Filter Media: Highly Asymmetric Polyethersulfone Membrane

Hardware: Polypropylene (HP=High Temp. PP is optional)

Sealing: Thermal Bond

Support Material: Polypropylene
Gaskets/ O-rings: Silicone, Buna-N, EPDM, Viton, Telfon Encapsulated Viton, Hard Teflon, Soft Teflon


Operating Conditions

Maximum Differential Pressure:

75 psid (5.1 bar) @ 68°F (20°C)

40 psid (2.8 bar) @ 150°F (65°C)

Recommended Change Out Differential Pressure: 35psid (2.4 bar)

Maximum Operating Temperature:

Hardware Polypropylene: 180°F (82°C)
Hardware HP Polypropylene: 275°F (135°C)

RoHS, FDA, Halal Certificated

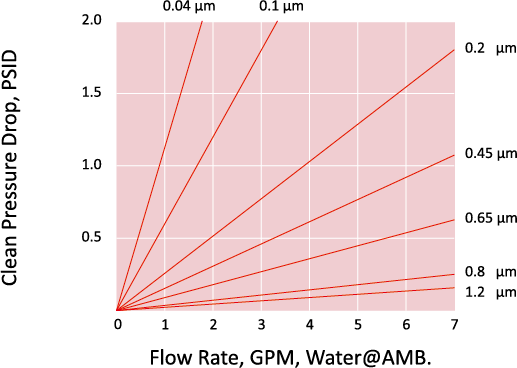

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.


Dimensions

Outside Diameter: 2.67" (68mm)

Lengths: 10", 20", 30", 40"


End Configuration

DOE = Double open end
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet


Retention Ratings

0.04, 0.1, 0.2, 0.45, 0.65, 0.8, 1.2 µm Absolute
