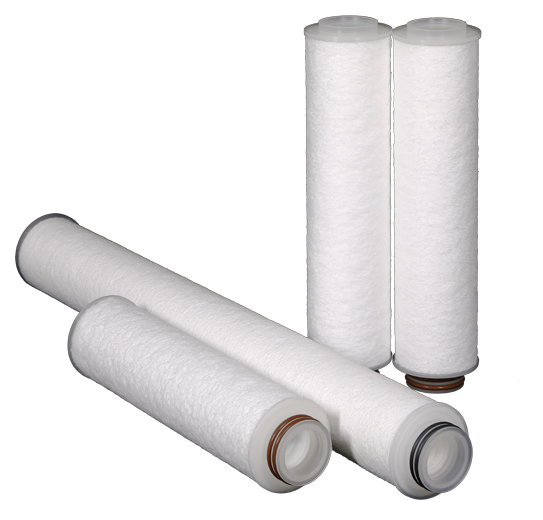

Superior-Fine Series

PCB series filter cartridge
High dirt holding capacity and consistent performance
Filtration efficiency > PRS series filter cartridge

・ Type: Melt Blown Depth Filter
・ Media: Advanced Polypropylene Resin
・ Length: 10”~50”
・ Retention Rate: 0.5~100 μm
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
Model : PCB

Materials of Construction
Filter Media: FDA graded Melt Blown Polypropylene
End Caps: Polypropylene
Gaskets/O-Rings: PE Gaskets, Silicone, Buna-N, EPDM, Viton

Operating Conditions

Maximum Differential Pressure:

50 psid (3.45 bar) @ ambient

25 psid (1.72 bar) @ 140°F (60°C)

Recommended Change Out Differential Pressure: 35psid (2.4 bar)


RoHS, NSF42, NSF61, FDA, Halal Certificated

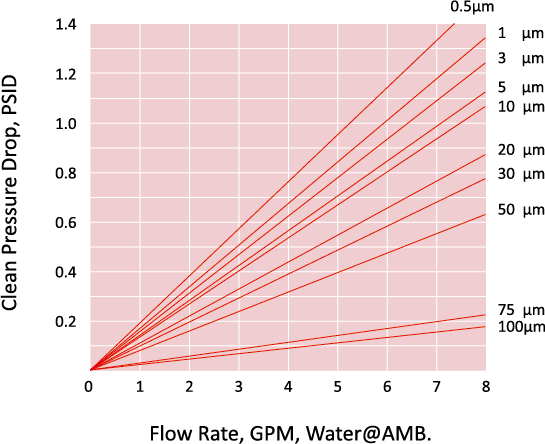

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.

Dimensions

Outside Diameter: 2.5" (63 mm)

Inside Diameter: 1.1" (28 mm)

Lengths: 10", 20", 30", 40", 50"

End Configuration
PE = PE Gasket
No Symbol = DOE without end cap
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet

Retention Ratings

0.5, 1, 3, 5, 10, 20, 30, 50, 75, 100 µm
