Pleated-Flow CA Series

Each PLTCA series filter cartridge is produced with a continuous rigid center core which enhances structural strength of cartridge.

The cartridges are all polypropylene construction which provides wide chemical compatibility.

PLTCA series filters utilize proprietary filter media with fixed pore construction to deliver highly consistent performance and resist dirt unloading at maximum differential pressure.

RoHS, FDA, Halal Certificated
Model : PLTCA

Materials of Construction

Filter Media: Polypropylene

Hardware: Polypropylene

Sealing: Thermal Bond

Support Material: Polypropylene

Gaskets/ O-rings: Silicone, Buna-N, EPDM, Viton, Telfon Encapsulated Viton


Operating Conditions

Maximum Operating Pressure: 75 psid (5.1 bar) @ 68°F (20°C)

40 psid (2.8 bar) @ 150°F (65°C)

Maximum Operating Temperature: 167°F (75°C)

Recommended Change Out Differential Pressure: 35 psid (2.4 bar)


RoHS, FDA, Halal Certificated

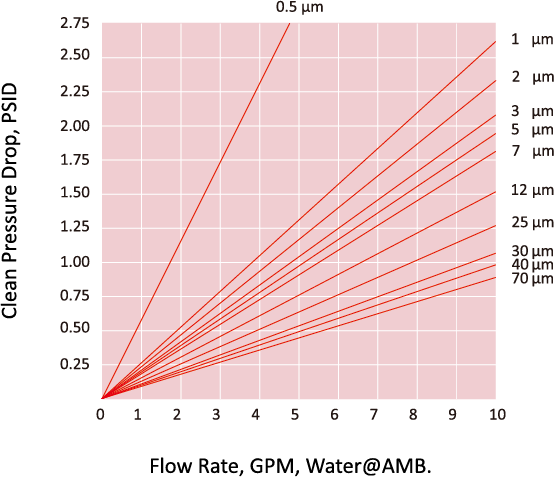

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.


Dimensions

Outside Diameter: 2.67" (68mm)

Lengths: 10", 20", 30", 40"


End Configuration
DOE = Double open end
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet


Retention Ratings

0.5, 1, 2, 3, 5, 7, 12, 25, 30, 40, 70 µm Absolute
