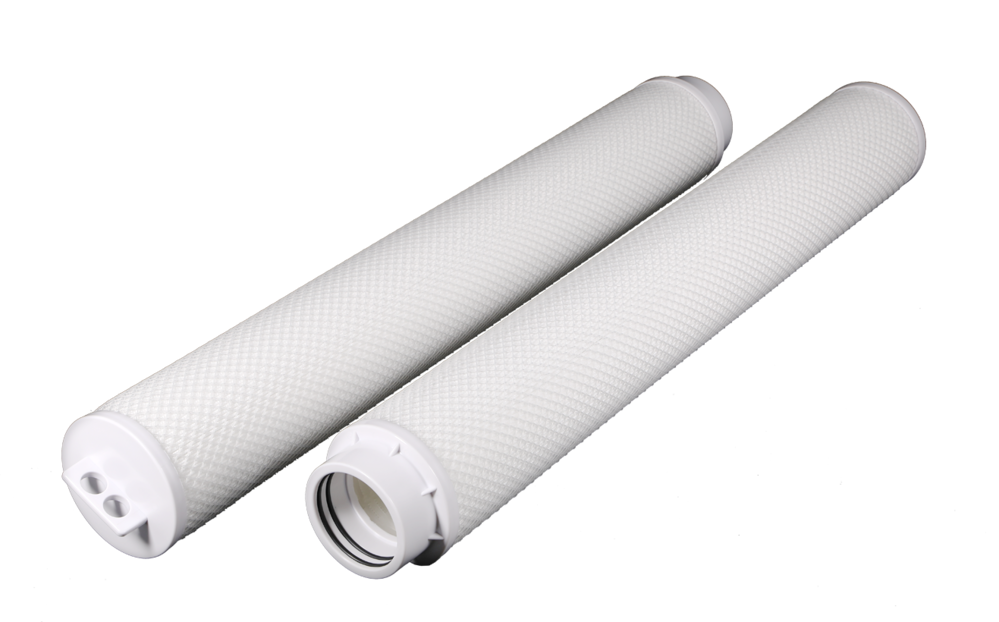

NHF High Flow Series

NHF series filter cartridge's high surface area and large diameter provides higher flow rate, service life, dirt holding capacity and lower maintenance/ disposal cost.

Its center core can resist higher differential pressure, and its double o-rings provide better sealing effect.

In addition, it provides optional polypropylene and micro glass fiber media, which can be applied to wide chemical compatibility.

RoHS, FDA, Halal Certificated
Model : NHF

Materials of Construction

Filter Media: Polypropylene, Glass Fiber

Hardware: Polypropylene

Support Material:

Polypropylene (for PP media)

Polyester (for glass fiber media)

O-rings: EPDM(Standard), Buna-N, Silicone, Viton


Operating Conditions

Maximum Differential Pressure:

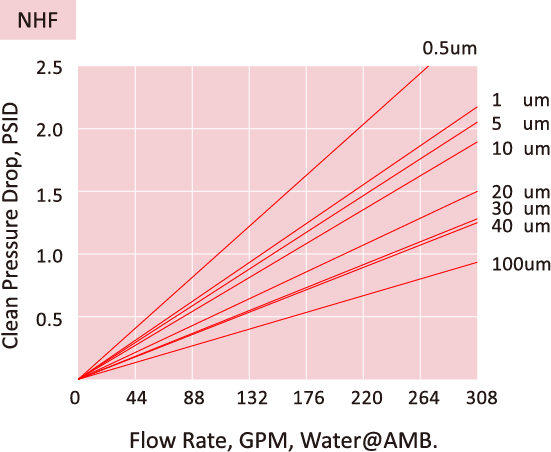

NHF: 180°F (82°C)

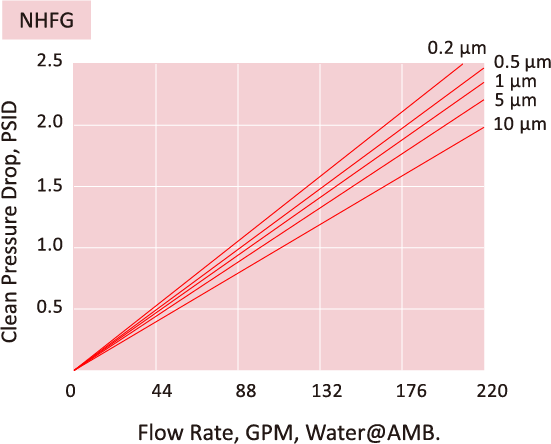

NHFG: 220°F (105°C)

Recommended Change Out Differential Pressure: 35 psid (2.4 bar)

RoHS, FDA, Halal Certificated





Dimensions

Outside Diameter: 6" (152mm)

Lengths: 40"


Retention Ratings

NHF: 0.5, 1, 5, 10, 20, 30, 40, 100 µm

NHFG: 0.2, 0.5, 1, 5, 20, 40 µ
