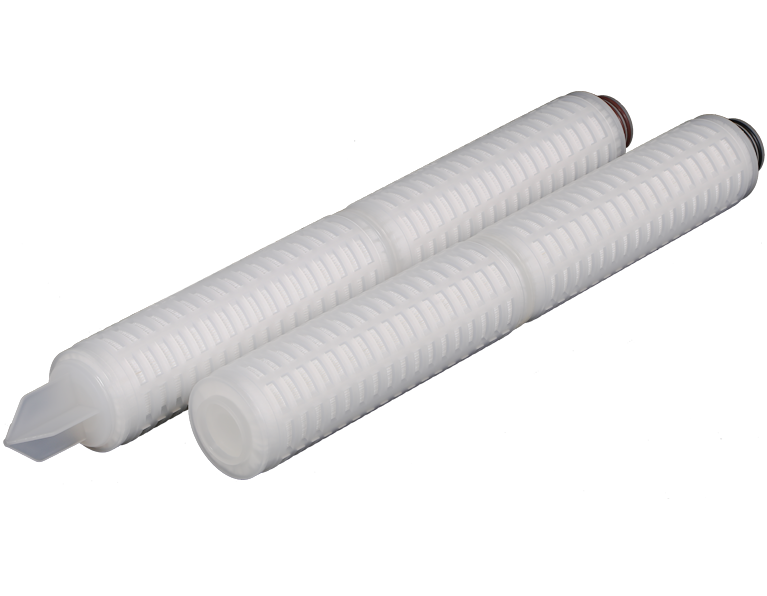

Tech-Flow Series

Tech-Flow series filter cartridges are made of biologically inert and chemical resistant hydrophobic and hydrophilic PTFE media.

Each TEF filter element is stamped with pore size and lot number for indentification and traceability.

Absolute rated at > 99.99% efficiency with retention.

Manufactured in a class 1,000 clean room.

RoHS, FDA, Halal Certificated
Model : TEF

Materials of Construction

Filter Media: Expanded Polytetrafluoro-ethylene (ePTFE) Membrane

Hardware:

Standard: Polypropylene

Optional: High Density Polyethylene

Sealing: Thermal Bond

Support Material: Polypropylene

Gaskets/ O-rings: Silicone, Buna-N, EPDM, Viton, Telfon Encapsulated Viton


Operating Conditions

Maximum Operating Pressure:

80 psid (5.5 bar) @ 68°F (20°C)

20 psid (1.4 bar) @ 203°F (95°C)


Maximum Operating Temperature:

P(standard PP): 220°F (105°C)

HP(high Temp. PP): 275°F (135°C)
UH(TPEE): 329°F (165°C)



Recommended Change Out Differential Pressure: 35 psid (2.4 bar)


RoHS, FDA, Halal Certificated
Manufactured in a class 1,000 clean room

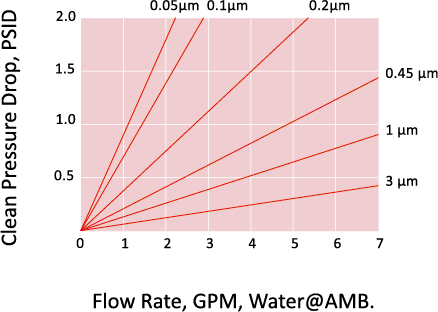

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.

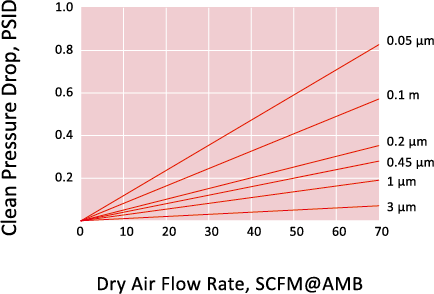

Flow rate is per 10" cartridge.


Dimensions

Outside Diameter: 2.67" (68mm)

Lengths: 4", 10", 20", 30", 40"


End Configuration
DOE = Double open end
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet


Retention Ratings

0.02, 0.05, 0.1, 0.2, 0.45, 1, 3µm Absolute
