VSF Series

VSF series filter cartridges utilize highly Asymmetric Polyethersulfone (PES) Membrane

which can handle high flow rate and provide high dirt holding capacity.

This series offers excellent retention efficiency and extended on-stream life

for water system of the pharmaceutical industry as well as the food and beverage industry.

In addition, the thickness of center core is enhanced to withstand hot water sanitation or steam sterilization for multiple cycles.

Absolute rated > 99.9% efficiency with retention.

Manufactured in a class 1,000 clean room.
Model : VSF

Materials of Construction

Filter Media: Polyethersulfone Membrane

Hardware: Polypropylene

Sealing: Thermal Bond

Support Material: Polypropylene

Gaskets/ O-rings: Silicone

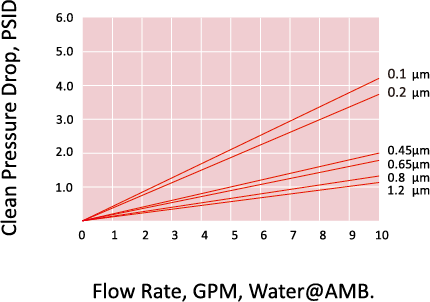

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.

Dimensions

Outside Diameter: 2.67' (68mm)

Lengths: 4', 10', 20', 30', 40'



Retention Ratings

0.2, 0.45, 0.65, 0.8, 1.2 µm Absolute


Operating Conditions

Maximum Differential Pressure: 75 psid (5.1 bar) @ 68°F (20°C)

                                                   40 psid (2.8 bar) @ 150°F (65°C)

Sanitization & Sterilization: Hot Water @ 90°C for 30 min, up to 100 cycles.
