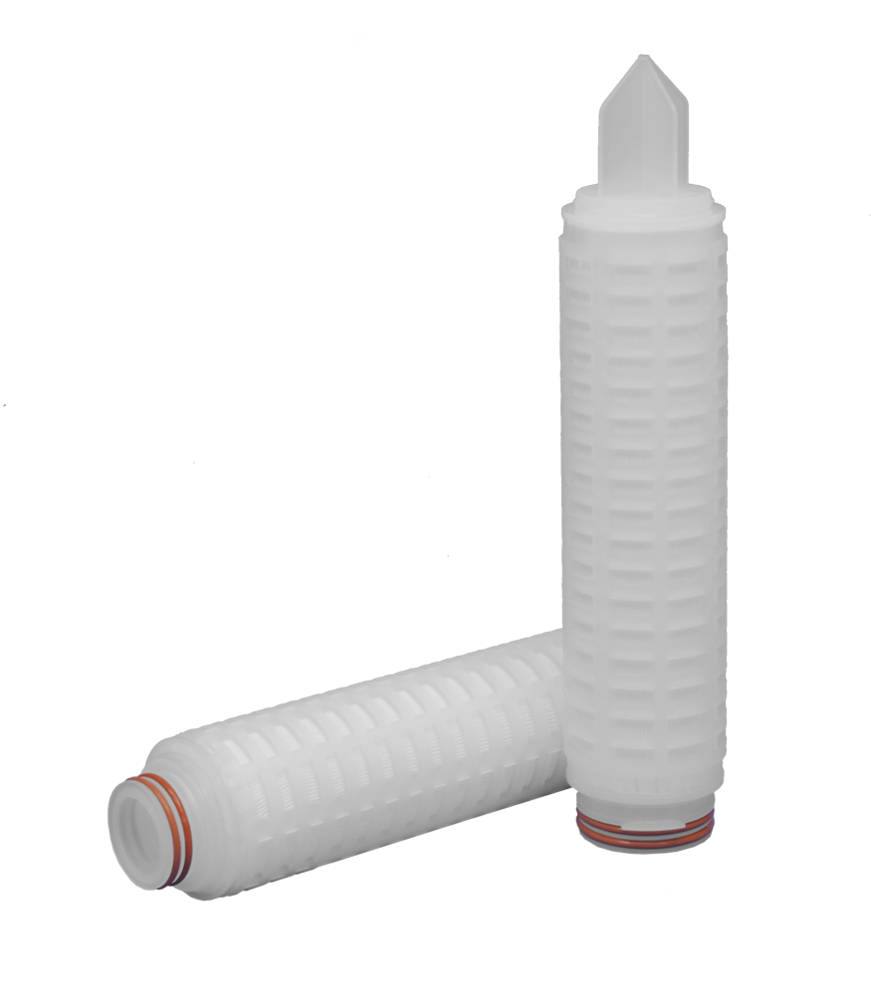

VSF-WINE Series
VSF-WINE series utilizes polyethersulfone membrane to provide consistent removal of spoilage organisms and inorganic particles.
This series offers excellent retention efficiency and extended on-stream life making it an ideal product for final wine bottling filtration.
Each cartridge is individually tested to ensure integrity before releasing.
Imprinted model number, lot number and serial number allow for easy identification and traceability.
Manufactured in a class 1,000 clean room.
Flushed with 18 megohm-cm DI water (optional).

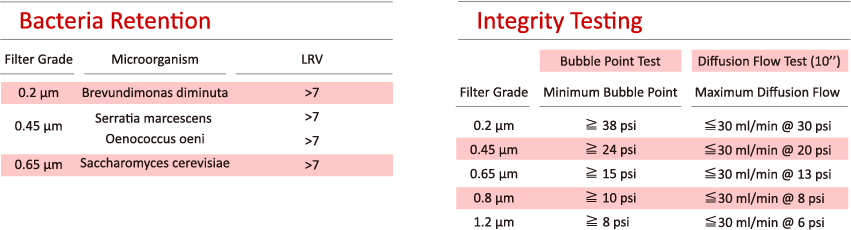

Integrity Test：bubble point test,difusin flow test.
Manufactured in a class 1,000 clean room.
Flushed with 18 megohm-cm DI water (optional).
Integrity Test：bubble point test,difusin flow test.
This series offers excellent retention efficiency and extended on-stream life making it an ideal product for final wine bottling filtration.
Each cartridge is individually tested to ensure integrity before releasing.
Imprinted model number, lot number and serial number allow for easy identification and traceability.
Manufactured in a class 1,000 clean room.
Flushed with 18 megohm-cm DI water (optional).
Integrity Test：bubble point test,difusin flow test.
Manufactured in a class 1,000 clean room.
Flushed with 18 megohm-cm DI water (optional).
Integrity Test：bubble point test,difusin flow test.
Model :
VSF-WINE
FDA, Halal Certificated

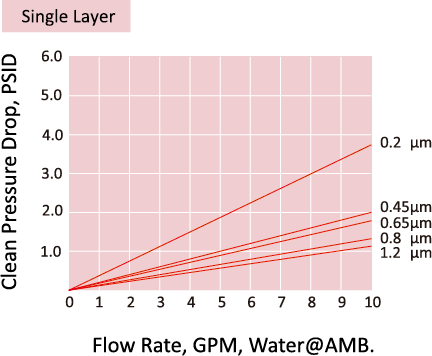

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.
Materials of Construction
Filter Media: Polyethersulfone Membrane
Hardware: Polypropylene
Sealing: Thermal Bond
Support Material: Polypropylene
Gaskets/ O-rings: Silicone
Dimensions
Outside Diameter: 2.8' (71 mm)
Lengths: 10', 20', 30', 40'
Retention Ratings
Single Layer: 0.2, 0.45, 0.65, 0.8, 1.2 µm Absolute
Dual Layer: 0.45/0.45, 1.2/0.45, 1.2/0.65 µm Absolute
Operating Conditions
Maximum Operating Pressure: 75 psid (5.1 bar) @ 68°F (20°C)
40 psid (2.8 bar) @ 150°F (65°C)
Sanitization & Sterilization: Hot Water @ 90°C for 30 min, up to 100 cycles.
