NNF Series

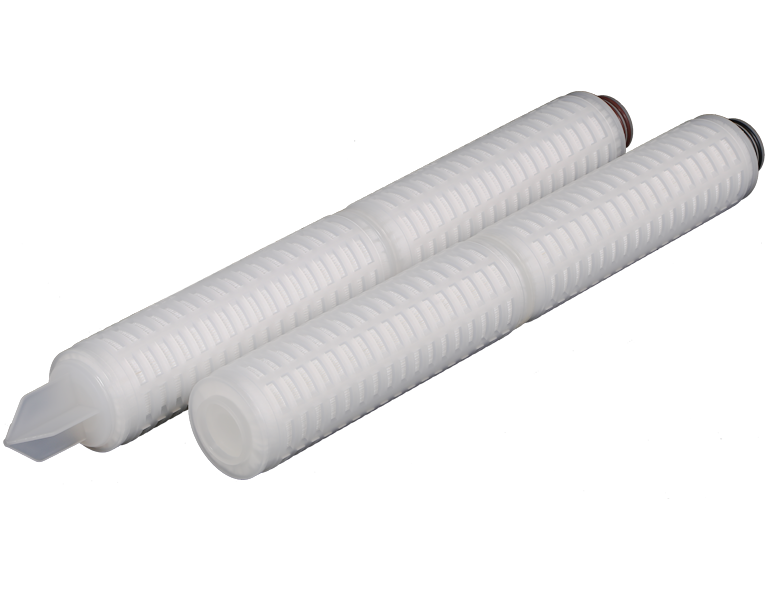

NNF series filter cartridge utilize Nylon 6,6 membrane which can be used to filter most organic solvent, such as alcohols, hydrocarbons, ethers, ketone, benzen, etc.

Due to the high hydrophilicity and excellent adsorption capacity, NNF series can effectively remove micron-structured particles in all kinds of solutions.

NNF series with wide chemical compatibility is free of surfactants, binders and adhesives. It's the ideal choice for filtration of photoelectric and chemicals

RoHS, Halal Certificated
Model : NNF

Materials of Construction

Filter Media: Hydrophilic Nylon 6,6
Support Material: Polypropylene,High Density Polyethylene

Outer Cage / Core:

Standard: Polypropylene

Optional: High Density Polyethylene

Sealing: Thermal Bond

Gaskets/ O-rings: Silicone, EPDM, Viton, Telfon Encapsulated Viton


Operating Conditions

Maximum Operating Temperature: 167°F (75°C)

Recommended Change Out Differential Pressure: 35 psid (2.4 bar)


RoHS, Halal Certificated

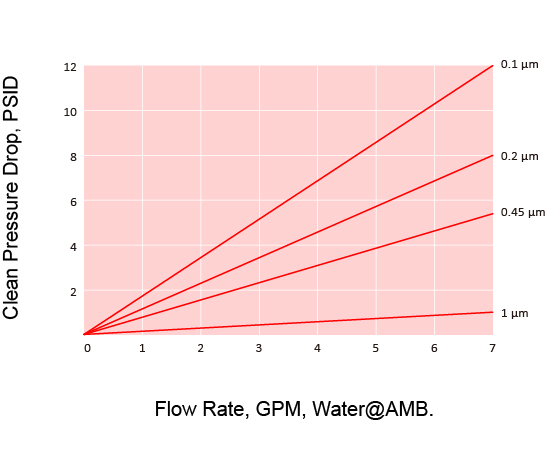

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.

Dimensions

Outside Diameter: 2.67" (68mm)

Lengths: 10", 20", 30", 40"


End Configuration
DOE = Double open end
Code 3 = 222 / Flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet
Code 6 =226 / Flat


Retention Ratings

0.1, 0.2, 0.45, 1, 3, 5 µm Absolute
