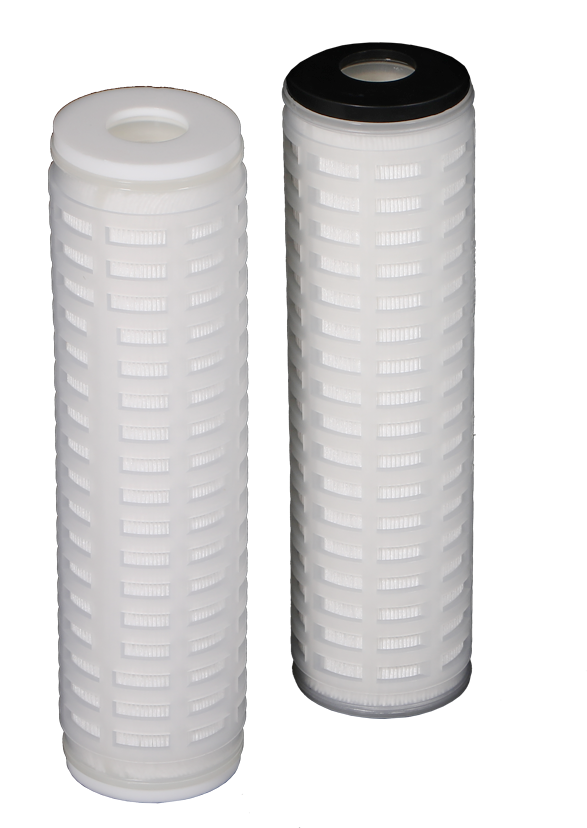

Micro-Flow Series

Micro-Flow series filter cartridges ultillize proprietary highly asymmetric polethersulfone membrane to deliver a combination of high flow rate and high dirt holding capacity.

MFN series filters are 100% pre-flushed with 18 megohm-cm DI water and integrity tested.

Each element is stamped with pore size, lot and serial number for identification and traceability.

Manufactured in a class 1,000 clean room.
RoHS, FDA, Halal Certificated
Model : MFN

Materials of Construction

Filter Media: Highly Asymmetric Polyethersulfone Membrane

Hardware: Polypropylene

Sealing: Thermal Bond

Support Material: Polypropylene
Gaskets/ O-rings: Silicone, Buna-N, EPDM, Viton, Telfon Encapsulated Viton


Operating Conditions

Maximum Differential Pressure: 75 psid (5.1 bar) @ 68°F (20°C)

40 psid (2.8 bar) @ 150°F (65°C)

Maximum Operating Temperature: 180°F (82°C)

Recommended Change Out Differential Pressure: 35psid (2.4 bar)


RoHS, FDA, Halal Certificated

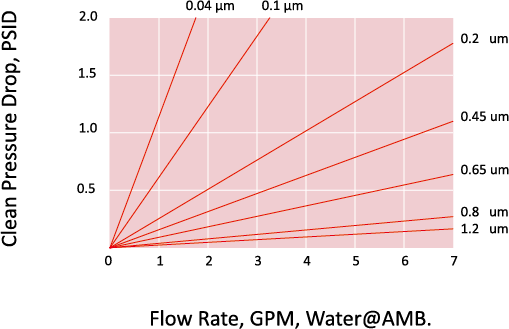

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.

Dimensions

Outside Diameter: 2.67" (68mm)

Lengths: 4", 10", 20", 30", 40"


End Configuration
DOE = Double open end
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet


Retention Ratings

0.04, 0.1, 0.2, 0.45, 0.65, 0.8, 1.2 µm Absolute
