Micro-Flow G Series

Micro-Flow G series filter cartridges ultillize proprietary highly asymmetric polethersulfone membrane to deliver a combination of high flow rate and high dirt holding capacity.

MFN series filters are 100% pre-flushed with 18 megohm-cm DI water and integrity tested.

Each element is stamped with pore size, lot and serial number for identification and traceability.

Manufactured in a class 1,000 clean room.

RoHS, FDA, Halal Certificated
Model : MFNG

Materials of Construction

Filter Media: Highly Asymmetric Polyethersulfone Membrane

Hardware: Polypropylene

Sealing: Thermal Bond

Support Material: Polypropylene
Gaskets/ O-rings: Silicone, Buna-N, EPDM, Viton, Telfon Encapsulated Viton


Operating Conditions

Maximum Differential Pressure: 75 psid (5.1 bar) @ 68°F (20°C)

40 psid (2.8 bar) @ 150°F (65°C)

Maximum Operating Temperature: 180°F (82°C)

Recommended Change Out Differential Pressure: 35psid (2.4 bar)

RoHS, FDA, Halal Certificated
100% pre-flushed with 18 megohm-cm DI water and integrity tested

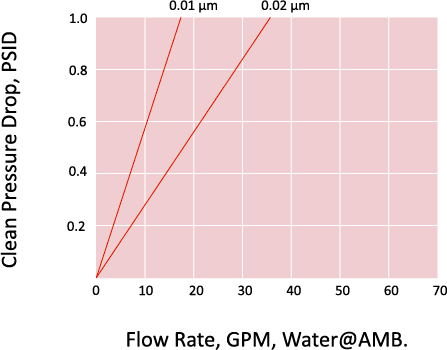

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.

Dimensions

Outside Diameter: 2.67" (68mm)

Lengths: 10", 20", 30", 40"


End Configuration
DOE = Double open end
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet


Retention Ratings

0.01, 0.02 µm Absolute
