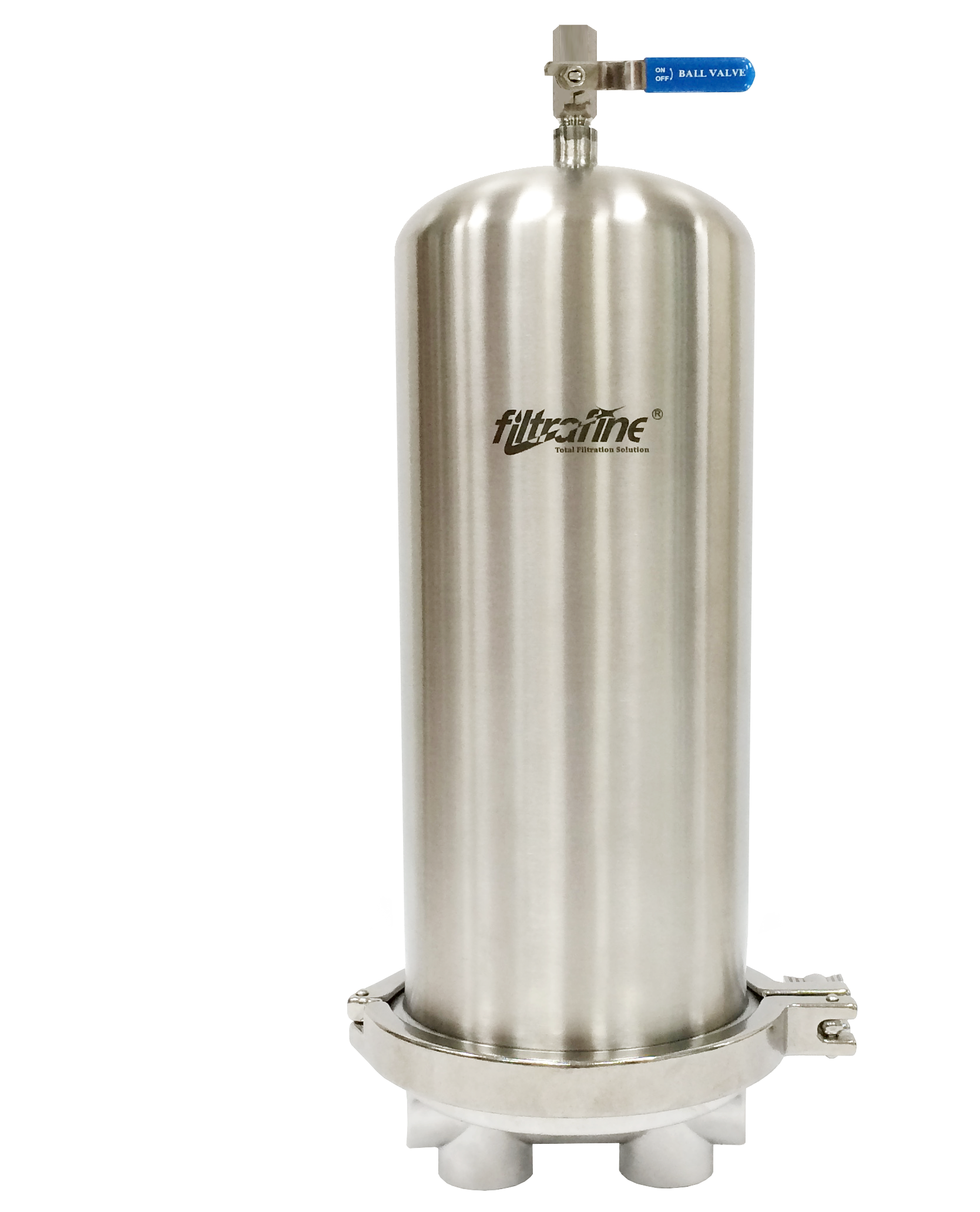

HPV Commercial Series

Filtrafine HPV series is a single cartridge housing for household using.

The HPV series is designed with 2 inlets and 2 outlets which is suitable for different directions of water pipes at home.

The tri-clamp design provides absolute cartridge sealing to avoid fluid bypass.

Quick cartridge change-out without any special tools.

The robust HPV series filter housing has no internal part and can accommodate Filtrafine HPF cartridge.
Model : HPV


Materials of Construction

Head: 304 Stainless Steel

Shell: 304 Stainless Steel

Shell O-rings: Standard: EPDM

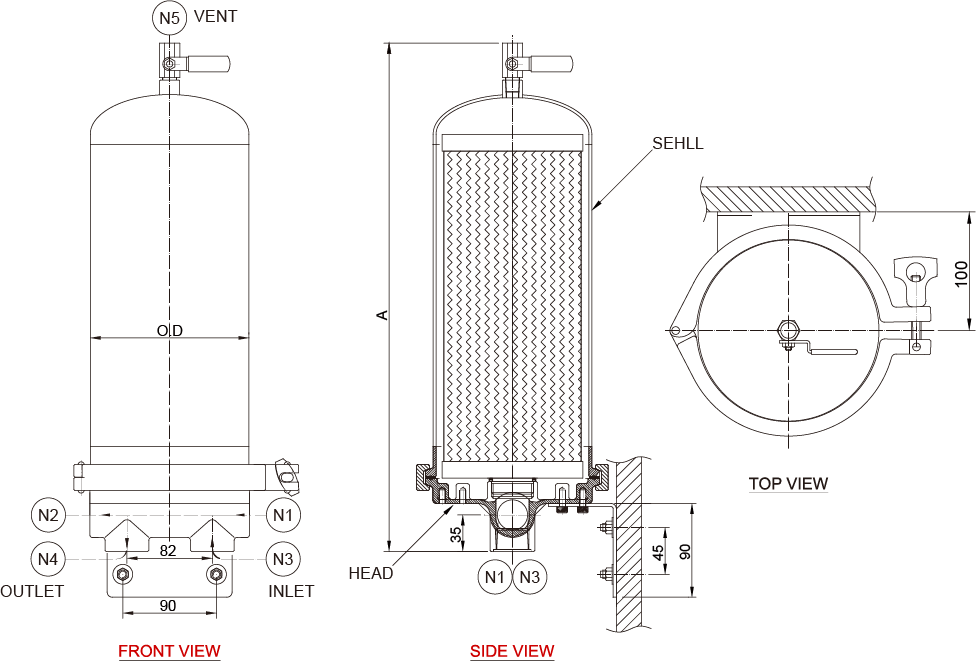

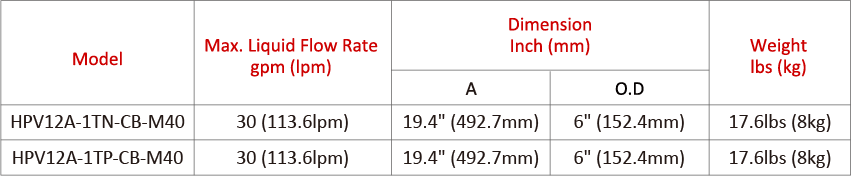

Dimensions

Inlet/ Outlet: 1" NPT

Vent : 1/4" NPT

Drain: 1/8" NPT

Optional Connection: PT, BSP


Maximum Operating Pressure

145 psig (10 bar) @122°F (50°C) i n liquid service.
