IDV-DOE Series

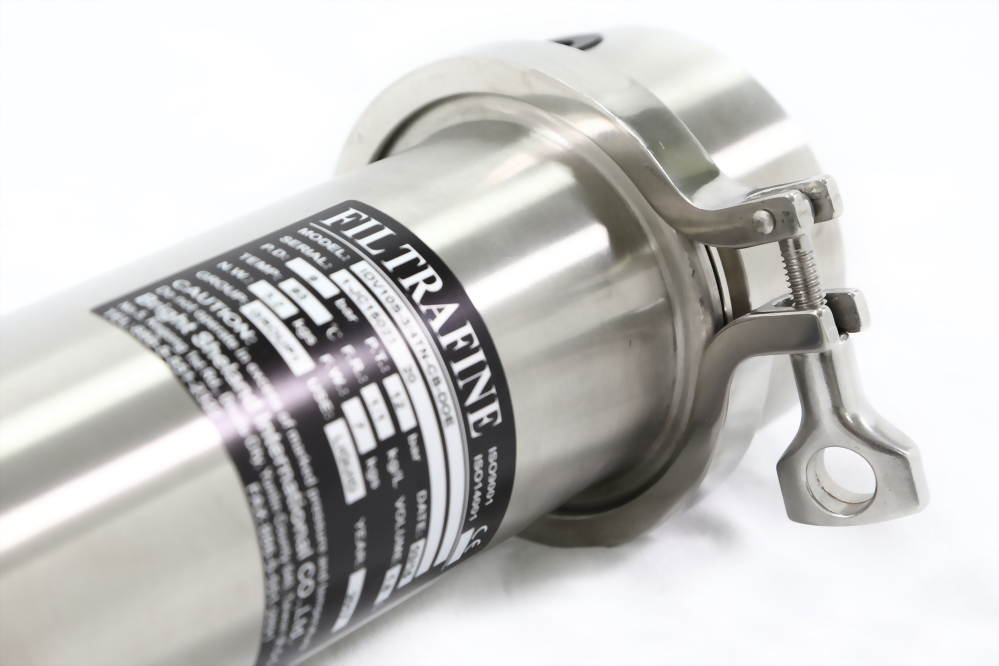

Filtrafine IDV-DOE series is a single round metal cartridge with well developed construction design and high standard quality.

The IDV-DOE is available in electro-polished stainless steel 316 to meet a wide range of liquid filtration challenges.
Model : IDV-DOE

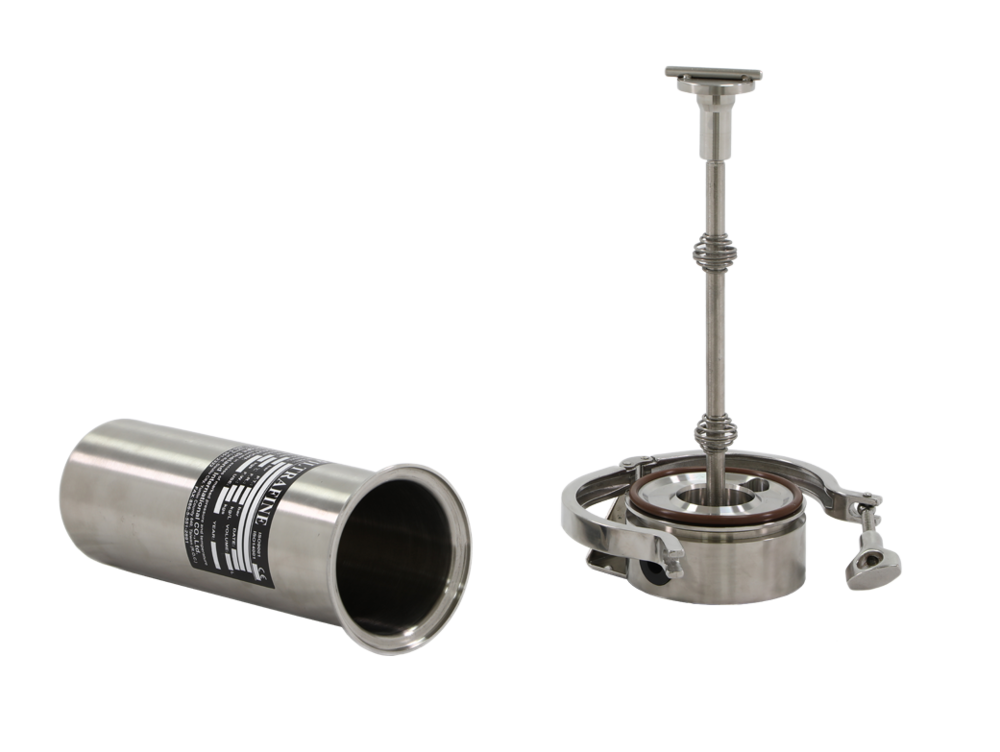

The innovative tri-clamp design provides absolute cartridge sealing to avoid liquid bypass and offers quick cartridge change-out without any special tools.

The robust IDV-DOE design permits visual inspection of cartridge seal before closing the housing.





Materials of Construction
Head: 316 Stainless Steel
Shell: 316 Stainless Steel
Mounting Bracket: 304 Stainless Steel
O-rings: Standard: Viton
              Optional: EPDM, Teflon Encapsulated Viton

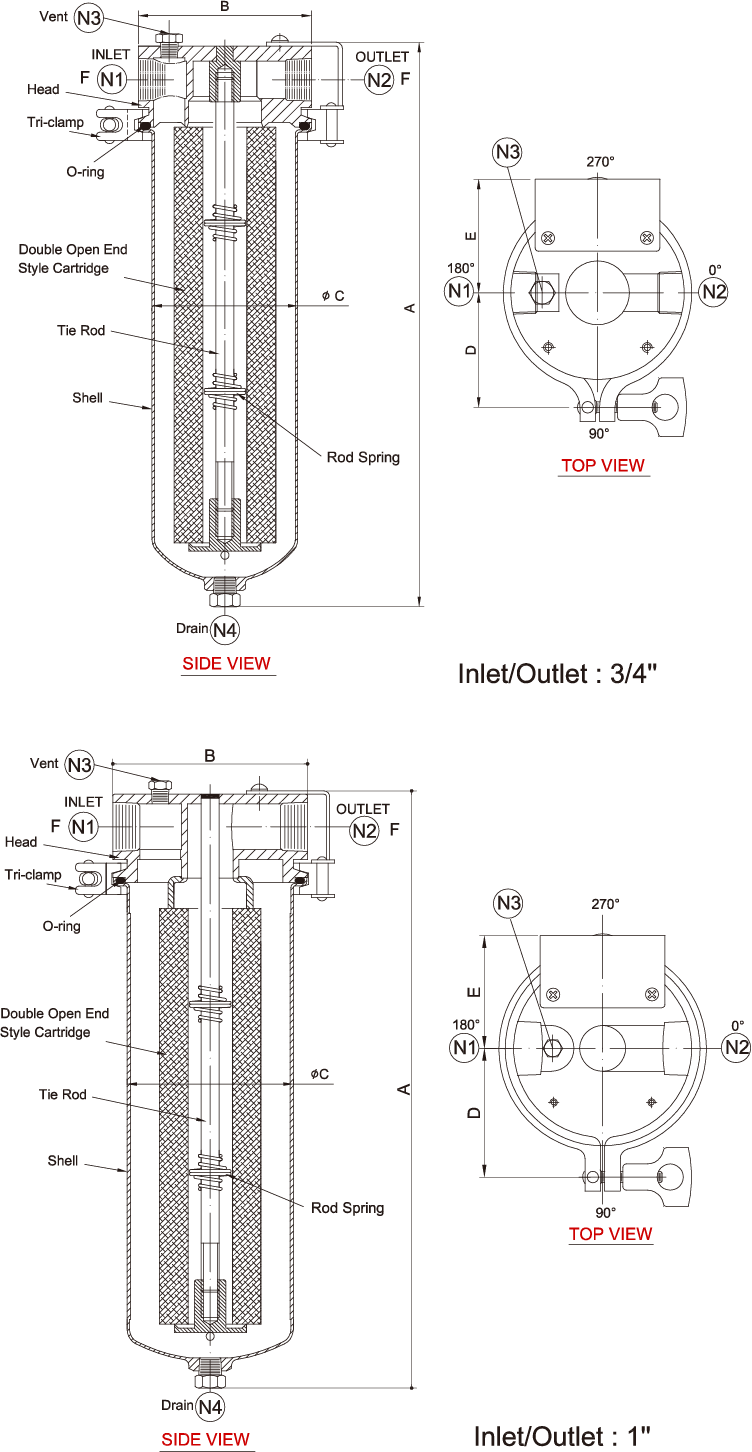

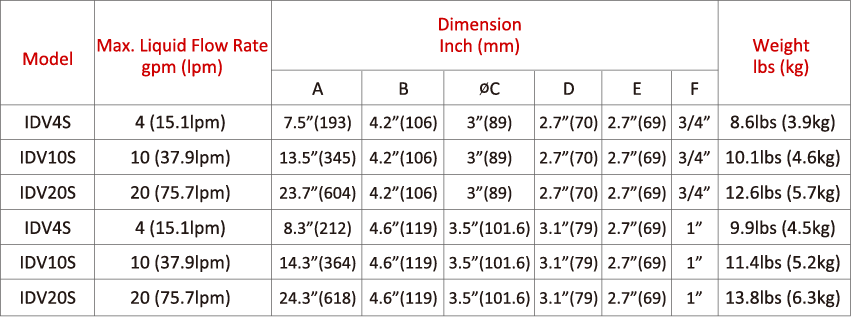

Dimensions
Inlet/ Outlet: 3/4", 1" F.NPT
Vent / Gauge: 1/8" F.NPT
Drain: 1/4" F.NPT

Performance Specifications

Maximum Operating Pressure: 175 psig (12.1 bar) @ 77°F (25°C) in liquid service.
