GSD-G series
Stainless Steel Filter Cartridge for Steam Air
~ Designed for steam air
~ High dirt holding capacity
~ Low pressure difference and high flow rate
~ Regenerated by back flushing
~ Available for ultrasonic cleaning
~ Long filter life & reduced cost
~ Made of S316 sintered stainless steel fiber
~ All welded and robust construction
~ Available for various applications
~ Designed for steam air
~ High dirt holding capacity
~ Low pressure difference and high flow rate
~ Regenerated by back flushing
~ Available for ultrasonic cleaning
~ Long filter life & reduced cost
~ Made of S316 sintered stainless steel fiber
~ All welded and robust construction
~ Available for various applications
Model :
GSD-G

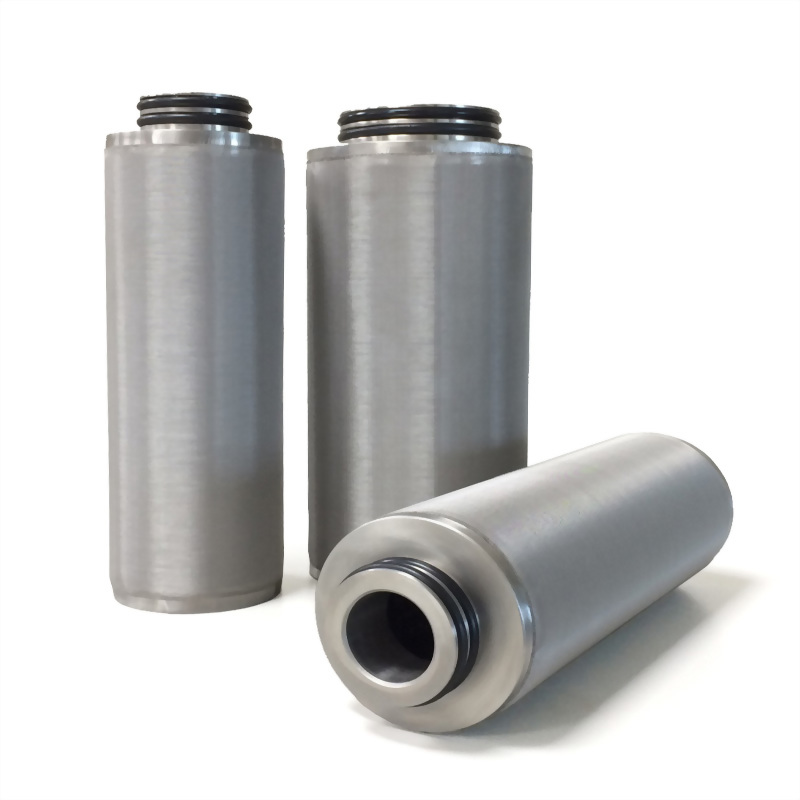

GSD-G Series Filter Cartridge
Filtrafine GSD-G Steam Air Series is made of high-quality 316 sintered stainless steel fiber which is cleanable in a variety of applications. The construction of GSD-G series is all welded and robust. The GSD-G provides high dirty holding capacity at low differential pressure and high flow rate, and it can be regenerated by back flushing or ultrasonic cleaning to deliver long filter life and reduced operating cost.
Materials of Construction
- Filter Media: S316 Sintered Stainless Steel Fiber
- Hardware: 316 Stainless Steel
- End caps: 316 Stainless Steel
- Support Material: 316 Stainless Steel sintered mesh
- Gaskets/ O-rings: EPDM , Fluoraz , Silicone , Buna N , Teflon Encapsulated Viton
- Materials meet with RoHS, FDA, Hala certifications
Product Specification
- Temperature Range : -4°F to 392°F (-20°C to 200°C)
- Absolute Retention Rate : 1, 5, 25 μm
- Configurations : UF Push-in connection and flat end cap P7 connection
- Maximum Forward Differential Pressure: 145 psid (10 bar)
- Maximum Reverse Differential Pressure : 29 psid (2 bar)

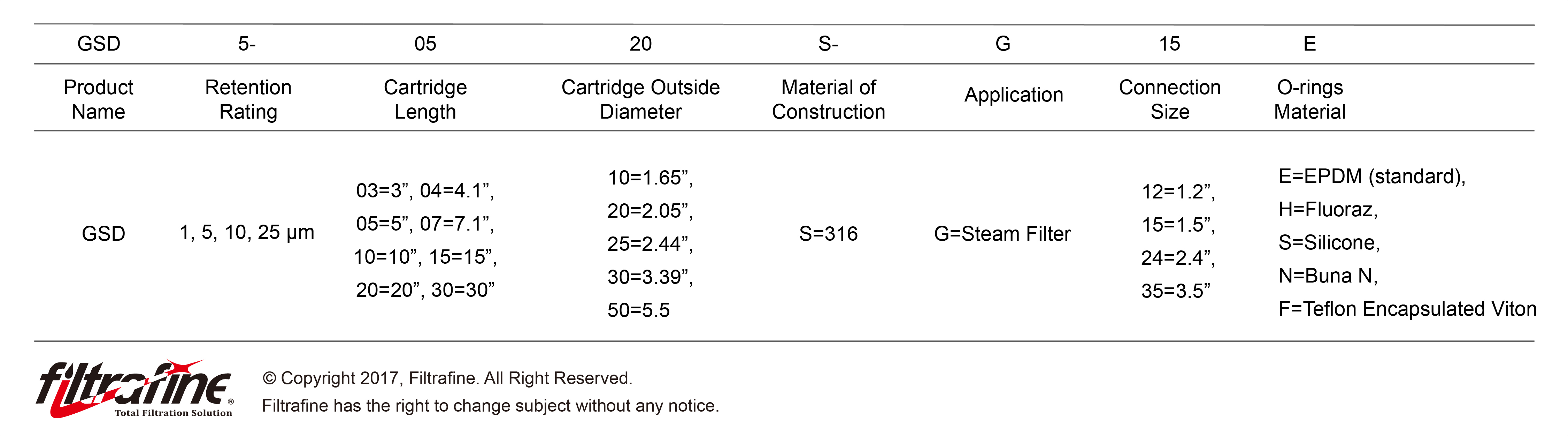

Ordering Information
