DJ-P Series

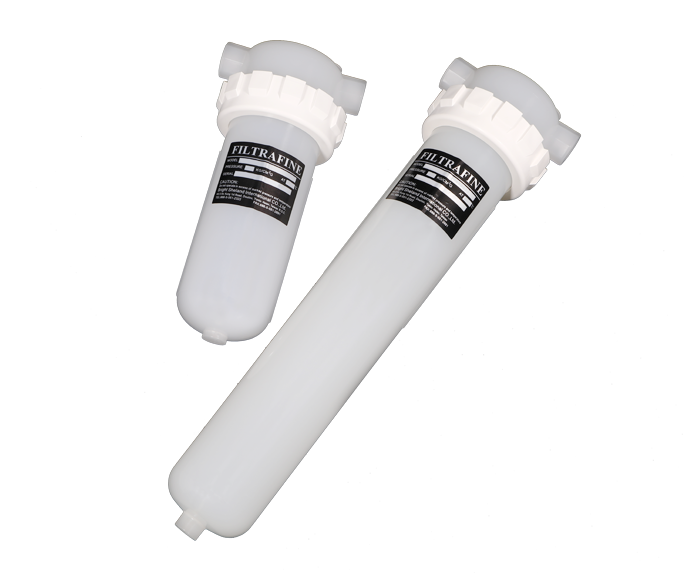

Filtrafine DJ-P series single filter housing is made of pure virgin polypropylene which has wide chemical compatibility to meet various application requirements, especially the FDA listed material is suitable for food and beverage contact.
Model : DJ-P

DJ-P series length is offered in standard 10' and 20' for single open end, 222 o-ring, flat closed end filter cartridge without any internal parts in this housing.

Optional mounting bracket kit provides easy installation and all materials are in stainless steel for durability.

FDA Listed Material

Manufactured from materials which are FDA listed for food contact applications in title 21 of the U.S. code of federal regulations.







Materials of Construction
Head / Bowl: Pure Virgin Polypropylene – No Talc, Fillers, Plasticizers, Lubricants
Mounting Bracket: Stainless Steel
Gaskets / O-rings: Standard: Viton
Optional: EPDM, Buna-N

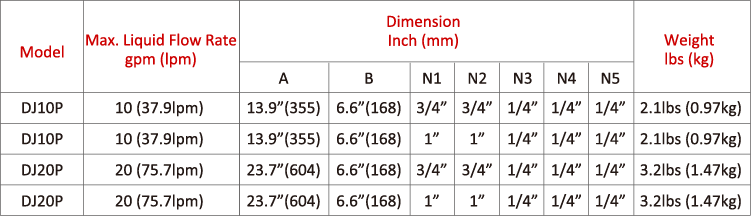

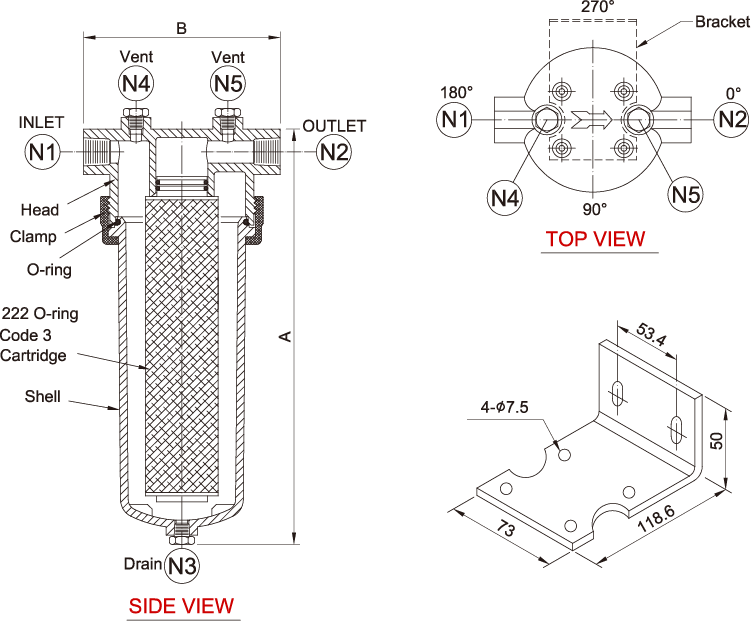

Dimensions
Inlet/ Outlet: DJ10P: 3/4' FNPT; DJ20P: 3/4', 1" FNPT
Vent / Gauge: 1/4NPT
Drain: 1/4NPT

Performance Specifications
Maximum Operating Pressure: 125 psig (8.6 bar) @ 77°F (25°C)
