SVS-DOE Series

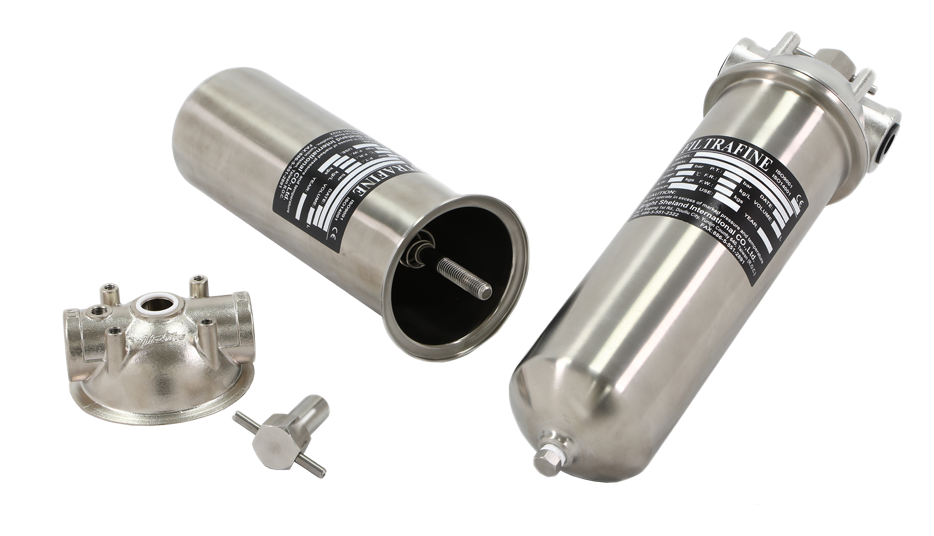

Filtrafine SVS-DOE series is a single metal cartridge housing which is available in stainless steel 304 or 316 to service a wide range of liquid filtration applications.

The SVS-DOE series equips superior T-handle closure design to allow cartridge change-out without any tools.
Model : SVS-DOE

The SVS-DOE self-adjusting sealing design provides positive filter seal to non-compressible cartridge for wider range of cartridge configuration.






Materials of Construction
Head: 316 Stainless Steel
Shell: 316 Stainless Steel
Mounting Bracket: 304 Stainless Steel
Gaskets / O-rings: Standard: Viton
                                 Optional: EPDM, Teflon Encapsulated Viton

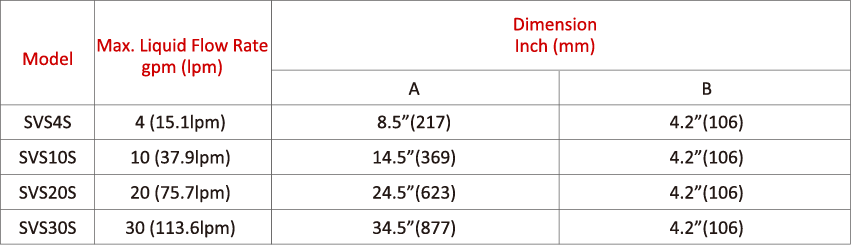

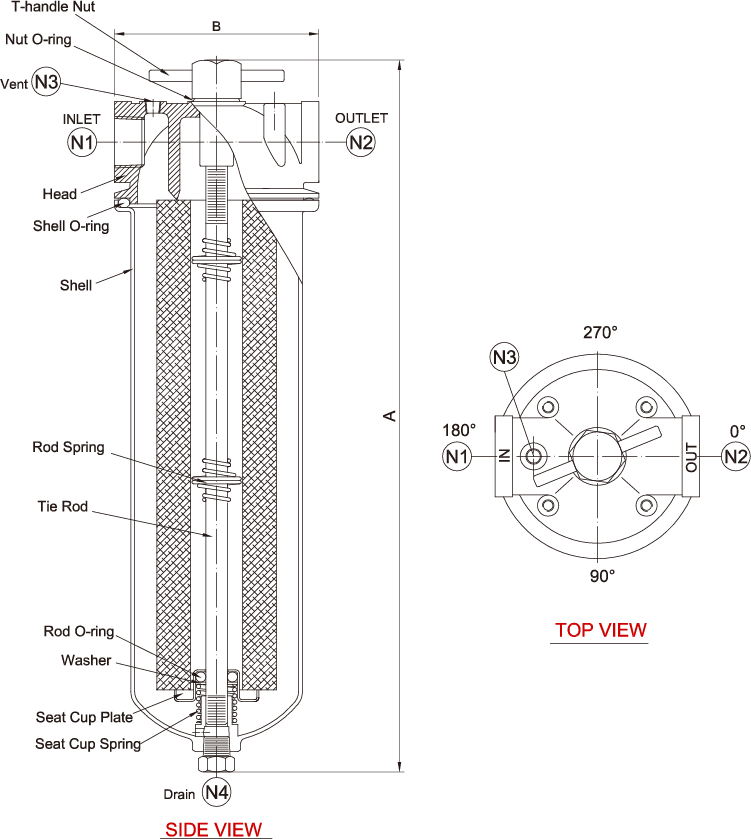

Dimensions
Inlet/ Outlet: 1/2"3/4", 1" F.NPT
Vent / Gauge: 1/8" F.NPT
Drain: 1/4" F.NPT

Performance Specifications
Maximum Operating Pressure: 175 psig (12.1 bar) @ 77°F (25°C)
