IDV-HP Series
The Filtrafine High-pressure vessel IDV-HP series is designed with flange-type closure and well-developed construction. Its hex nut closure ensures absolute sealing to avoid any chance of bypass. This series is an ideal option for low-flow rate applications that demand high pressure withstanding.
Model :
IDV-HP
Description
Especially for Code 3 and Code 6 filter elements, High-pressure vessel IDV-HP is an innovative housing design that has no internal parts.
The robust IDV-HP housings permit visual inspection of cartridge installation.
Optional:
-
ASME Code:
ASME U/UM stamp for USA pressure vessel standard. -
CE Standard:
CE-PED Certificate for Europe pressure vessel standard.

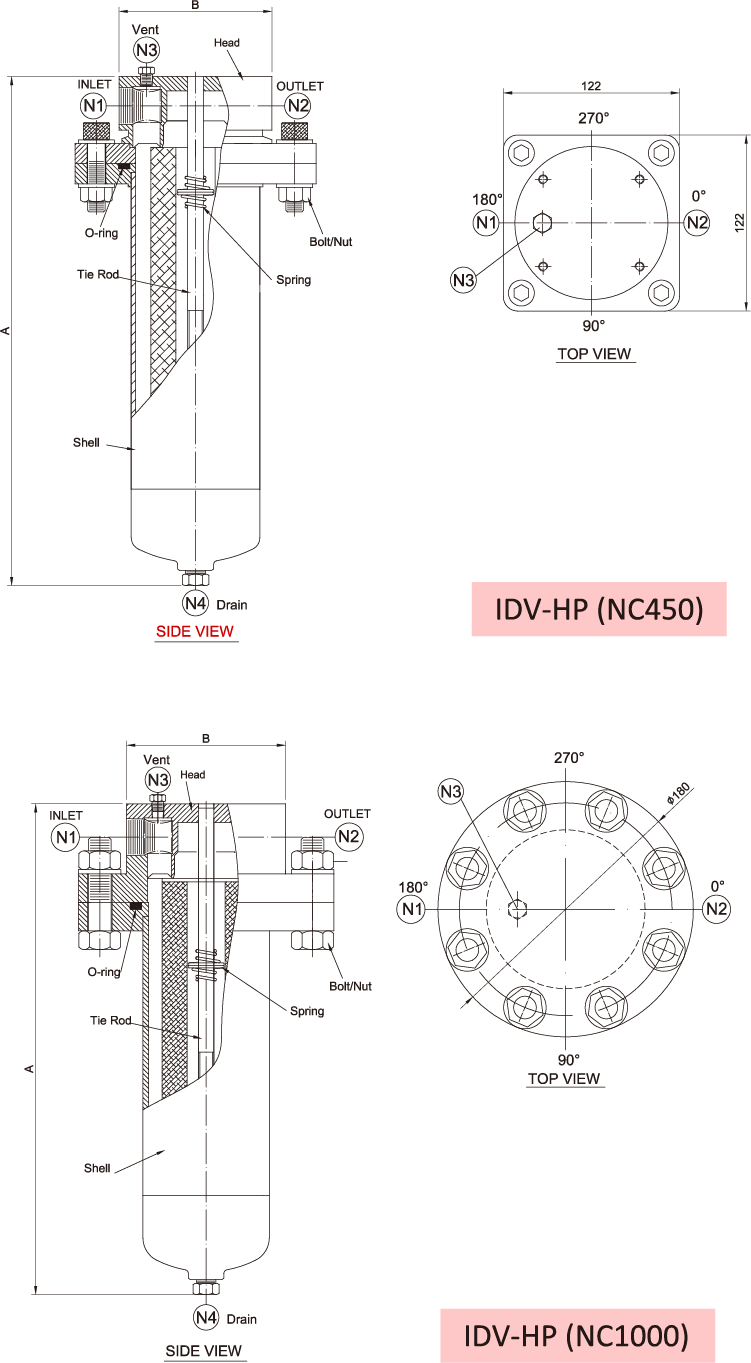

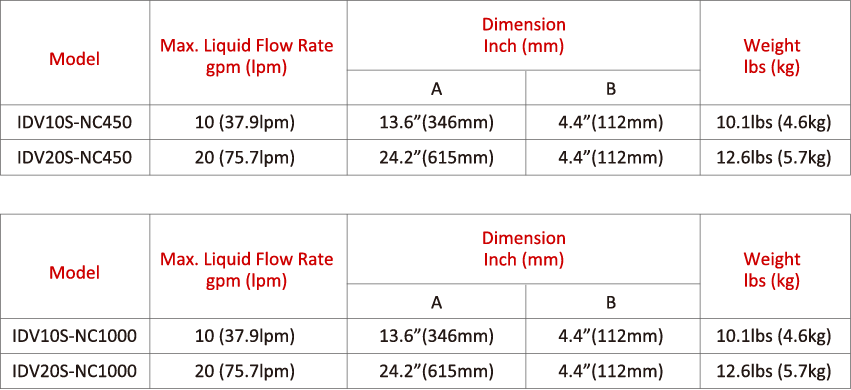

| Model |
Max. Liquid Flow Rate gpm (lpm) |
Dimension inch (mm) |
Weight lbs (kg) |
|
| A | B | |||
| IDV10S-NC450 | 10 (37.9 lpm) | 13.6" (346 mm) | 4.4" (112 mm) | 10.1 lbs (4.6 kg) |
| IDV20S-NC450 | 20 (75.7 lpm) | 24.2" (615 mm) |
4.4" (112 mm) |
12.6 lbs (5.7 kg) |
| Model |
Max. Liquid Flow Rate gpm (lpm) |
Dimension inch (mm) |
Weight lbs (kg) |
|
| A | B | |||
| IDV10S-NC1000 | 10 (37.9 lpm) | 13.6" (346 mm) | 4.4" (112 mm) | 10.1 lbs (4.6 kg) |
|
IDV20S-NC1000 |
20 (75.7 lpm) |
24.2" (615 mm) |
4.4" (112 mm) |
12.6 lbs (5.7 kg) |
Specifications
Materials of Construction
- Head: 316 Stainless Steel
- Shell: 316 Stainless Steel
- Mounting Bracket: 304 Stainless Steel
- Gaskets / O-rings:
- Standard: Viton
- Optional: EPDM, Teflon Encapsulated Viton
Dimensions
- Inlet/ Outlet: 3/4", 1" F.NPT
- Vent / Gauge: 1/8" F.NPT
- Drain: 1/4" F.NPT
Performance Specifications
- Maximum Operating Pressure:
- NC 450: 450 psig (31 bar) @ 77°F (25°C)
- NC 1000: 1000 psig (70 bar) @ 77°F (25°C)
