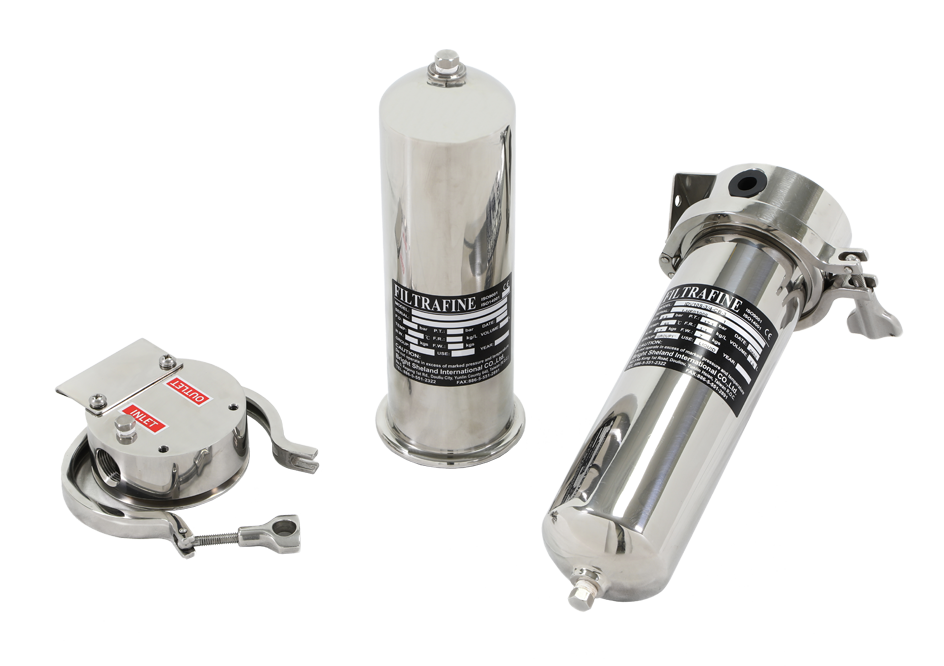

IDV-3 Series
Filtrafine single-round filter cartridge housing IDV-3 series is renowned with its innovative housing design and superior quality.
IDV-3 housing is available in electro-polished stainless steel 316 to meet a wide range of liquid processing applications.
IDV-3 housing is available in electro-polished stainless steel 316 to meet a wide range of liquid processing applications.
Model :
IDV-3
The Tri-clamp design provides absolute cartridge sealing to avoid fluid bypass and quick cartridge change-out without any special tools.
The robust IDV-3 design has no internal part and can accommodate 222 o-ring, flat closed end cartridge.
Materials of Construction
Head: 316 Stainless Steel
Shell: 316 Stainless Steel
Mounting Bracket: 304 Stainless Steel
Gaskets / O-rings: Standard: Viton
Optional: EPDM, Teflon Encapsulated Viton

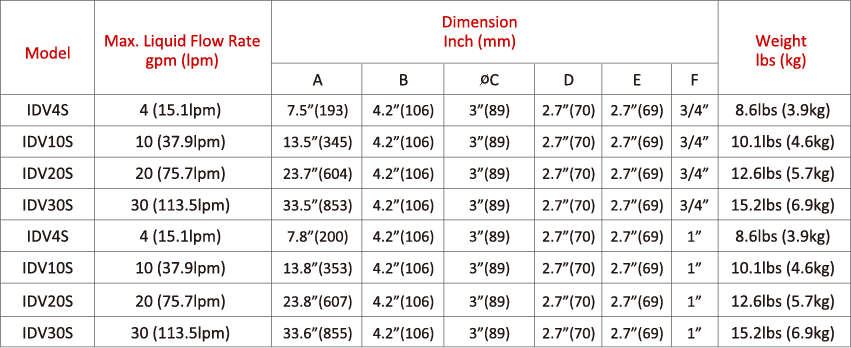

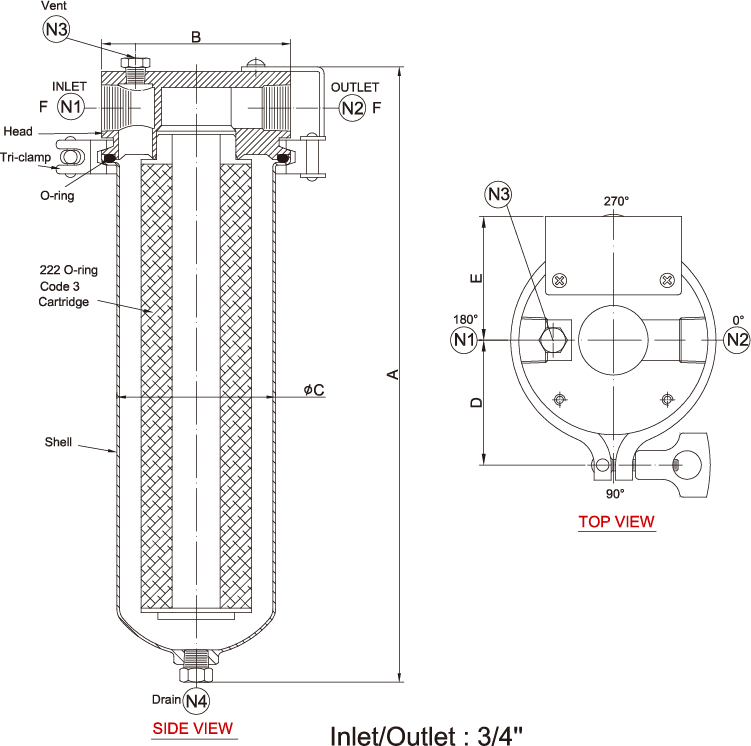

Dimension
Inlet/ Outlet: 3/4", 1" F.NPT
Vent / Gauge: 1/8" F.NPT
Drain: 1/4" F.NPT
Performance Specifications
Maximum Operating Pressure: 175 psig (12.1 bar) @ 77°F (25°C)
