CSV Series

Filtrafine CSV series filter housing is compatible with Filtrafine FasClean-Flow filter cartridge to attain high flow service and longer life time in TFT-LCD G7 and G8 application.

The housing inlet and outlet connection are aligned in T-style for quick and easy installation.

Friendly band closure provides positive sealing with fast cartridge change-out.
Model : CSV

The CSV series filter housing is available in stainless steel 304, 316 and 316L material of construction for maximum corrosive resistance.







Materials of Construction
Head: 304, 316 or 316L Stainless Steel
Shell: 304, 316 or 316L Stainless Steel
Clamp: 304 Stainless Steel
Gaskets / O-rings: Standard: EPDM
                                 Optional: Silicone, Teflon Encapsulated Silicone, Viton

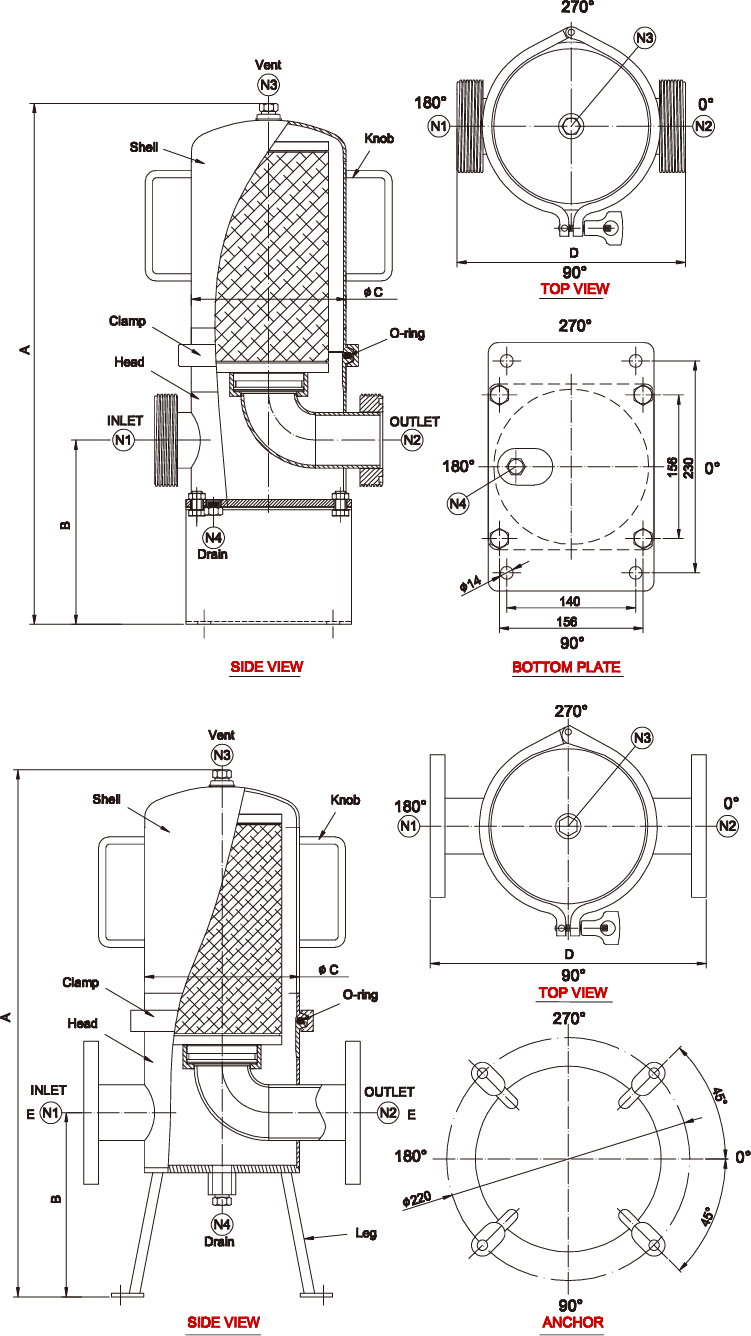

Dimensions

Inlet/ Outlet: 2" Ferrule End
Connection Types: Flanged: ANSI, JIS, and DIN
                               Threaded: NPT, BSP, PT or Union
Vent : 1/2" NPT
Drain: 1/2" NPT


Performance Specifications
Maximum Operating Pressure: 100 psig (7 bar) @ 77°F (25°C) in liquid service
