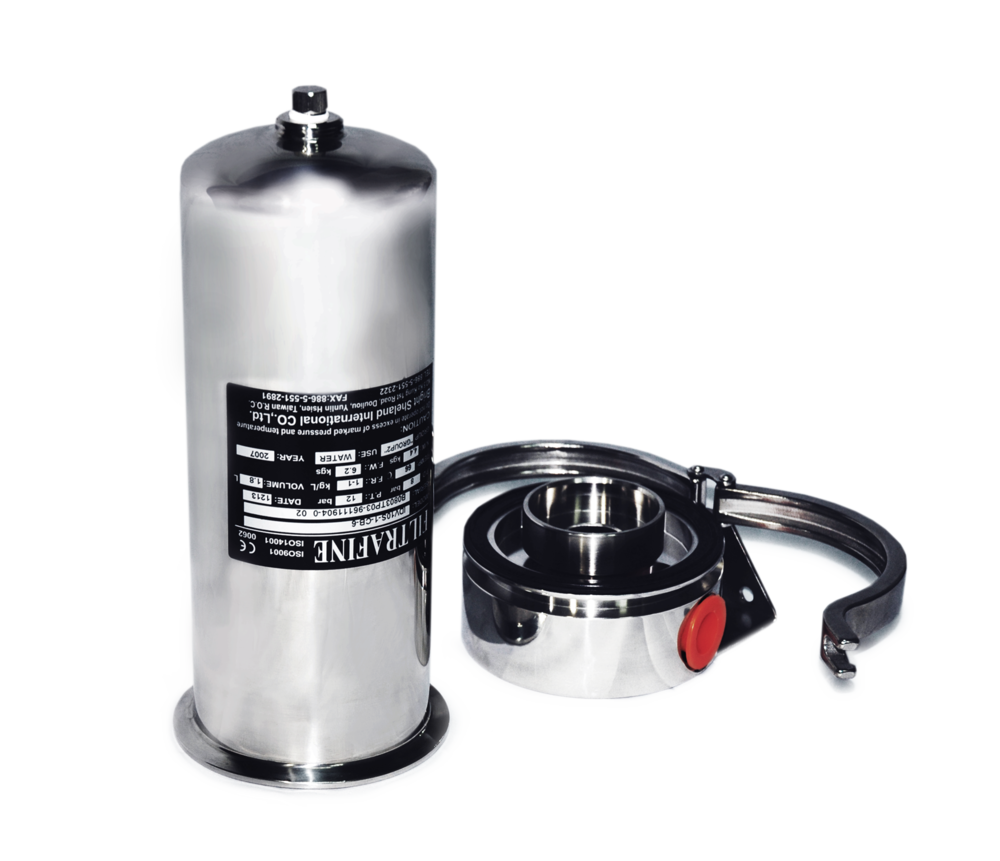

IDV-6 Series
Filtrafine IDV-6 series is a single cartridge housing which can accommodate Filtrafine Mega-Flow series filter cartridge.
IDV-6 is specially designed to meet the critical requirements in TFT-LCD industry.
Also, IDV-6 series is available in electro-polished stainless steel 316 to meet a wide range of liquid filtration applications.
IDV-6 is specially designed to meet the critical requirements in TFT-LCD industry.
Also, IDV-6 series is available in electro-polished stainless steel 316 to meet a wide range of liquid filtration applications.
Model :
IDV-6
The Tri-clamp closure design provides absolute cartridge sealing to avoid fluid bypass and change out cartridge quickly without any tools.
The robust IDV-6 series filter housing has no internal part and can accommodate 10" or 20" length, 226 o-ring, flat closed end cartridge.
The robust IDV-6 series filter housing has no internal part and can accommodate 10" or 20" length, 226 o-ring, flat closed end cartridge.
Material of Construction
Head: 316 Stainless Steel
Shell: 316 Stainless Steel
Mounting Bracket: 304 Stainless Steel
Gaskets / O-rings: Standard: Viton
Optional: EPDM, Teflon Encapsulated Viton

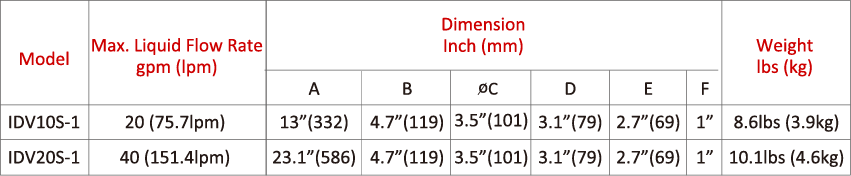

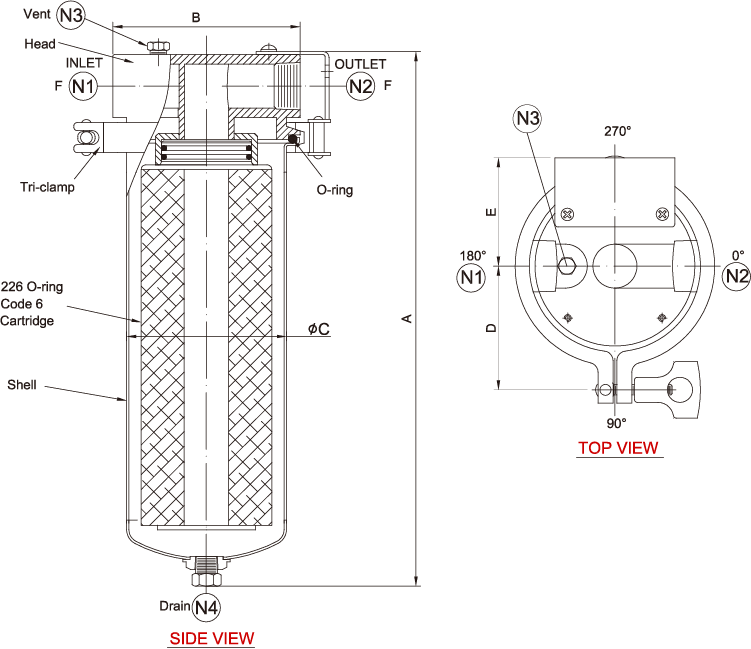

Dimensions
Inlet/ Outlet: 1" F.NPT
Vent / Gauge: 1/8" F.NPT
Drain: 1/4" F.NPT
Performance Specifications
Maximum Operating Pressure: 175 psig (12.1 bar) @ 77°F (25°C)
