POLY-ADCT A Series

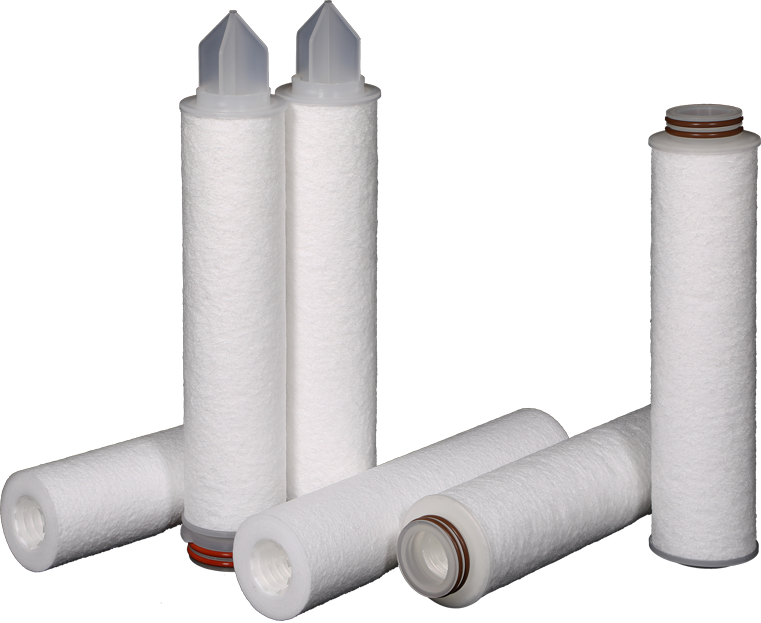

PATA series filter cartridge
With polypropylene center core which enhances mechanical strength
Absolute rated 99.98% efficiency with retention
・ Type: Melt Blown Depth Filter
・ Media: Polypropylene Resin
・ Length: 10”~50”
・ Retention Rate: 0.5~100 μm (Absolute)
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
With polypropylene center core which enhances mechanical strength
Absolute rated 99.98% efficiency with retention
・ Type: Melt Blown Depth Filter
・ Media: Polypropylene Resin
・ Length: 10”~50”
・ Retention Rate: 0.5~100 μm (Absolute)
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
Model :
PATA
Materials of Construction
Filter Media: FDA graded Melt Blown Polypropylene
End Caps: Polypropylene
Gaskets/O-Rings: PE Gaskets, Silicone, Buna-N, EPDM, Viton
Operating Conditions
Maximum Differential Pressure:
50 psid (3.45 bar) @ ambient
25 psid (1.72 bar) @ 140°F (60°C)
Recommended Change Out Differential Pressure: 35 psid (2.4 bar)
It has an excellent advantage of non-fiber releasing, which indeed delivers superior performance.
In addition, each PATA cartridge has a polypropylene center core which enhances mechanical strength to the cartridge.
This series is commonly used in Food & Beverage industry.
RoHS, NSF42, NSF61, FDA, Halal Certificated

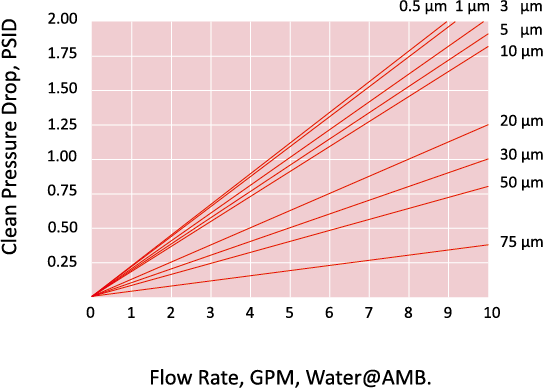

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.
Dimensions
Outside Diameter: 2.5" (63mm)
Inside Diameter: 1.1" (28mm)
Lengths: 10", 20", 30", 40"
Retention Ratings
0.5, 1, 3, 5, 10, 20, 30, 50, 75 µm Absolute
Operating Conditions
Maximum Operating Temperature:167°F (75°C)
Recommended Change Out Differential Pressure: 35 psid (2.4 bar)
