Electron-Fine A Series

ECO A series filter cartridge
Utilize continuous fiber matrix to prevent media migration and ensure consistent performance, and with proprietary center core to enhance mechanical strength of cartridge.
Absolute rated 99% efficiency with retention.

・ Type: Depth Spun Filter Cartridge
・ Media: Continuous Fiber of Polypropylene
・ Length: 10”~40”
・ Retention Rate: 1~30 μm (Absolute)
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
・ application on Ultrapure Water
Model : ECOA

Materials of Construction
Filter Media: Depth Spun Polypropylene
End Caps(DOE): Foam Polypropylene
End Caps(SOE): Polypropylene
Extended Core: Polypropylene
Gaskets/O-Rings: Silicone, Buna-N, EPDM, Viton

Operating Conditions

Maximum Differential Pressure: 50 psid (3.45 bar) @ ambient

                                                   25 psid (1.72 bar) @ 140°F (60°C)

Maximum Differential Temperature: 180°F (82°C)

Recommended Change Out Differential Pressure: 35psid (2.4 bar)


RoHS, FDA, Halal Certificated

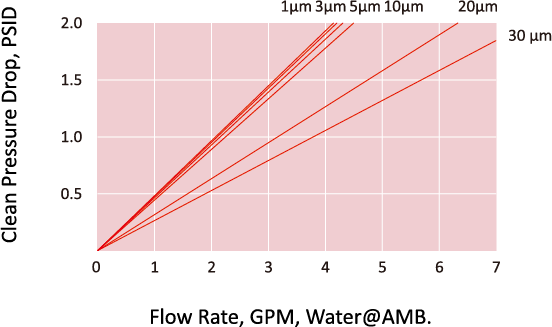

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.



Dimensions

Outside Diameter: 2.5" (63mm)
Inside Diameter: 1.1" (28mm)
Lengths: 10", 20", 30", 40"


End Configuration

No Symbol = DOE without endcap

Code 3 = 222 / flat

Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet


Retention Ratings

1, 3, 5, 10, 20, 30 µm Absolute

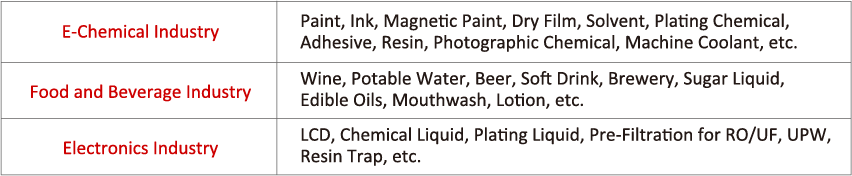

Applications
