Clear-Fine Series

Clear-Fine series filter cartridges ultilize continuous fiber matrix to prevent media migration and ensure consistent filtration performance.

They are made with proprietary center core to enhance mechanical strength of cartridge.

Each Clear-Fine series cartridge is thermal bonded with foam PE gaskets for better sealing.

RoHS, FDA, Halal Certificated
Model : CLF

Materials of Construction
Filter Media: Depth Spun Polypropylene
Center Core: Polypropylene
End Caps(DOE): Polyethylene Foam
End Caps(SOE): Polypropylene
O-Rings: Silicone, Buna-N, EPDM, Viton

Operating Conditions
Maximum Differential Temperature:
158°F (70°C) with polypropylene core
194°F (90°C) with reinforced polypropylene core
Recommended Change Out Differential Pressure: 35psid (2.4 bar)

RoHS, FDA, Halal Certificated

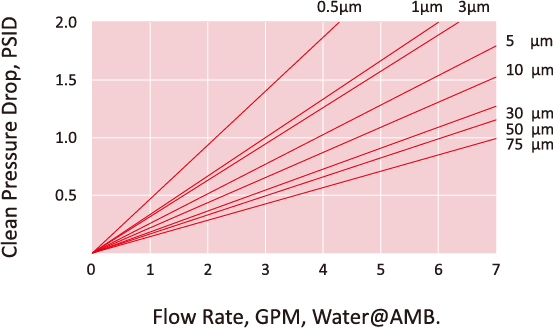

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.



Dimensions
Outside Diameter: 2.5" (63mm)
Inside Diameter: 1.1" (28mm)
Lengths: 10", 20", 30", 40"

End Configuration
No Symbol = DOE without endcap
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet

Retention Ratings
0.5, 1, 3, 5, 10, 30, 50, 75 µm Absolute

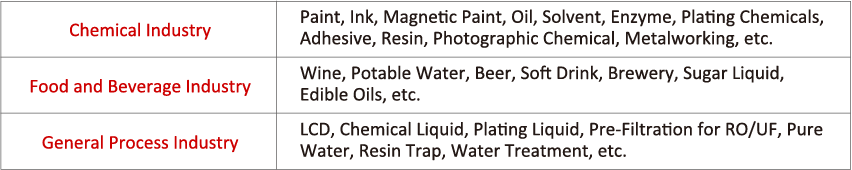

Applications
