MSB Series

Filtrafine MSB series is stainless steel Multi-bags filter housing.

It provides high-volume solutions for high flow applications.

The MSB series housing is available to accommodate 2 to 12 bags and Size 1 or Size 2 length filter bags.
Model : MSB

The MSB series is designed with a proven swing eye bolt closure mechanism to ensure sealing and provides user friendly davit arm assisted, spring assisted cover or hydraulic assisted cover lifting mechanism to eliminate the tool needs while filter bag change-out.

Stainless steel 304, 316 or 316L material construction gives excellent resistance to corrosive for product purity.


ASME Code

ASME U/UM stamp optional for USA pressure vessel standard.

CE Standard
CE-PED Certificate for Europe pressure vessel standard.

GB Standard
GB certificate for China pressure vessel standard.






Materials of Construction


Head: 304, 316 or 316L Stainless Steel

Shell: 304, 316 or 316L Stainless Steel

Vent Cup: 304, 316 or 316L Stainless Steel

Internal Components: 304, 316 or 316L Stainless Steel

Shell O-rings: Standard: EPDM

                       Optional: Silicone, Teflon Encapsulated Viton, Viton

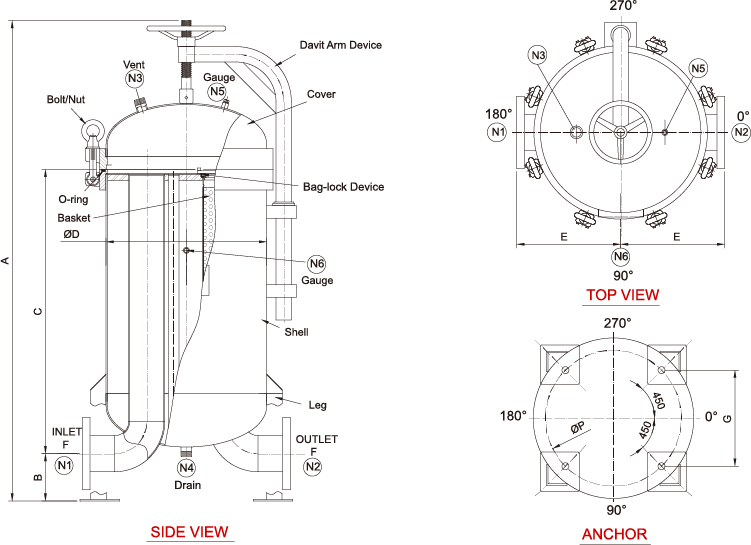

Dimensions
Inlet/ Outlet: 3', 4', 5', 6', 8', 10', 12' ANSI Flange
Vent / Drain : 1" NPT
Guage: 1/4" NPT
Optional Connection: JIS, DIN Flange


Maximum Operating Pressure

150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
