MFB Series

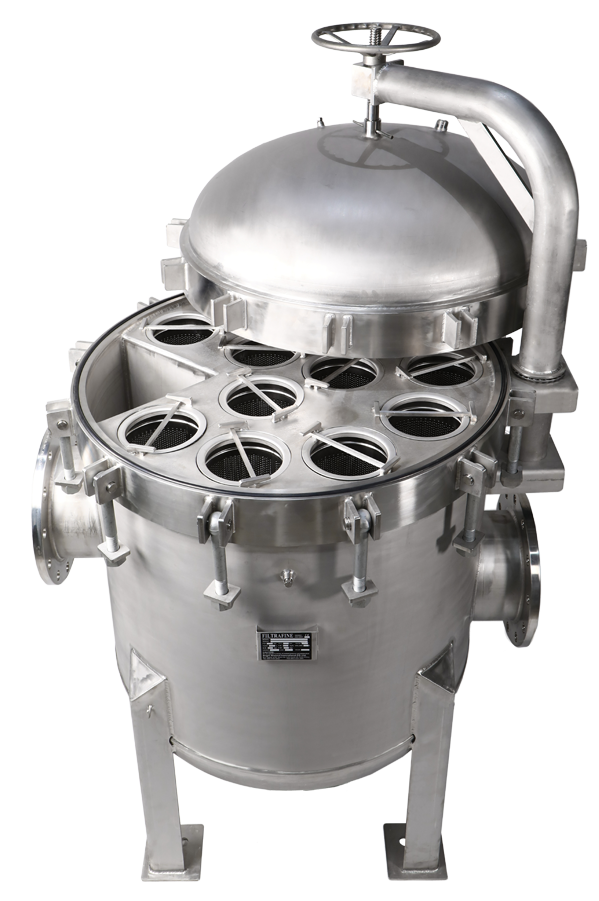

Filtrafine MFB series is stainless steel Multi-bags filter housing.

It provides high-volume solutions for high flow applications.

The MFB series housing is available to accommodate 2 to 22 bags and Size 1 or Size 2 length filter bags to handle up to 880 m3/hr per housing.

Economical side-in and side-out connection and low profile design meet user various installation requirements.
Model : MFB

The MFB series is designed with a proven swing eye bolt closure mechanism to ensure sealing and provides user friendly davit arm assisted, spring assisted cover or hydraulic assisted cover lifting mechanism to eliminate the tool needs while filter bag change-out.

Stainless steel 304, 316 or 316L material construction gives excellent resistance to corrosive for product purity.



ASME Code

ASME U/UM stamp optional for USA pressure vessel standard.

CE Standard
CE-PED Certificate for Europe pressure vessel standard.

GB Standard
GB certificate for China pressure vessel standard.






Materials of Construction
Head: 304, 316 or 316L Stainless Steel
Shell: 304, 316 or 316L Stainless Steel
Vent Cup: 304, 316 or 316L Stainless Steel
Internal Components: 304, 316 or 316L Stainless Steel
Shell O-rings: Standard: EPDM
                       Optional: Silicone, Teflon Encapsulated Viton, Viton

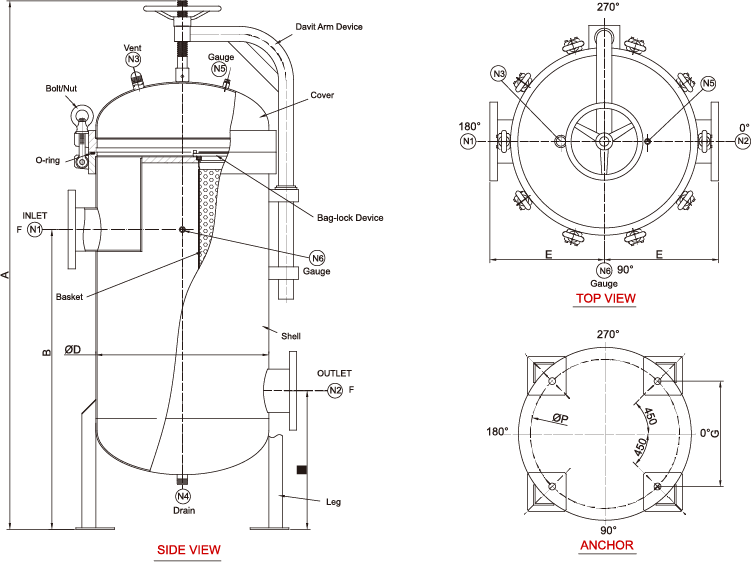

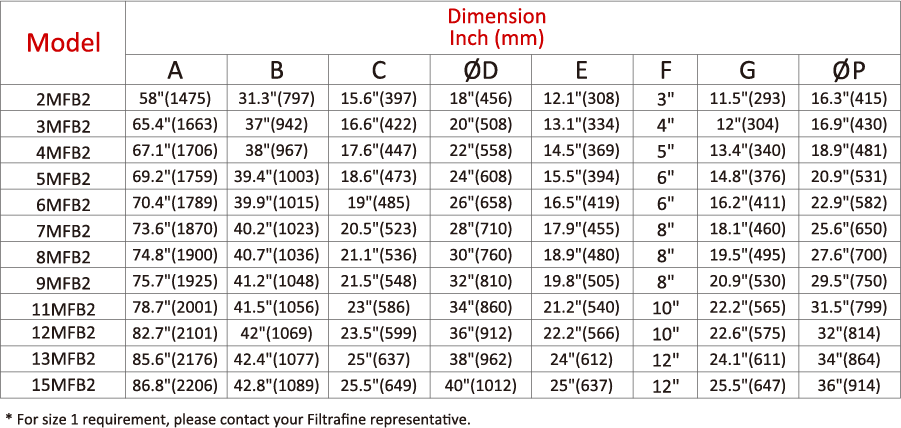

Dimensions

Inlet/ Outlet: 3', 4', 5', 6', 8', 10', 12' ANSI Flange

Vent / Drain : 1" NPT

Guage: 1/4" NPT

Optional Connection: JIS, DIN Flange


Maximum Operating Pressure

150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
