FSB Side Entry Series
Filtrafine FSB-S series side entry is stainless steel single bag filter housing.
It provides economical filtration options with a wide range of applications, such as RO pre-filtration, waste water treatment, food and beverage and so on.
The side inlet promotes more uniform flow rate delivering that improves filtration results.
The FSB-S series is designed with a proven swing eye bolt closure mechanism to ensures sealing.
It provides economical filtration options with a wide range of applications, such as RO pre-filtration, waste water treatment, food and beverage and so on.
The side inlet promotes more uniform flow rate delivering that improves filtration results.
The FSB-S series is designed with a proven swing eye bolt closure mechanism to ensures sealing.
Model :
FSB-S
Stainless steel 304, 316 or 316L material gives excellent resistance to corrosive for product purity.
FSB-S series has adjustable lags which provides flexibility for installation orientation and height.
Materials of Construction
Head: 304 or 316 Stainless Steel
Shell: 304 or 316 Stainless Steel
Vent Cup: 304 or 316 Stainless Steel
Internal Components: 304 or 316 Stainless Steel
Shell O-rings: Standard: EPDM
Optional: Silicone, Teflon Encapsulated Viton, Viton

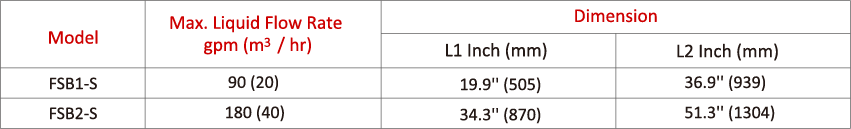

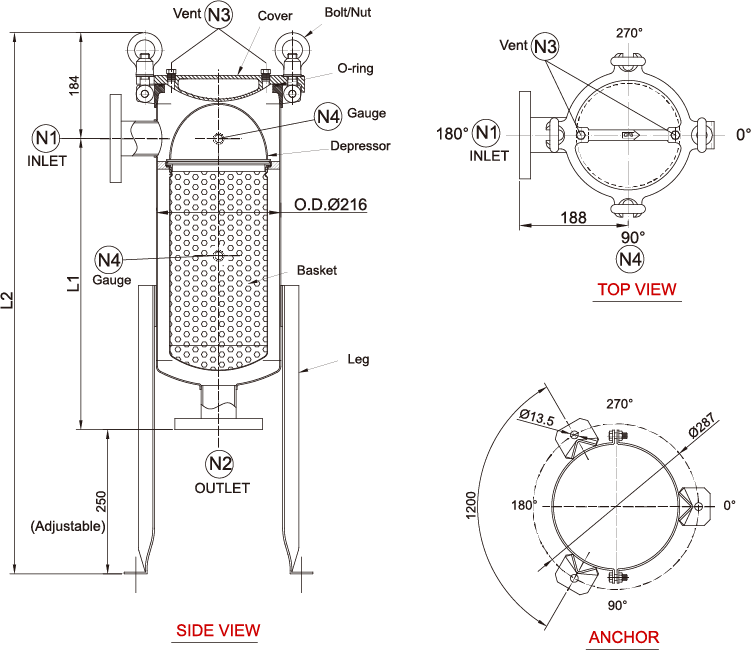

Dimensions
Inlet/ Outlet: 2' NPT, ANSI Flanged
Vent : 1/4" NPT
Guage: 1/4" NPT
Optional Connection: JIS, DIN Flanged, PT, BSP Thread
Maximum Operating Pressure
150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
