FSB Side Entry M Series
Filtrafine FSB-M series is side entry stainless steel single bag filter housing.
It provides economical filtration options with a wide range applications, such as RO Pre-filtration, waste water treatment, food and beverage and so on.
The side inlet promotes uniform flow rate delivering that improves filtration results.
Its machine cutting cover could be customized to meet clients' various high pressure demands.
The FSB-M series is designed with a proven swing eye bolt closure mechanism to ensure sealing.
It provides economical filtration options with a wide range applications, such as RO Pre-filtration, waste water treatment, food and beverage and so on.
The side inlet promotes uniform flow rate delivering that improves filtration results.
Its machine cutting cover could be customized to meet clients' various high pressure demands.
The FSB-M series is designed with a proven swing eye bolt closure mechanism to ensure sealing.
Model :
FSB-M
Stainless steel 304, 316 or 316L material construction gives excellent resistance to corrosive for product purity.
FSB-M series has adjustable lags which provides flexibility for installation orientation and height.
ASME Code
ASME U/UM stamp optional for USA pressure vessel standard.
CE Standard
CE-PED Certificate for Europe pressure vessel standard.
GB Standard
GB certificate for China pressure vessel standard.
Materials of Construction
Head: 304 or 316 Stainless Steel
Shell: 304 or 316 Stainless Steel
Vent Cup: 304 or 316 Stainless Steel
Internal Components: 304 or 316 Stainless Steel
Shell O-rings: Standard: EPDM
Optional: Silicone, Teflon Encapsulated Viton, Viton

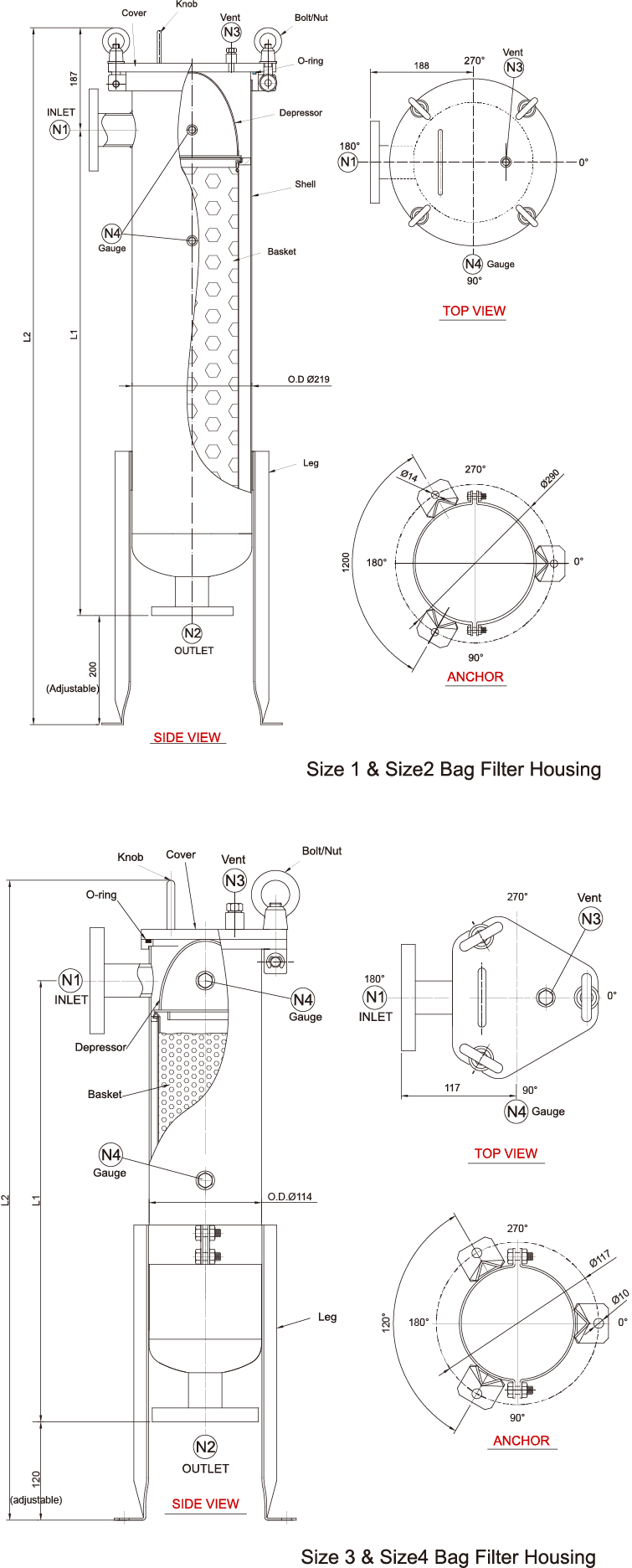

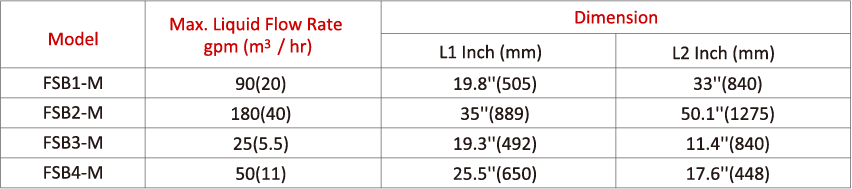

Dimensions
Inlet/ Outlet: 2', 3" NPT, ANSI Flanged
Vent : 1/4" NPT
Guage: 1/4" NPT
Optional Connection: JIS, DIN Flanged, PT, BSP Thread
Maximum Operating Pressure
150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
