MQB Series

Filtrafine MQB series is stainless steel Multi-bags filter housing.

It provides high-volume solutions for high flow applications.

The MQB series housings is available to accommodate 3 to 12 bags and Size 1 or Size 2 length filter bags.

User friendly low profile housing design allows installation in confined spaces and eliminates the need of ladder, stool and catwalk.
Model : MQB

The MQB series is designed with a proven swing eye bolt closure mechanism to ensure sealing, and offers innovative rapid open cover lifting mechanism to provide quick and easy filter bags, especially for the process which requires frequent change-out.



Stainless steel 304, 316 or 316L material construction gives excellent resistance to corrosive for product purity.


ASME Code

ASME U/UM stamp optional for USA pressure vessel standard.

CE Standard
CE-PED Certificate for Europe pressure vessel standard.

GB Standard
GB certificate for China pressure vessel standard.







Materials of Construction
Head: 304, 316 or 316L Stainless Steel
Shell: 304, 316 or 316L Stainless Steel
Vent Cup: 304, 316 or 316L Stainless Steel
Internal Components: 304, 316 or 316L Stainless Steel
Shell O-rings: Standard: EPDM
                       Optional: Silicone, Teflon Encapsulated Viton, Viton

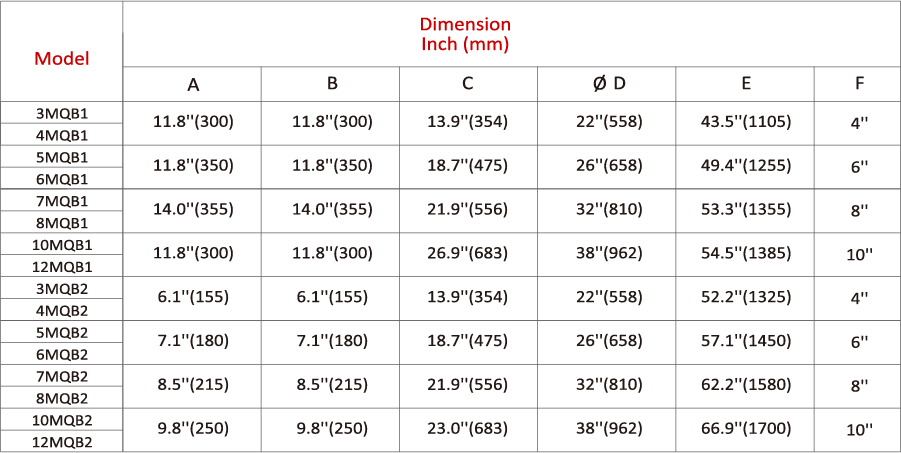

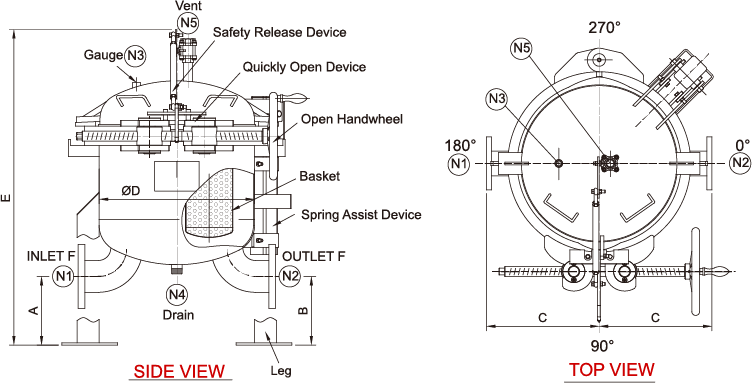

Dimensions
Inlet/ Outlet: 4', 6', 8', 10', 12' ANSI Flange
Vent / Drain : 1" NPT
Guage: 1/4" NPT
Optional Connection: JIS, DIN Flange

Maximum Operating Pressure
150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
