FSB Top Entry Series
Filtrafine FSB-T series is top entry stainless steel single bag filter housing.
Provides economical filtration options with a wide range of applications, such as RO Pre-filtration, waste water treatment, food and beverage and so on.
The top inlet promotes more uniform flow rate delivering improved filtration results. Its double o-rings sealing enhance better sealing solution.
The FSB-T series is designed with a proven swing eye bolt closure mechanism to ensure sealing.
Provides economical filtration options with a wide range of applications, such as RO Pre-filtration, waste water treatment, food and beverage and so on.
The top inlet promotes more uniform flow rate delivering improved filtration results. Its double o-rings sealing enhance better sealing solution.
The FSB-T series is designed with a proven swing eye bolt closure mechanism to ensure sealing.
Model :
FSB-T
Stainless steel 304, 316 or 316L material gives excellent resistance to corrosive for product purity.
FSB-T series has adjustable lags which provides flexibility for installation
FSB-T series has adjustable lags which provides flexibility for installation
Materials of Construction
Head: 304 or 316 Stainless Steel
Shell: 304 or 316 Stainless Steel
Vent Cup: 304 or 316 Stainless Steel
Internal Components: 304 or 316 Stainless Steel
Shell O-rings: Standard: EPDM
Optional: Silicone, Teflon Encapsulated Viton, Viton

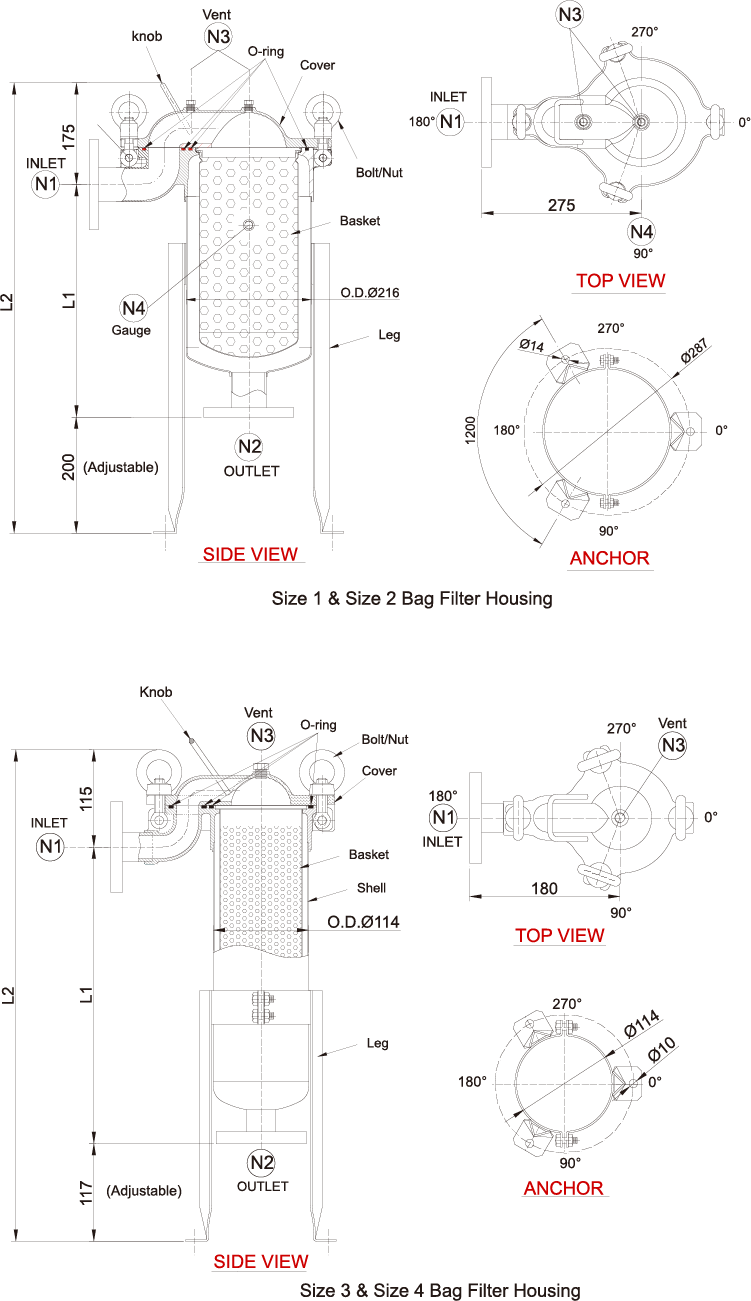

Dimensions
Inlet/ Outlet: 1' for #3 and #4 Housing FNPT, ANSI Flanged
2' for #1 and #2 Housing NPT, ANSI Flanged
Vent : 1/4" NPT
Drain: 3/4" NPT
Optional Connection: JIS, DIN Flanged, PT, BSP
Maximum Operating Pressure
150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
