Mega-Flow Series

Filtrafine Mega-Flow series has large surface area for high flow filtration, which is compatible with Filtrafine TFT series housing.

It is ideally suitable for most LCD and TFT wet processing applications and filtration of high purity water.

The compact cartridge design of Mega-Flow series offers long on-stream life to reduce equipment down-time and maintenance costs.

RoHS, FDA, Halal Certificated
Model : MEP

Materials of Construction

Filter Media:

  • MEP: High Flow Melt Blown Polypropylene
  • MES: Highly Asymmetric PES Membrane
  • MEF: Expanded Polytetrafluoro-ethylene (ePTFE) Membrane

Hardware: High Purity Polypropylene

Sealing: Thermal Bond

Support Material: Polypropylene

Gaskets/ O-rings: Silicone, Buna-N, EPDM, Viton, Telfon Encapsulated Viton


Operating Conditions

Maximum Operating Temperature: 168°F (75°C)

Recommended Change Out Differential Pressure: 35 psid (2.4 bar)


RoHS, FDA, Halal Certificated
Manufactured in a class 1,000 clean room.

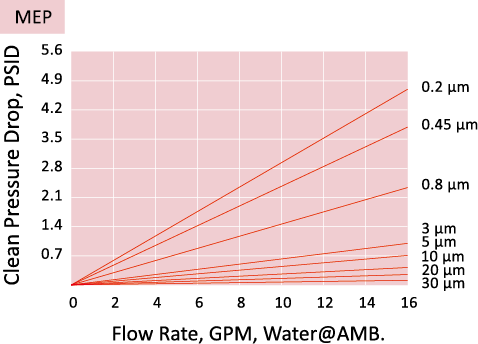

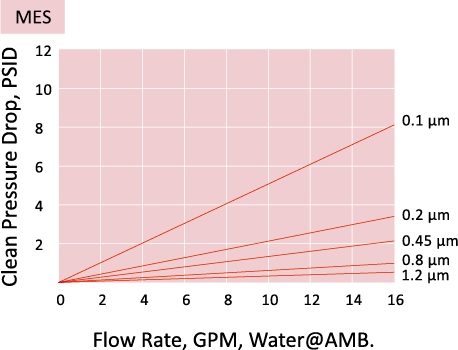

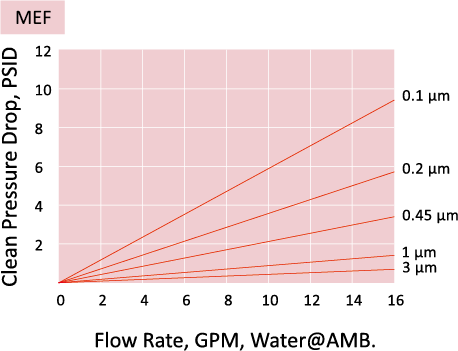

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.


Dimensions
Outside Diameter: 3.2" (83mm)
Lengths: 10", 20"

End Configuration
Code 3 = 222 / flat
Code 6 = 226 / flat

Retention Ratings
MEP(PP Media): 0.2, 0.45, 0.8, 3, 5, 10, 20, 30 µm
MES(PES Membrane): 0.1, 0.2, 0.45, 0.8, 1.2 µm
MEF(PTFE Membrane): 0.1, 0.2, 0.45, 1, 3 µm
