Pleated-Flow Series

Pleated-Flow series filter cartridge is produced with a rigid center core which enhances structural strength of cartridge.

The cartridges are all polypropylene construction which provides wide chemical compatibility.

Pleated-Flow series filters ultilize proprietary filter media with fixed pore construction to deliver highly consistent performance and resist dirt unloading at maximum differential pressure.

RoHS, FDA, Halal Certificated
Model : PLT

Materials of Construction

Filter Media: Polypropylene

Hardware: Polypropylene

Sealing: Thermal Bond

Support Material: Polypropylene

Gaskets/ O-rings: Silicone, Buna-N, EPDM, Viton, Telfon Encapsulated Viton


Operating Conditions

Maximum Operating Pressure:
75 psid (5.1 bar) @ 68°F (20°C)

40 psid (2.8 bar) @ 150°F (65°C)

Maximum Operating Temperature: 167°F (75°C)

Recommended Change Out Differential Pressure: 35 psid (2.4 bar)


RoHS, FDA, Halal Certificated

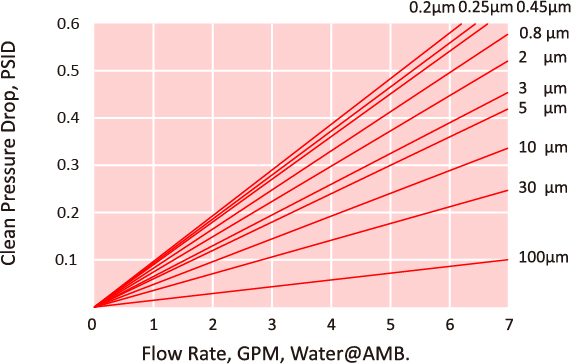

Flow rate is per 10
" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.

Dimensions

Outside Diameter: 2.67" (68mm)

Lengths: 10", 20", 30", 40"


End Configuration
DOE = Double open end
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet


Retention Ratings

0.2, 0.25, 0.45, 0.8, 2, 3, 5, 10, 30, 100 µm
