Capsule Series

Filtrafine capsule series disposal filter's compact design permits efficient filter change-out to reduce equipment down-time and maintenance costs.

The easy change-out structure is suitable for high pure water or toxic chemical.

Each filter element stamped with pore size, lot and serial number for identification and traceability.

RoHS, FDA, Halal Certificated
Model : RFC

Materials of Construction

Filter Media:Polypropylene, PES, PTFE

Hardware: Polypropylene

Sealing: Thermal Bond

Support Material: Polypropylene


Operating Conditions

Maximum Operating Pressure: 60 psid (4.1 bar) @ 77°F (25°C)

Maximum Operating Temperature: 140°F (60°C)

RoHS, FDA, Halal Certificated

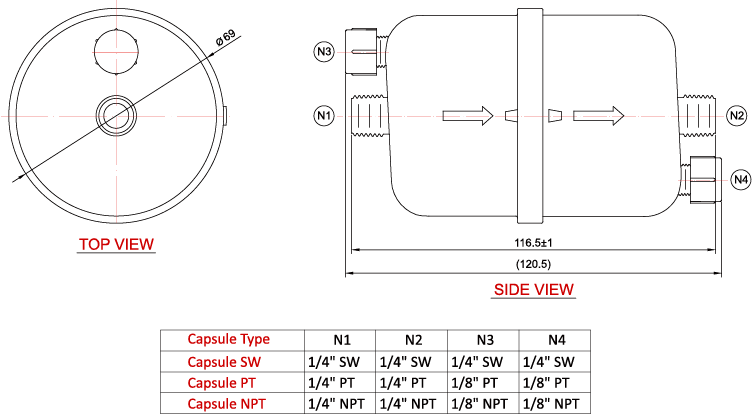

Dimensions
Outside Diameter: 2.7"
Inlet/ Outlet: 1/4" PT, NPT, SW
Vent: 1/8" PT, NPT ; 1/4" SW
Drain: 1/8" PT, NPT ; 1/4" SW

Retention Ratings

PP: 0.2, 0.45, 0.8, 1, 2, 3, 5, 10, 30, 100 µm

PES: 0.04, 0.1, 0.2, 0.45, 0.8, 1.2 µm Absolute

PTFE: 0.05, 0.1, 0.2 µm Absolute
