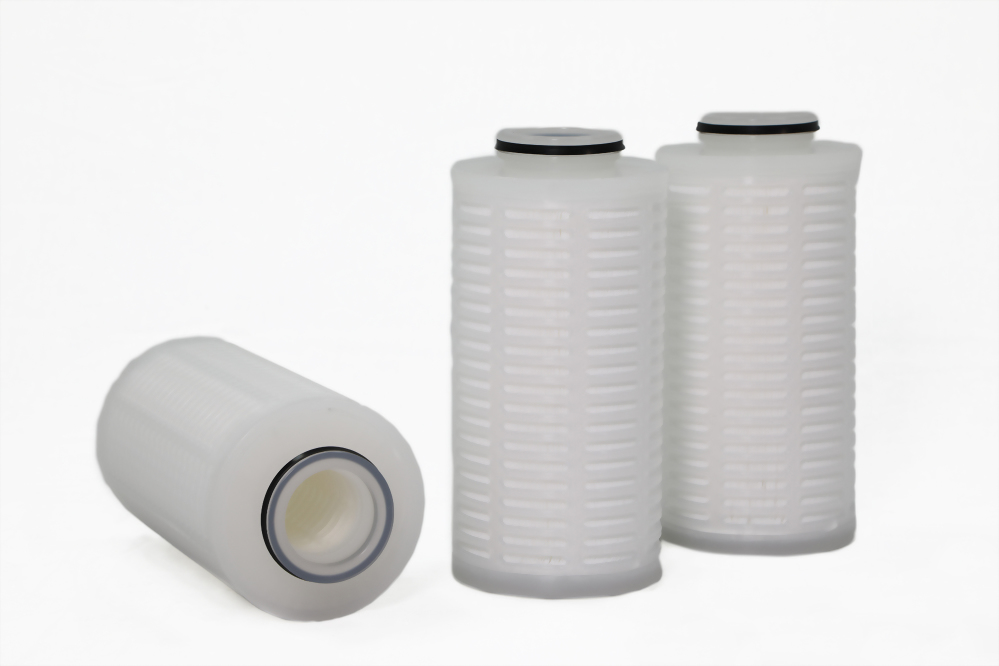

FasClean-Flow Series

FasClean-Flow series filter cartridge have extra high surface area for high flow filtration, which is compatible with Filtrafine CSV and TFT-334 series filter housing.

It is commonly a superior choice for generation 7 & 8 TFT-LCD glass cleaning and high-end wet processing applicaitons.

The compact cartridge design of FasClean-Flow series permits long on-stream life to reduce equipment down-time and maintenance costs.

RoHS, FDA, Halal Certificated
Model : FCF

Materials of Construction

Filter Media:

  • E: Depth Melt Blown Polypropylene
  • P: High Flow Melt Blown Polypropylene
  • S: Highly Asymmetric PES Membrane
  • T: Expanded Polytetrafluoro-ethylene (ePTFE) Membrane

Hardware: High Purity Polypropylene
Sealing: Thermal Bond
Support Material: Polypropylene
Gaskets/ O-rings: EPDM, Viton, Telfon Encapsulated Viton


Operating Conditions

Maximum Operating Temperature: 168°F (75°C)

Recommended Change Out Differential Pressure: 35 psid (2.4 bar)


RoHS, FDA, Halal Certificated

Manufactured in a class 1,000 clean room.

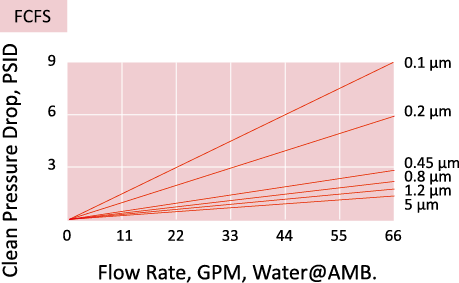

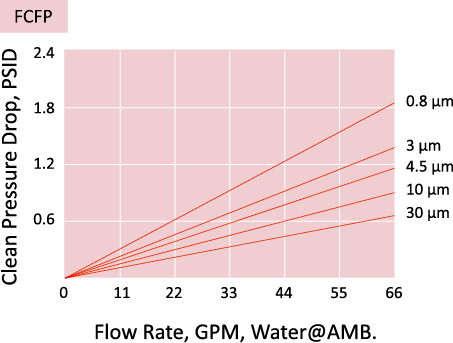

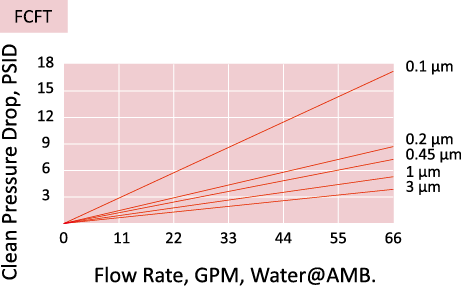

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.








Dimensions
Outside Diameter: 5.16" (131mm)
Lengths: 10"

End Configuration
334 = Flat Closed End


Retention Ratings

FCFE: 1, 2, 5, 10, 20 µm Absolute

FCFP: 0.8, 3, 4.5, 10, 30 µm

FCFS: 0.1, 0.2, 0.45, 0.8, 1.2, 5 µm Absolute

FCFT: 0.1, 0.2, 0.45, 1, 3, 5 µm Absolute
