BGPF Series
BGPF series utilizes micro fiber glass media, which increases dirt holding capacity and provides consistent filtration efficiency.
The reinforced outer cage and center core make BGPF provide secure operation through numerous cycles of hot water sanitization, which is typically used in food and beverage industry.
BGPF are especially designed for removal of contaminants like yeasts or other spoilage organisms and work well at pre-filtration stage in wine bottling process.
The reinforced outer cage and center core make BGPF provide secure operation through numerous cycles of hot water sanitization, which is typically used in food and beverage industry.
BGPF are especially designed for removal of contaminants like yeasts or other spoilage organisms and work well at pre-filtration stage in wine bottling process.
Model :
BGPF
BGPF enables to protect and prolong the life time of final, high-value membrane filters.
Manufactured under a certified ISO 9001 quality system. Manufactured in class 10,000 clean room.
RoHS, FDA, Halal Certificated

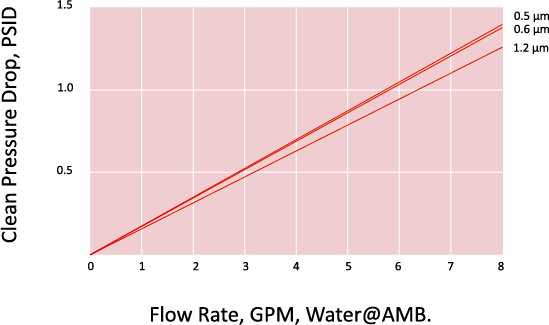

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.
Materials of Construction
Filter Media: Fiber Glass
Hardware: Polypropylene
Sealing: Thermal Bond
Support Material: Polyester
Gaskets/ O-rings: Silicone
Dimensions
Outside Diameter: 2.8' (71mm)
Lengths: 10', 20', 30', 40'
Retention Ratings
0.5, 0.6, 1.2 µm Absolute
Operating Conditions
Maximum Operating Pressure: 75 psid (5.1 bar) @ 68°F (20°C)
40 psid (2.8 bar) @ 150°F (65°C)
Sanitization & Sterilization: Hot Water @ 90°C for 30 min.
