Wound-Fine Series

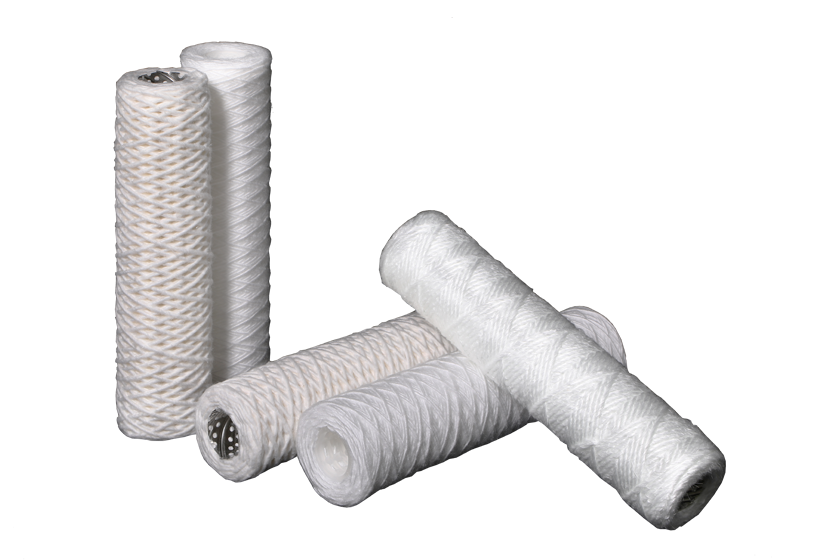

WF series filter cartridge
- Graded pore structure provides efficient removal of a wide range of particle sizes
- Wrapped center core helps to minimize fiber migration
・ Type: String Wound Filter
・ Material: PP / Cotton / Glass Fiber
・ Length: 10”~70”
・ Retention Rate: 0.5~100 μm
・ End cap and extended core configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
- Graded pore structure provides efficient removal of a wide range of particle sizes
- Wrapped center core helps to minimize fiber migration
・ Type: String Wound Filter
・ Material: PP / Cotton / Glass Fiber
・ Length: 10”~70”
・ Retention Rate: 0.5~100 μm
・ End cap and extended core configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
Model :
WF
Materials
of Construction
Filter Media: Premium Bleached
Cotton (FDA Listed), Cleaned Polypropylene (FDA Listed), Glass Fiber
Center Core: Polypropylene, 304
Stainless Steel, 316 Stainless Steel
Extended Core Option:
Polypropylene, 304 Stainless Steel, 316 Stainless Steel
Core Cover Option: used to
control migration, compatible with existing fiber
Operating Conditions
Maximum

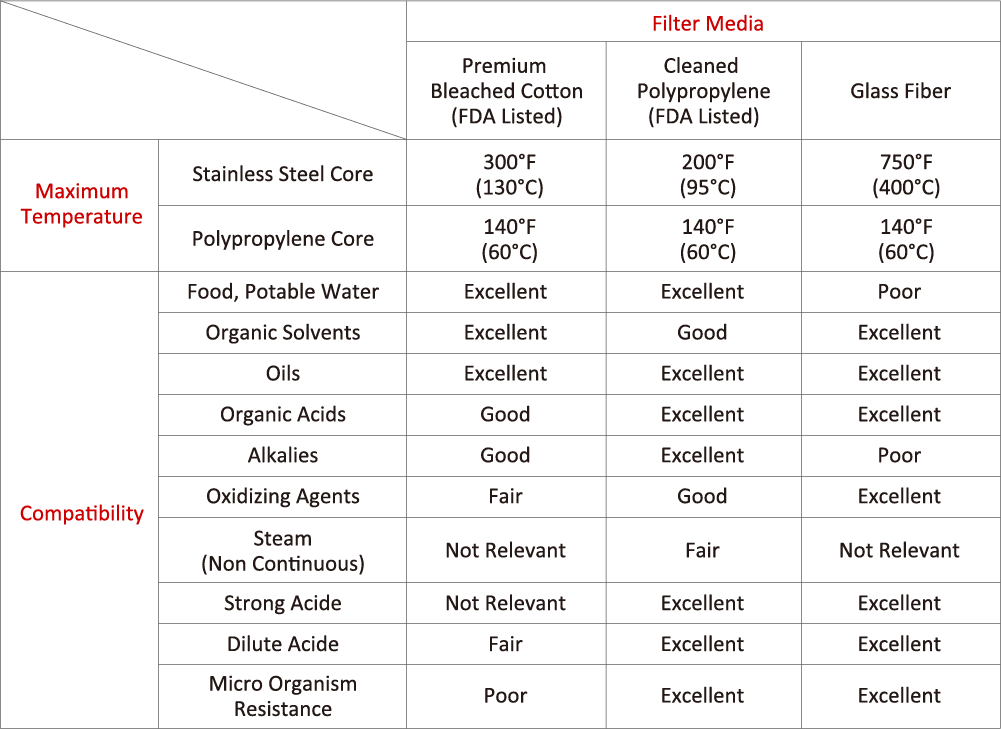

Temperature Ratings: see material selection guide
Dimensions
Outside Diameter: 2.5" (63mm)
Inside Diameter: 1.1" (28mm)
Lengths: 10", 20", 30", 40", 50", 60", 70"
Retention Ratings
Retention Ratings:
PP: 0.5, 1, 5, 10, 20, 50, 75, 100 µm
Cotton: 0.5, 1, 5, 10, 20, 50, 75, 100 µm
Glass Fiber: 1, 5, 10, 20, 50 µm
