Extra-Flow Series

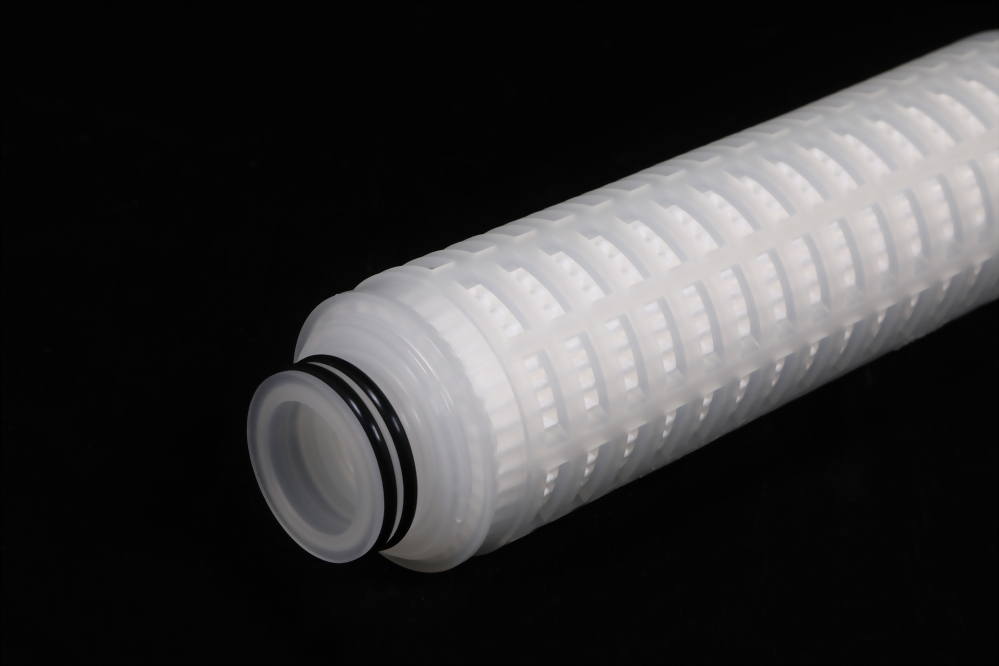

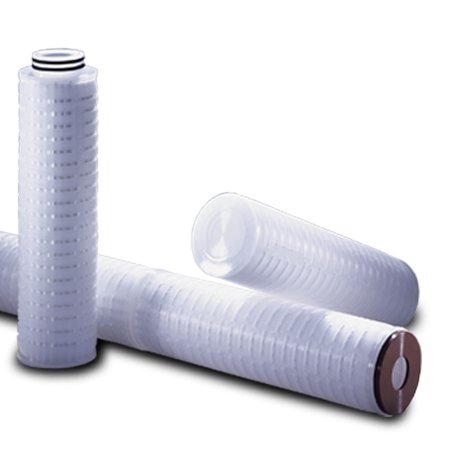

EXA series filter cartridge
With multiple layers and designed for high viscosity or removing gels from liquid
・ Type: Pleated Filter
・ Media: Polypropylene Melt Blown
・ Length: 10”~40”
・ Retention Rate: 1~40 μm (Absolute)
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
With multiple layers and designed for high viscosity or removing gels from liquid
・ Type: Pleated Filter
・ Media: Polypropylene Melt Blown
・ Length: 10”~40”
・ Retention Rate: 1~40 μm (Absolute)
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
Model :
EXA
Materials of Construction
Filter Media: Polypropylene Melt Blown
Hardware: Polypropylene
Cage/ Netting: Polypropylene
Sealing: Thermal Bond
Support Material: Polypropylene
Gaskets/ O-rings: Silicone, Buna-N, EPDM, Viton, Telfon Encapsulated Viton
Operating Conditions
Maximum Differential Pressure:
75 psid (5.1 bar) @ 68°F (20°C)
40 psid (2.8 bar) @ 150°F (65°C)
Maximum Operating Temperature: 180°F (82°C)
Recommended Change Out Differential Pressure: 35psid (2.4 bar)
RoHS, FDA, Halal Certificated

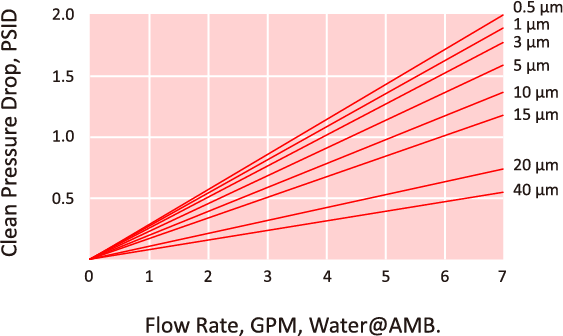

Flow rate is per 10" cartridge. For liquids other than water, multiply the pressure drop by the fluid viscosity in centipoises.
Dimensions
Outside Diameter: 2.67" (68mm)
Lengths: 10", 20", 30", 40"

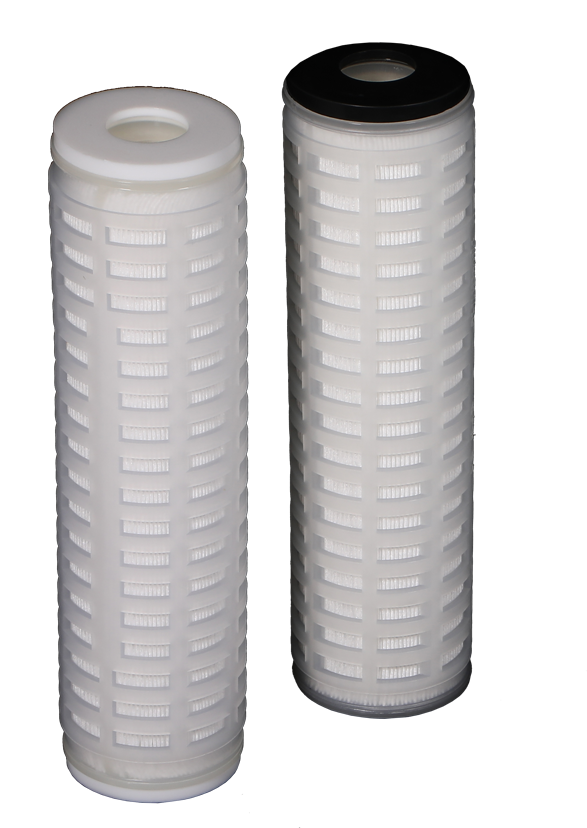

End Configuration
DOE
= Double open end
Code 3 = 222 / flat
Code 8 = 222 / Fin
Code 7 = 226 / Fin, Bayonet
Retention Ratings
1, 3, 5, 10, 15, 20, 40 µm Absolute
