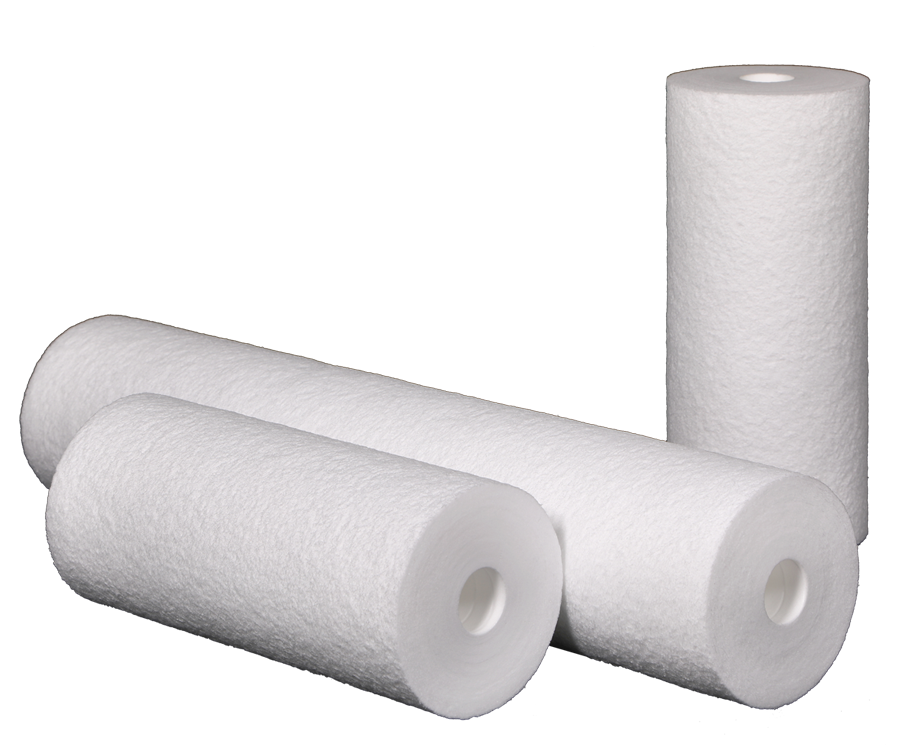

Puris-Fine BB Series
PRS-BB series filter cartridge
With graded pore structure for general particle reduction applications.
Special outside diameter for big blue size housing.
・ Type: Melt Blown Depth Filter
・ Media Polypropylene Resin
・ Length: 10” & 20”
・ Retention Rate: 0.5~20 μm
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
With graded pore structure for general particle reduction applications.
Special outside diameter for big blue size housing.
・ Type: Melt Blown Depth Filter
・ Media Polypropylene Resin
・ Length: 10” & 20”
・ Retention Rate: 0.5~20 μm
・ End cap configuration available
・ RoHS, NSF42, NSF61, FDA, Halal Certificated
Model :
PRS-BB
Materials of Construction
Filter Media: FDA graded Melt Blown Polypropylene
Operating Conditions
Maximum Differential Pressure:
50 psid (3.45 bar) @ ambient
25 psid (1.72 bar) @ 140°F (60°C)
Recommended Change Out Differential Pressure: 35psid (2.4 bar)
RoHS, NSF42, NSF61, FDA, Halal Certificated
Dimensions
Outside Diameter: 4.3" (110mm)
Inside Diameter: 1.1" (28mm)
Lengths: 10", 20"
Retention Ratings
0.5, 1, 3, 5, 10, 20 µm
