Top-Flow Series

Filtrafine Top-Flow Series T Style Filter Housing is compatible with Filtrafine Mega-Flow series filter cartridge, and perform high flow service for TFT-LCD glass cleaning and high end process filtration applications.
Model : TFT

Its 100% virgin polypropylene material is suitable for ultra filtration.

Optional transparent PC (Polycarbonate) housing shell is available for user special requirements.

Top-Flow series housing offers JIS 25A and JIS 40A Union inlet/outlet connection assure high flow needs.



FDA Listed Material

Manufactured from materials which are FDA listed for food contact applications in title 21 of the U.S. code of federal regulations.






Materials of Construction
Head: Pure Virgin Polypropylene – No Talc, Fillers, Plasticizers, Lubricants
Bowl: Standard: Pure Virgin Polypropylene – No Talc, Fillers, Plasticizers, Lubricants
           Optional: PC (Polycarbonate)
Gaskets / O-rings: Standard: Viton
                               Optional: EPDM, Teflon Encapsulated Viton

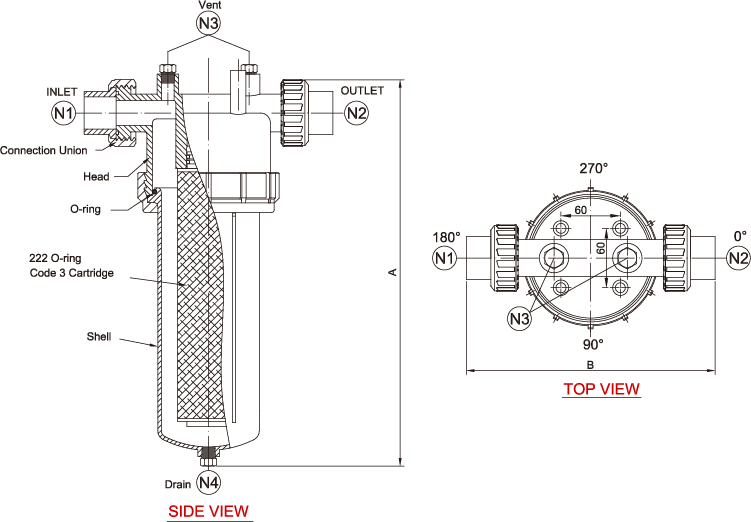

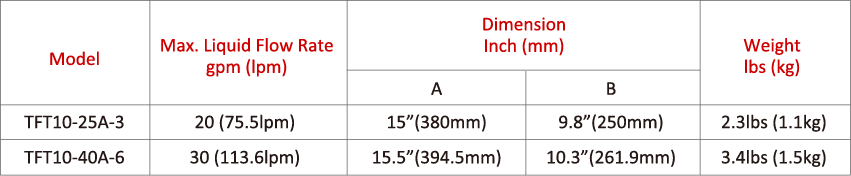

Dimensions
Inlet/ Outlet: JIS 25A, 40A Union
Vent / Gauge: 1/4' PT
Drain: 1/4' PT


Performance Specifications

Maximum Operating Pressure: 100 psig (6.9 bar) @ 77°F (25°C)
