Top-Flow 334 Series

Filtrafine Top-Flow 334 series filter housing is compatible with Filtrafine FasClean-Flow series filter cartridges.

Performs high flow service for generation 8 and 8.5 TFT-LCD glass cleaning and high-end wetting process filtration.

The UPVC material is rigid, durable and compatible with acid and alkaline chemicals.

JIS 50A Union Inlet/outlet connection assures high flow needs.
Model : TFT-334

FDA Listed Material

Manufactured from materials which are FDA listed for food contact applications in title 21 of the U.S. code of federal regulations.



Materials of Construction
Head: Unplasticized Polyvinylchloride (UPVC)
Bowl: Unplasticized Polyvinylchloride (UPVC)
Gaskets / O-rings: Standard: EPDM
                              Optional:  Viton

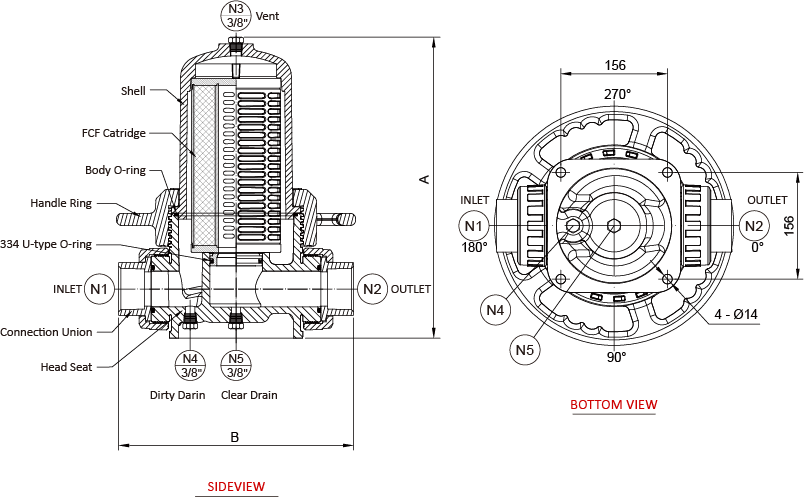

Dimensions
Inlet/ Outlet: JIS 50A Union
Vent / Gauge: 3/8' PT
Drain: 3/8" PT

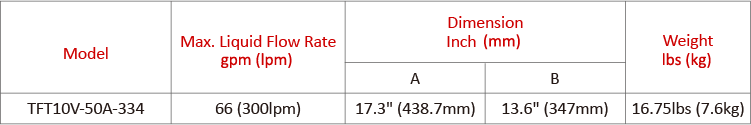

Performance Specifications

Maximum Operating Pressure: 72 psig (5 bar) @122°F (50℃)  in liquid service
