TKV Series

Filtrafine TKV series stainless steel multi-cartridge filter housing provides high level performance for many industrial applications, such as pre-filtration for RO system, food and beverage system, post treatments and so on.

The innovative sealing system offers quick and easy cartridge replacement.
Model : TKV

TKV series filter housing is constructed of stainless steel 304, 316 or 316L materials, it gives excellent resistance to corrosive for product purity.

TKV series housing is compatible with 3, 5 ,7 9, 12 rounds and 10" to 40" length filter cartridges.

Optional: CE Standard
CE-PED Certificate for Europe pressure vessel standard.








Materials of Construction
Head: 304 or 316 Stainless Steel
Shell: 304 or 316 Stainless Steel
Vent Cap: 304 or 316 Stainless Steel
Drain Plug: 304 or 316 Stainless Steel
Bottom Seat Plate: 304 or 316 Stainless Steel
Internal Components: 304 or 316 Stainless Steel
Shell O-rings: Standard: EPDM
Shell O-rings Optional: Silicone, Teflon Encapsulated Viton, Viton

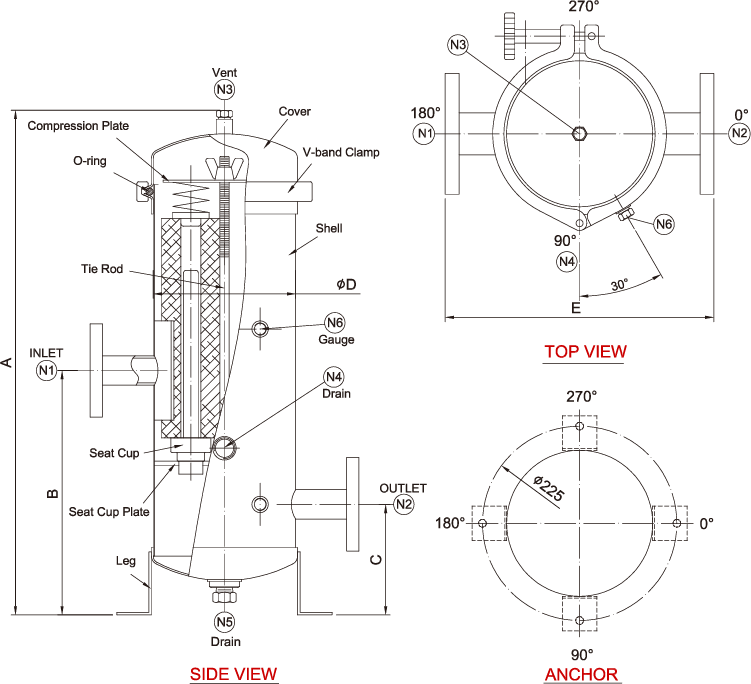

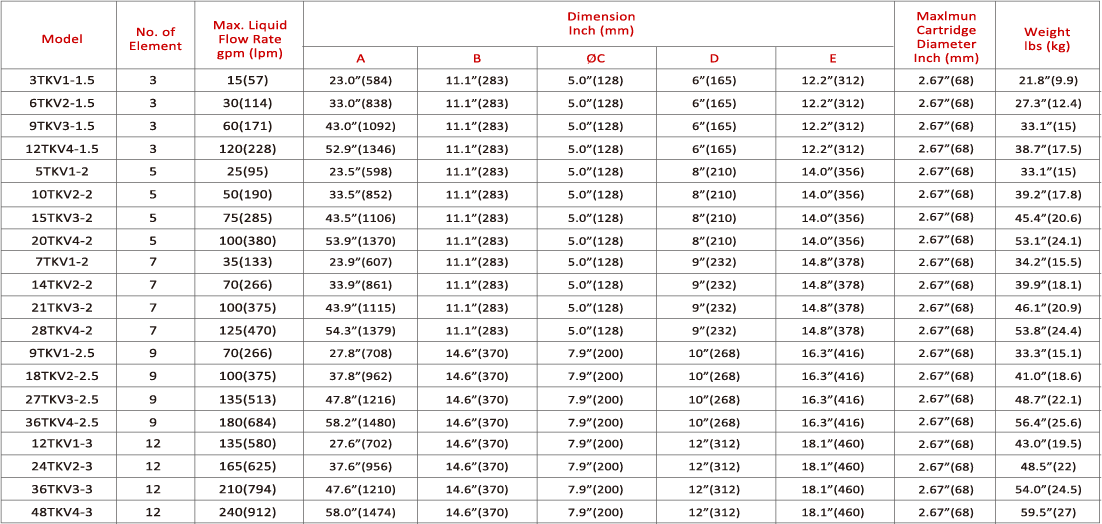

Dimensions
Inlet/ Outlet: 1.5"2", 2.5"3" NPT, ANSI Flange
Vent : 1/4" NPT
Drain: 3/4" NPT
Optional Connection: JIS, DIN Flange, PT, BSP Thread

Maximum Operating Pressure
150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
 (TKV Series housings are not recommend for Gas service)
