TKF Series

Filtrafine TKF series stainless steel multi-cartridge filter housing provides high quality for many industrial applications, such as chemical filtration, pre filtration for RO system, food and beverage system, point of use filter and so on.

The TKF series is designed with a proven swing eye-bolt closure mechanism to ensure sealing.
Model : TKF

Stainless steel 304, 316 or 316L material construction, it gives excellent resistance to corrosive for product purity.

TKF series housing is compatible with 3, 5 ,7, 9, 12,18, 22, 28 rounds and 10' to 40' length filter cartridges.

Optional:

ASME Code
ASME U/UM stamp for USA pressure vessel standard.

CE Standard
CE-PED Certificate for Europe pressure vessel standard.

GB Standard
GB certificate for China pressure vessel standard.

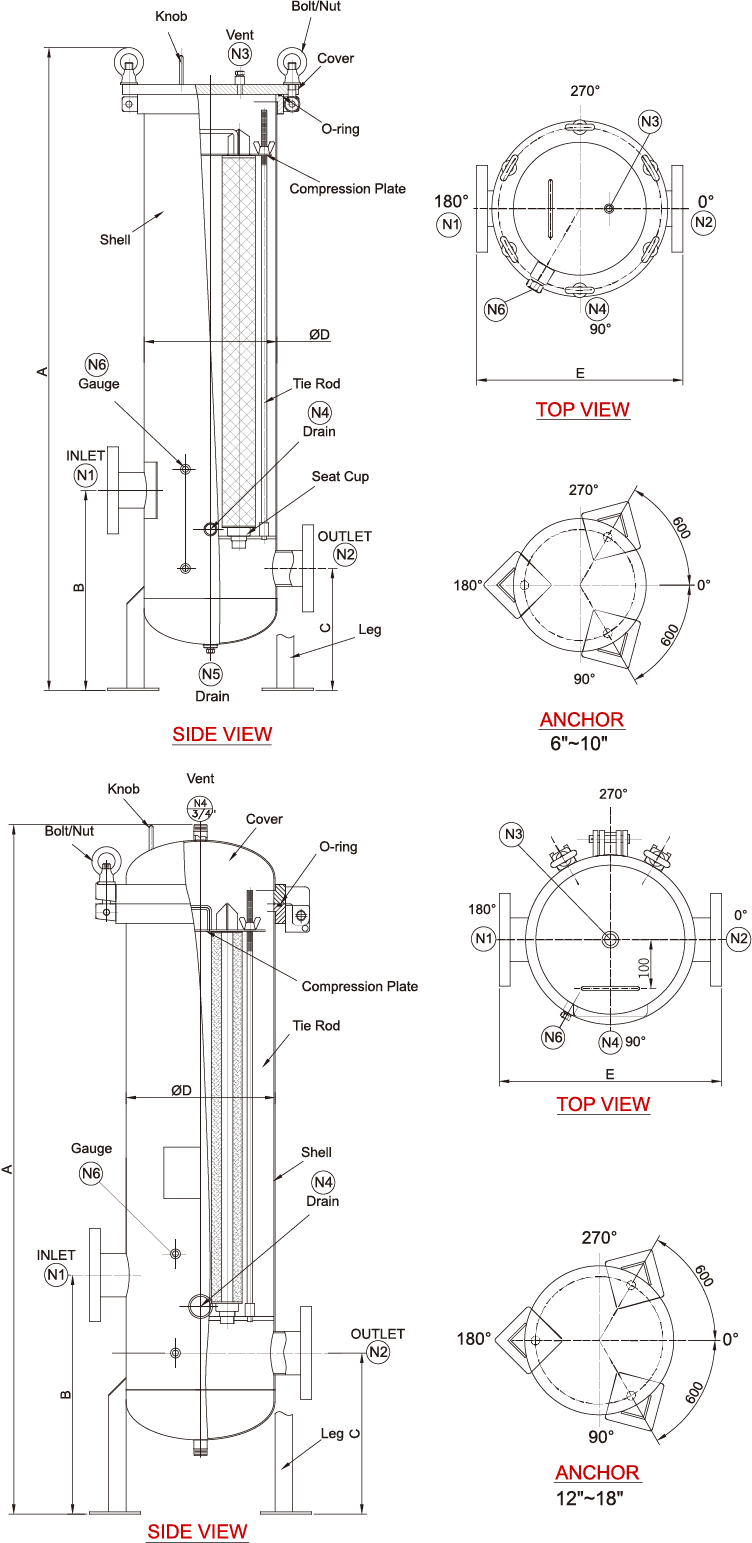

Materials of Construction
Head: 304 or 316 Stainless Steel
Shell: 304 or 316 Stainless Steel
Swing Eye Bolts: 304 or 316 Stainless Steel
Shell O-rings: Standard: EPDM
                      Optional: Silicone, Teflon Encapsulated Viton, Viton

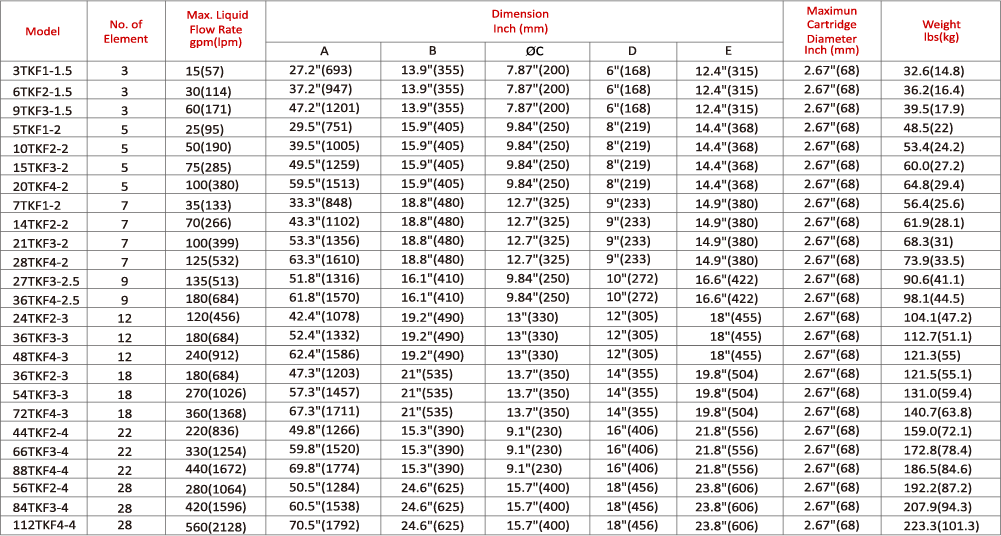

Dimensions

Inlet/ Outlet: 1.5", 2"3"4"

Vent:  10'↓ Shell" : 1/4" NPT,

            12'↑ Shell : 3/4" NPT

Drain:  10'↓ Shell" : 3/4" NPT,

             12'↑ Shell : 1 1/2" NPT

Optional Connection Type: ANSI, JIS, DIN Flange,

                                           NPT, BSP and PT Thread


Performance Specifications

Maximum Operating Pressure: 150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
