MSV Series

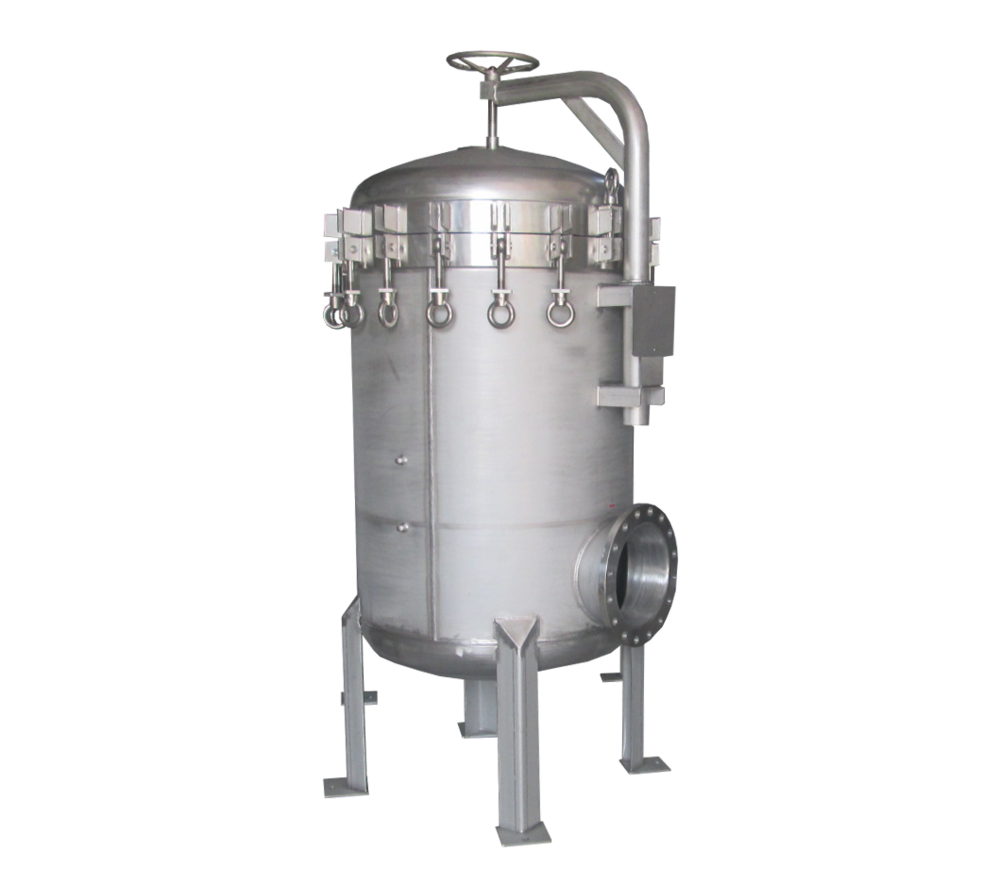

Filtrafine MSV series stainless steel multi-cartridge filter housing provides high-volume solutions for high flow applications.
The MSV series housing is compatible with 12 to 147 rounds and 10'' to 40'' length filter cartridges for various flow rate demand.
Designed with a proven swing eye-bolt closure mechanism to ensure sealing and provides user friendly davit arm assisted cover lifting mechanism.
The MSV series housing is compatible with 12 to 147 rounds and 10'' to 40'' length filter cartridges for various flow rate demand.
Designed with a proven swing eye-bolt closure mechanism to ensure sealing and provides user friendly davit arm assisted cover lifting mechanism.
Model :
MSV
Stainless steel 304, 316 or 316L material construction, and it gives excellent resistance to corrosive for product purity.
Optional:
ASME Code
ASME U/UM stamp for USA pressure vessel standard.
CE Standard
CE-PED Certificate for Europe pressure vessel standard.
GB Standard
GB certificate for China pressure vessel standard.
Materials of Construction
Head and Shell: 304 or 316 Stainless Steel
Connections: 304 or 316 Stainless Steel
Internal Components: 304 or 316 Stainless Steel
Swing Eye Bolts: 304 Stainless Steel
Shell O-rings: Standard: EPDM
Optional: Silicone, Teflon Encapsulated Viton, Viton

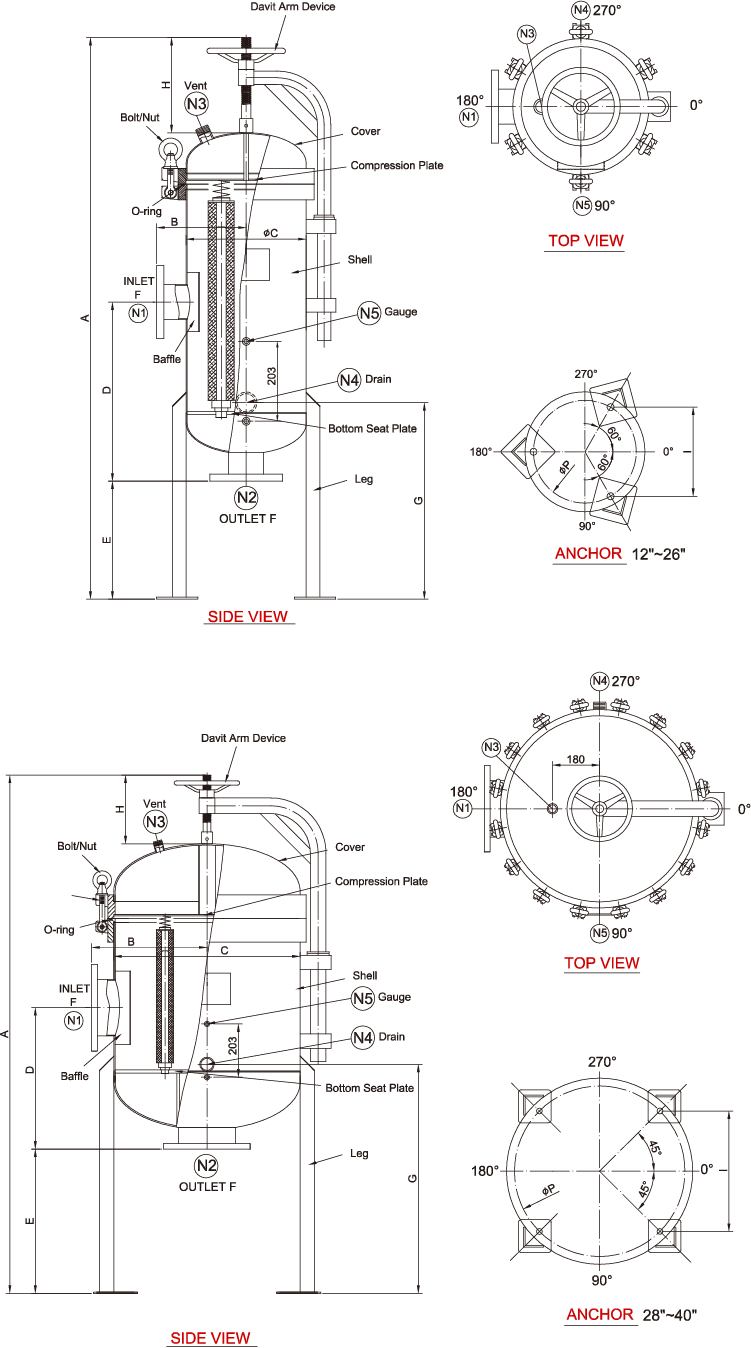

Dimensions
Inlet/ Outlet: 3", 4", 6", 8", 10", 12" ANSI Flange
Vent : 1" NPT
Drain: 1.5" NPT
Gauge: 1/4" NPT
Optional Connection: JIS, DIN Flange
Performance Specifications
Maximum Operating Pressure: 150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
