NHV High Flow Series

Filtrafine NHV series filter housing can accommodate single or multiple NHF cartridges.

Its vertical design saves more accommodation space, and its swing eye-bolt closure design makes cartridge change-out quick, and durable.

It's design pressure 100 and 150 psig can permits a wide range of applications.
Model : NHV

Customized design and higher pressure are available.

Stainless steel 304, 316, 316L material construction gives excellent resistance to corrosive for product purity.


ASME Code

ASME U/UM stamp optional for USA pressure vessel standard.

CE Standard
CE-PED Certificate for Europe pressure vessel standard.

GB Standard
GB certificate for China pressure vessel standard.



Materials of Construction
Head: 304, 316, 316L  Stainless Steel
Shell: 304, 316, 316L Stainless Steel
Internal Components: 304, 316, 316L Stainless Steel
Shell O-rings: Standard: EPDM
                       Optional: Silicone, Teflon Encapsulated Viton, Viton

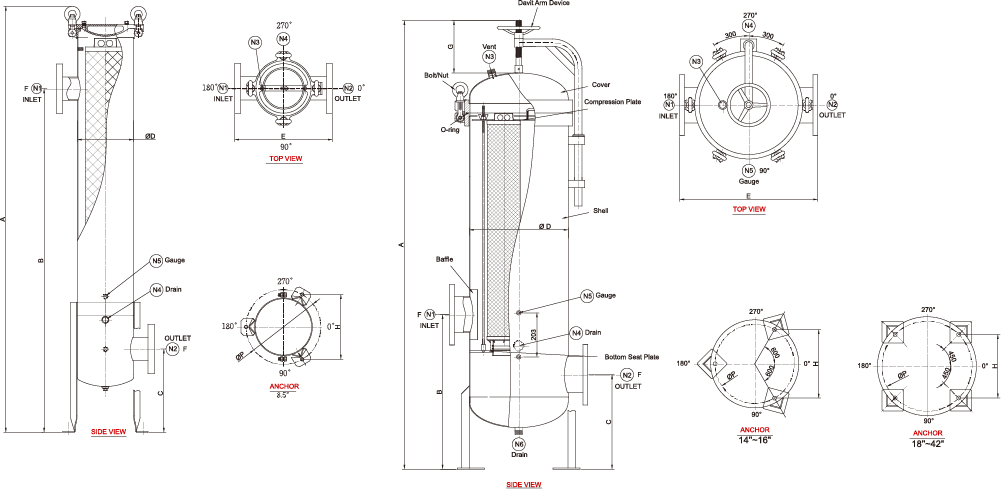

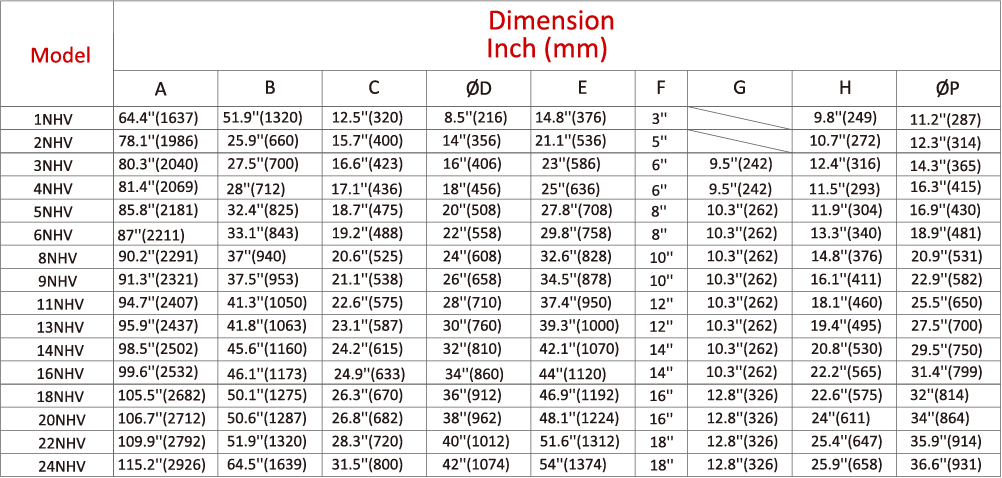

Dimensions
Inlet/ Outlet: 3" - 18" ANSI Flange
Vent : 1" NPT
Drain : 1.5" NPT
Guage: 1/4" NPT
Optional Connection: JIS, DIN Flange

Maximum Operating Pressure
150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
