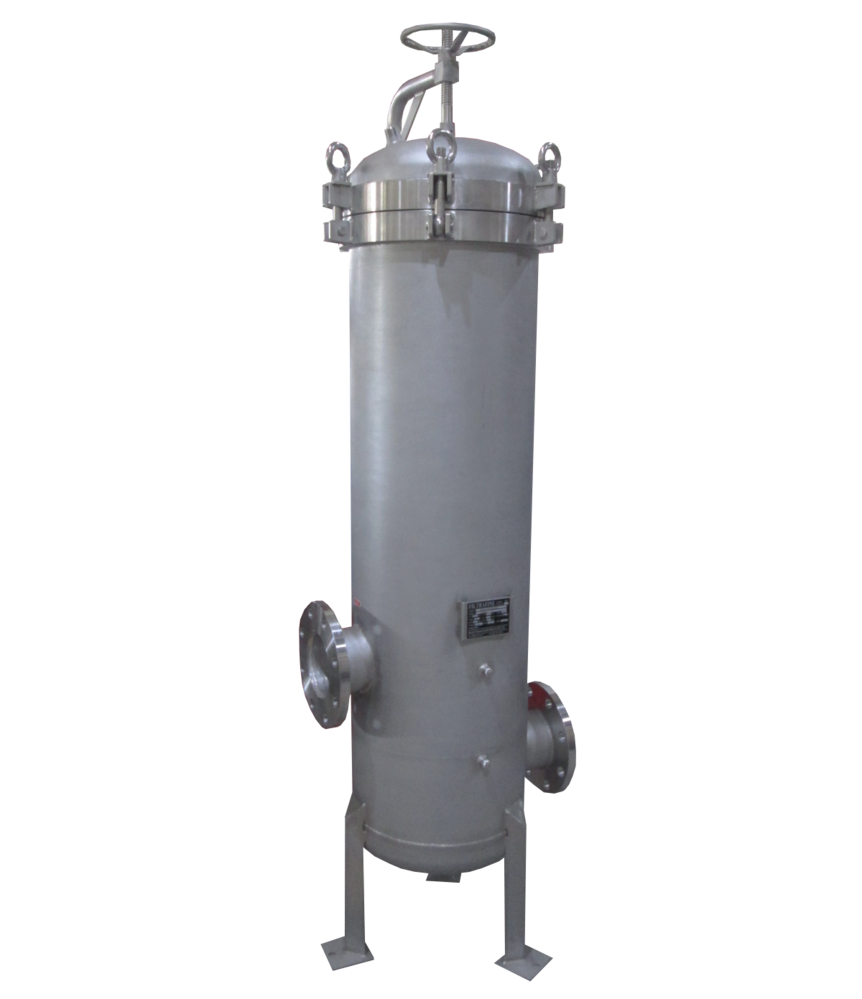

LHV High Flow Series

Filtrafine LHV series filter housing can accommodate single or multiple LHF cartridges.

Its vertical design saves more accommodation space, and its swing eye-bolt closure design makes cartridge change-out quick, and durable.

It's design pressure 100 and 150 psig can permits a wide range of applications.
Model : LHV

Customized design and higher pressure are available.


Stainless steel 304, 316, 316L material construction gives excellent resistance to corrosive for product purity.



ASME Code
ASME U/UM stamp optional for USA pressure vessel standard.

CE Standard
CE-PED Certificate for Europe pressure vessel standard.

GB Standard
GB certificate for China pressure vessel standard.




Materials of Construction

Head: 304, 316, 316L  Stainless Steel

Shell: 304, 316, 316L Stainless Steel

Internal Components: 304, 316, 316L Stainless Steel

Shell O-rings: Standard: EPDM

                       Optional: Silicone, Teflon Encapsulated Viton, Viton

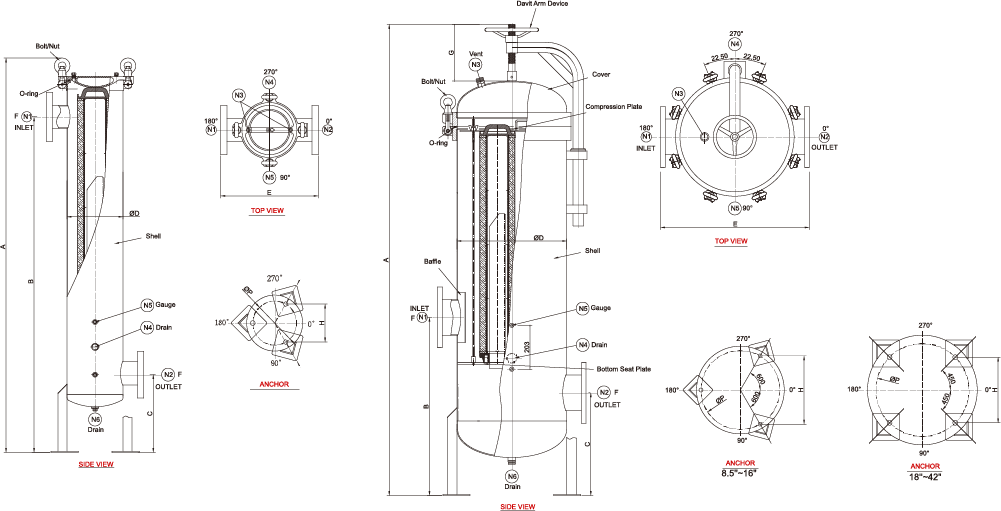

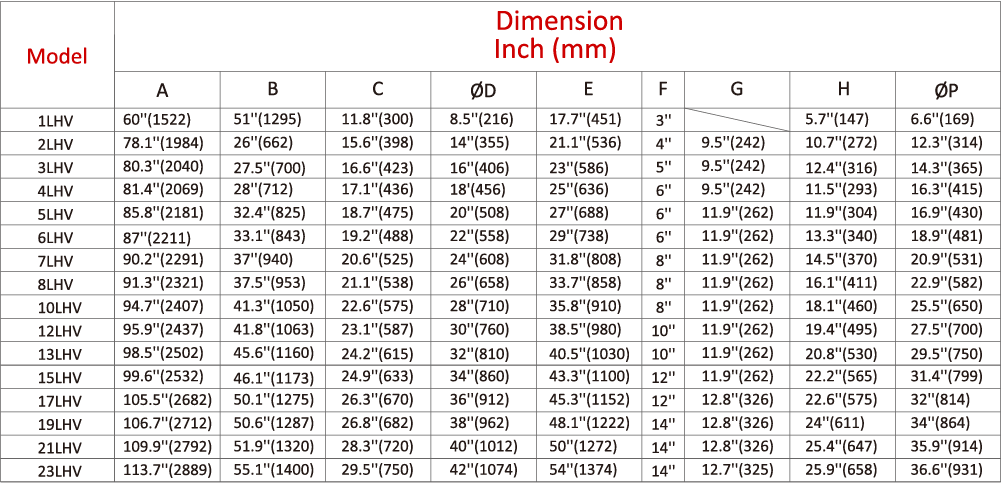

Dimensions

Inlet/ Outlet: 3" - 14" ANSI Flange

Vent : 1" NPT

Drain : 1.5" NPT

Guage: 1/4" NPT

Optional Connection: JIS, DIN Flange


Maximum Operating Pressure
150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
