MHH High Flow Series

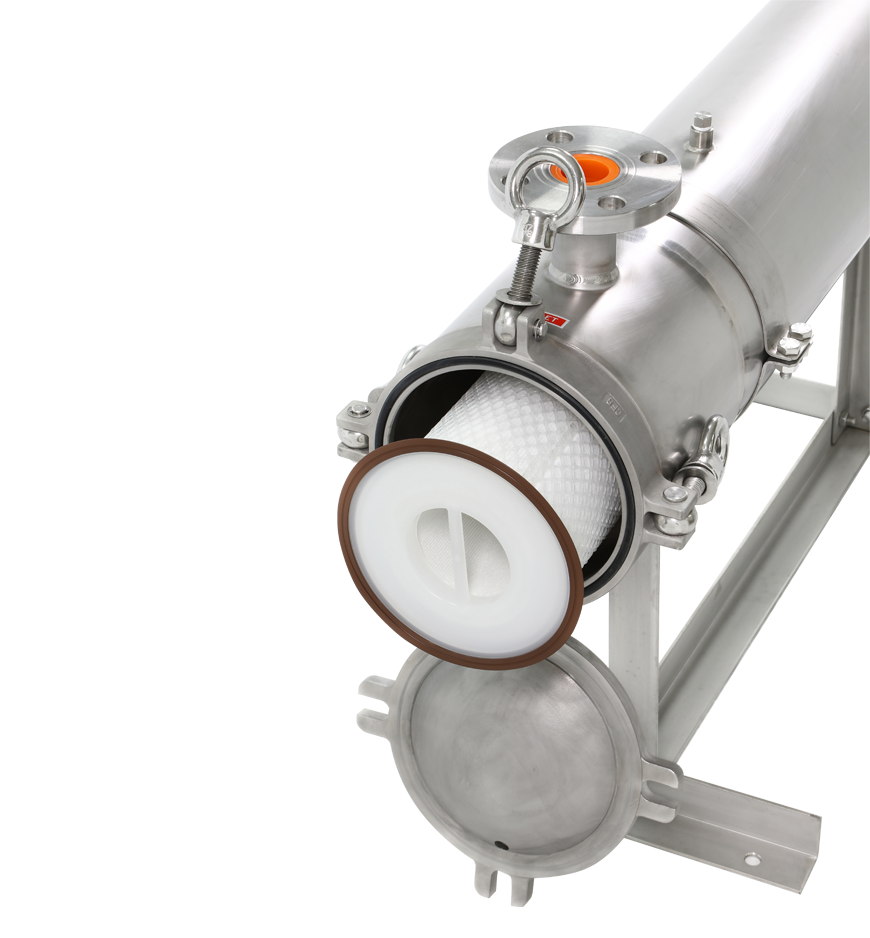

Filtrafine MHH series high flow filter housing can accommodate 1 to 19 rounds Filtrafine MHF cartridges.

Its horizontal orientation design eliminates the need for a ladder, catwalk or platform to change out filter cartridges.
Model : MHH

Its user-friendly eye-bolt with davit arm design allows quick and easy change-out.

Its inside-to-outside flow minimizes the possibility of down stream contamination during cartridge change-out.

Stainless steel 304, 316 material construction gives excellent resistance to corrosive for product purity.

ASME Code
ASME U/UM stamp optional for USA pressure vessel standard.

CE Standard
CE-PED Certificate for Europe pressure vessel standard.

GB Standard
GB certificate for China pressure vessel standard




Materials of Construction
Head: 304, 316 or 316L Stainless Steel
Shell: 304, 316 or 316L  Stainless Steel
Internal Components: 304, 316 or 316L Stainless Steel
Shell O-rings: Standard: EPDM
Shell O-rings Optional: Silicone, Teflon Encapsulated Viton, Viton

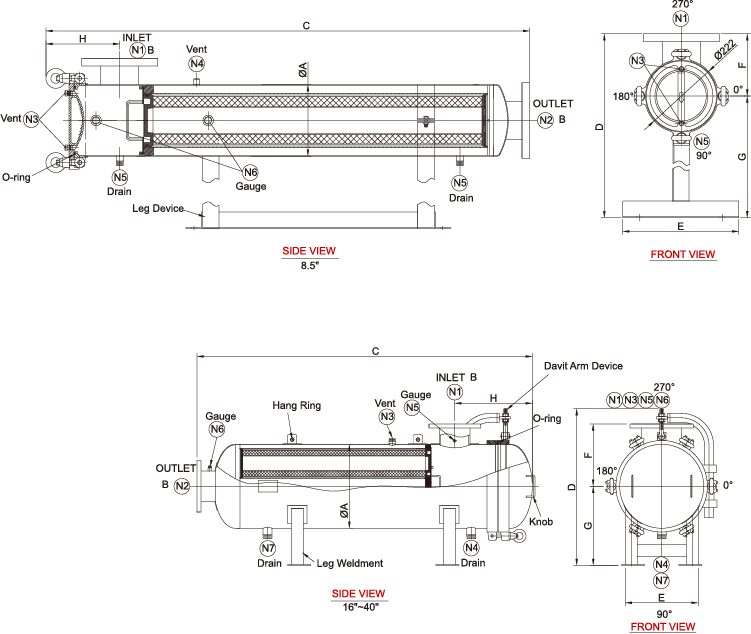

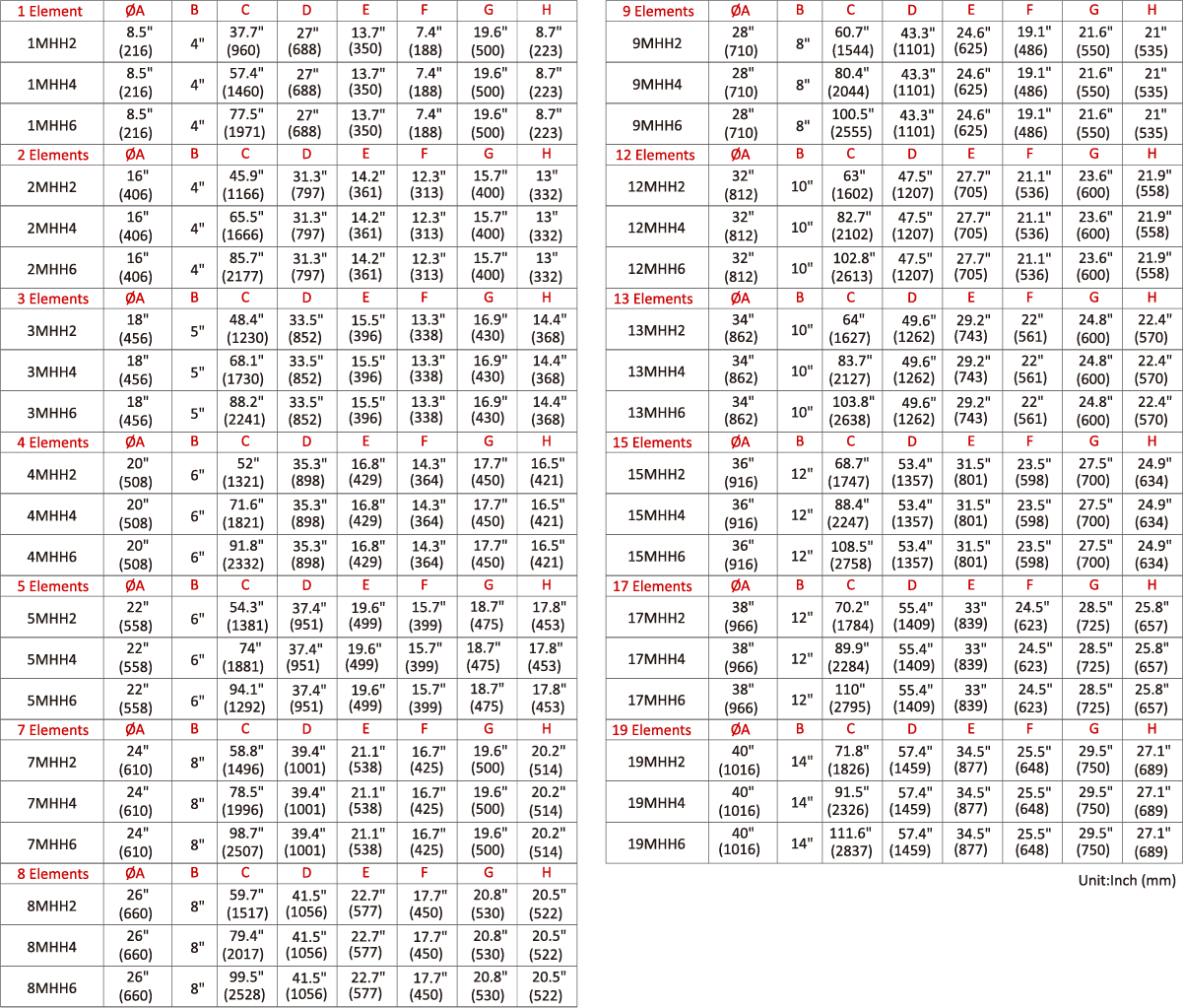

Dimensions
Inlet/ Outlet: 4" - 20" ANSI Flange
Vent : 1" NPT
Drain : 1.5" NPT
Guage: 1/4" NPT
Optional Connection: JIS, DIN Flange

Maximum Operating Pressure
150 psig (10.3 bar) @ 77°F (25°C) in Liquid Service
